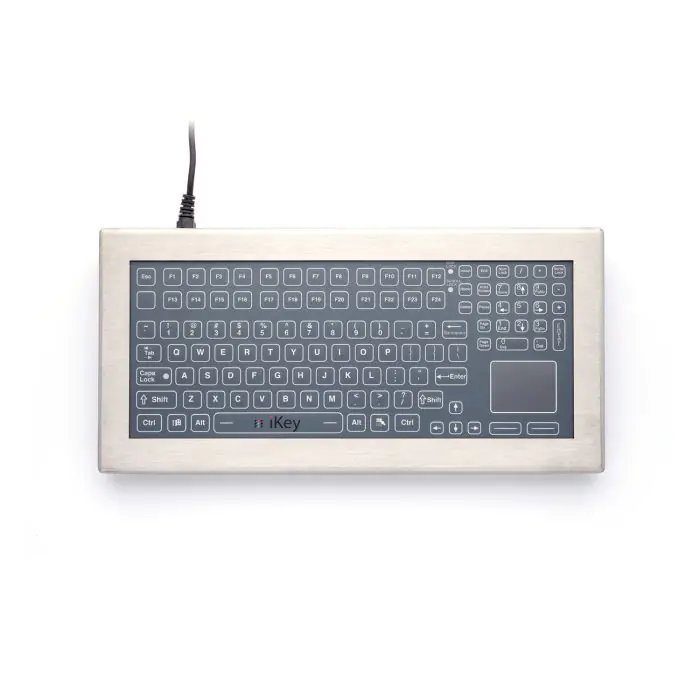

iKey DT-5K-MEM-TP Desktop Rugged Keyboard With Touchpad

The iKey DT-5K-MEM-TP is an industrial membrane keyboard built to withstand the harshest of environments. Modelled after iKey’s popular 5K product line, this keyboard is manufactured with a hard coated, textured polyester film and trampoline-mounted, snap-dome switches that provide a superior feel and actuation over a standard membrane keyboard.

The integrated Synaptic touchpad is completely sealed under an extra layer of PVC membrane, which extends the life of the product. Since this keyboard lacks the crevices found between the keys of a regular keyboard, it is extremely durable and easy to clean.

The DT-5K-MEM-TP is designed to meet NEMA 4X specifications, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.

DT-5K-MEM-TP Features

  • Hard Coated Textured Polyester Film
  • Industrial Grade Stainless Steel Case
  • Integrated Touchpad
  • 24 Function Keys + 10-Key Numeric Pad
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

No Backlight

Case Material

Stainless Steel

Certifications

IP Rated, NEMA 4X;IP67;UL60950;FCC Part 15 Class B;CE

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

16.25" x 7.88" x 1.80" (w-h-d) 412.8mm x 200.2mm x 45.7 mm

Housing Colour

Stainless Steel

Humidity

100% Humidity Resistant

Cable

LENGTH: 10 feet (3 meters) DESIGN: "Y" PS/2 Cable (providing separate keyboard and mouse connections), or Single-Cable USB

Certified European Standards

EN60079-0:2009, EN60079-11:2007 and EN60529:1991 + A1:2000

Compatibility

PS/2 KEYBOARD/TOUCHPAD: All Windows Operating Systems USB KEYBOARD/TOUCHPAD: All Windows and Macintosh OS

Entity Parameters

Ui = 6.51V, Ii = 730mA, Pi = 1.01W, Ci = 63.23, Li = 2.41uf

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

24 Keys

Hazardous Location Ratings

II 3 G Ex ic IIB T4 Ta = 60, IP65

Key Feedback

Tactile with Mechanical Snap

Key Material

Membrane

Key Switch

MATERIAL: Hardcoated Textured Polyester Film LIFE: Greater Than 2 Million Cycles TRAVEL: 0.020 in. (0.5mm) (Positively effected by Trampoline Mounting) ACTUATION FORCE: 9.88 oz +/- 1.06 oz (280g +/- 30g) FEEDBACK: Tactile with Mechanical Snap

Lifespan

>10 Million Actuations

No. Of Keys

113

Pointing Device

Touchpad

Power

PS2: KEYBOARD: 40mA@5V (Keyboard port) TOUCHPAD: 10mA@5V (Mouse port) USB: 50mA@5V (CPU port)

Product Weight

5.25 lbs +/- 0.10 lbs (2.39 kg +/- 0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

280g (+/- 20g)

Switch / Key Travel

0.020 in

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +65C (-40F to +149F) OPERATING: 0C to +60C (32F to +140F)

The iKey DT-5K-MEM-TP Desktop Rugged Keyboard With Touchpad is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the DT-5K-MEM-TP is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Medical and Healthcare, Military and Defence, Pharmaceutical

These examples highlight the versatility of the iKey DT-5K-MEM-TP Desktop Rugged Keyboard With Touchpad across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The iKey DT-5K-MEM-TP Desktop Rugged Keyboard With Touchpad comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey DT-5K-MEM-TP Desktop Rugged Keyboard With Touchpad, must be presented to RUGGED in the United Kingdom.

For more information about the iKey DT-5K-MEM-TP Desktop Rugged Keyboard With Touchpad or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey DT-5K-MEM-TP Desktop Rugged Keyboard With Touchpad or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iKey DT-5K-MEM-TP or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
