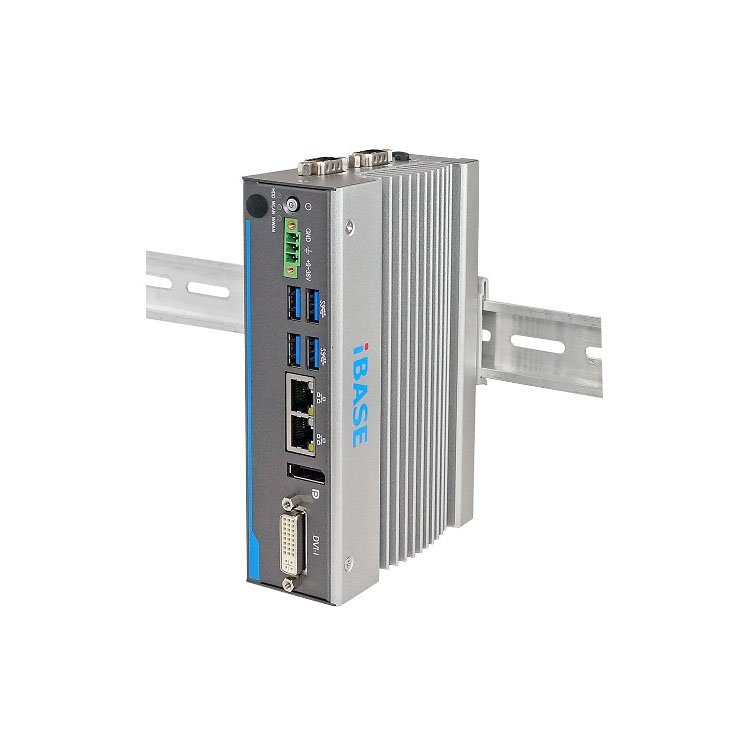

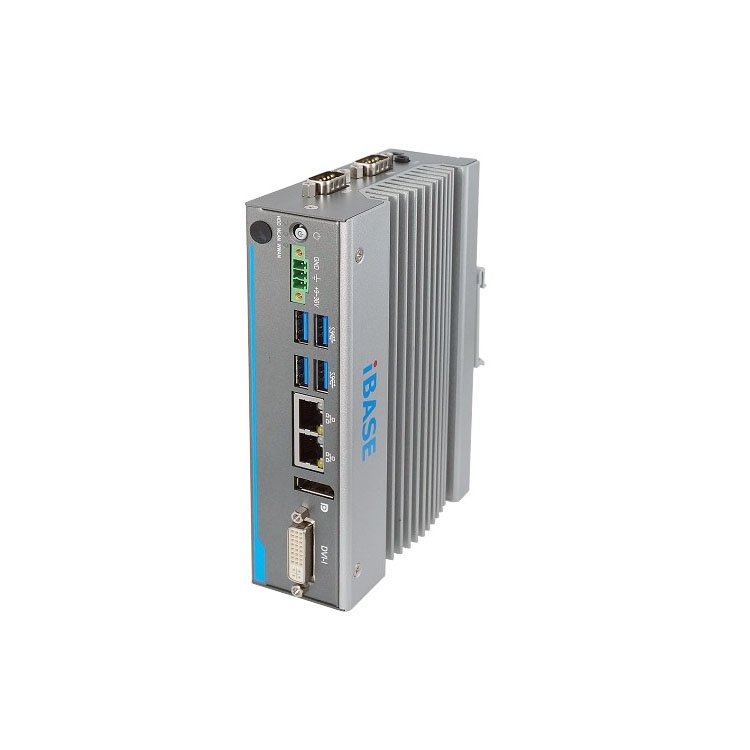

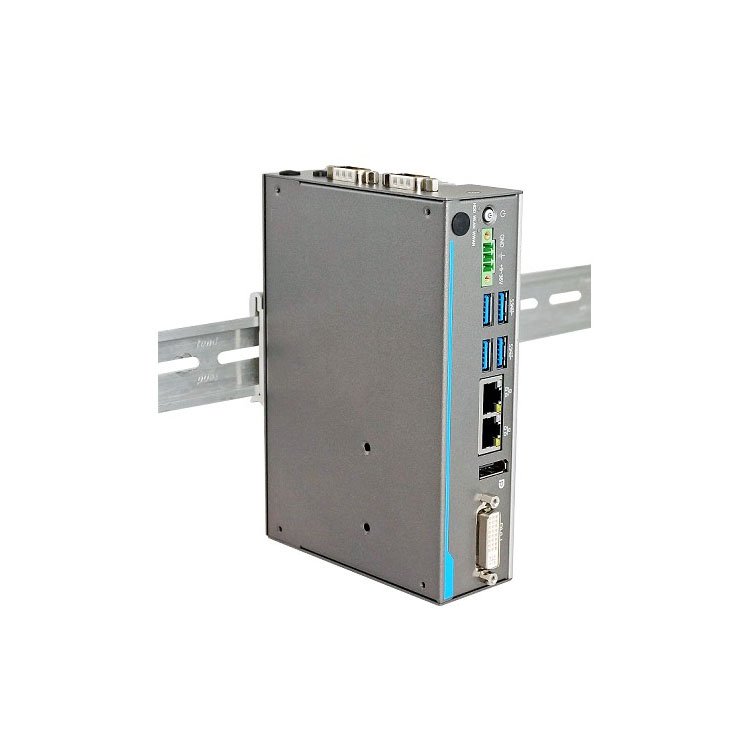

iBASE AGS100 IoT Gateway System
The Intel ® Apollo Lake-based AGS Series intelligent IoT gateway system designed for industrial control and factory automation applications can be used as an IoT gateway platform to connect devices and securely transfer data to clouds, or as a Machine-to-Machine (M2M) gateway, providing interconnection of wired or wireless devices to enhance workflow in various industrial environments.
The AGS100 can be powered by Intel ® Atom „¢ processor E3950/E3930 with extended operating temperature (-40 °C to 70 °C), Intel ® Pentium ® N4200, and Celeron ® N3350 processors (-20 °C to 60 °C). It supports 4GB DDR3L-1866 DO-DIMM, a 64GB MLC industrial-grade mSATA SSD, dual display ports (DVI-I and DisplayPort), 4x USB 3.0, 2x GbE, 2x COM, a DC-in terminal block for 9V~36V input and over/under/reverse voltage protection.
The rugged aluminum and steel chassis of the AGS100 enhances heat dissipation and features easy expansion with a full-size Mini PCI-E socket, a 2230 M.2 E-Key socket for WLAN & BT, a 3042 M.2 B-Key socket for WWAN & SSD, an mSATA socket (Mini PCI-E), and a 2242 M.2 B-Key socket for mSATA SSD. Aside from a wide-operating temperature range, it supports shock and vibration tolerance standards (IEC 60068-2-64 / MIL-STD-810G), the durability needed to withstand harsh environments. Measuring 160mm (W) x 110mm (D) x 44mm (H), it comes with both DIN-rail and wall mounting kits.
The model AGS102 has additional two RS232 ports for COM3/COM4 and GPIO 4-in & 4-out multi-purpose interface for a variety of one- or two-wired devices for I/O, security and data storage purposes.
AGS100 Features
- Supports Intel® Atom™ x7-E3950/x5-E3930 & Pentium® N4200 / Celeron® N3350 Series processors
- Over/Under/Reverse voltage protection
- Wide-range operating temperature from -40°C to 70°C
- 9~36V DC wide-range power input
- Rugged and fanless design
- DIN-rail mount & Wall mount compatibility
Request a Quote
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Case Material
Aluminum
Certifications
CE / LVD / FCC Class B
Custom Options Products
Processor,Memory,Storage
Dimensions
160mm (W) x 110mm (D) x 44mm (H), 6.3†(W) x 4.33†(D) x 1.73†(H)
Chassis Color
Silver (Aluminum)
Chipset
IB801
Construction
Aluminum & Steel
CPU Package
Intel® Atom™ x7-E3950/x5-E3930 & Pentium® N4200/ Celeron® N3350 Series processors
Expansion Slots
1x Full size Mini PCI-E socket (USB 2.0 + PCI-E + SATA)
1x 2230 M.2 E-Key socket for WLAN & BT (USB 2.0 + PCI-E)
1x 3042 M.2 B-Key socket for WWAN & SSD (USB 2.0 + SATA)
Mounting
DIN-rail mounting (DIN-rail mount kit included)
Desktop or wall mounting (wall mount kit included)
Others
Rear Panel External I/O
_x005F_x000D_- _x005F_x000D_
- 1x DVI-I + 1x DisplayPort connector _x005F_x000D_
- 4x USB 3.0 ports _x005F_x000D_
- 2x RJ45 Gigabit Ethernet port _x005F_x000D_
- 3x LED indicators (HDD, WLAN, WWAN) _x005F_x000D_
- 1x power button with green LED _x005F_x000D_
- 1x 3-pins DC-in terminal block type for 9-36V _x005F_x000D_
- 1x Antenna hole for WLAN module _x005F_x000D_
Left Panel External I/O
_x005F_x000D_- _x005F_x000D_
- 2x RS232/422/485 port for COM#1/COM#2 _x005F_x000D_
- 1x Antenna hole for WLAN module _x005F_x000D_
- 1x Speaker-out connector _x005F_x000D_
Right Panel External I/O
_x005F_x000D_- _x005F_x000D_
- 1x SIM card slot _x005F_x000D_
Shock
Operating :
30G/11 ms Duration (with MIL-STD-810G)
Non-operating :
40G/11 ms Duration (with MIL-STD-810G)
Storage
1x mSATA socket (Mini-PCI-E)
1x 2242 M.2 B-Key socket for mSATA SSD
System MainBoard
IB801
System Memory
1x 4GB DDR3L-1866 SO-DIMM, Max. 8GB
System Speed
Up to 2.5GHz
Vibration
Operatiing: 2.0 grms / 5~500Hz / random operation
(with IEC 60068-2-64)
Non-Operating: 3.0 grms / 5~500Hz / random
operation (with IEC 60068-2-64)
Humidity
5~90% @ 45°C, (non-condensing)
Operating Temperature
-40°C to 70°C (-40°F~158°F) (12W Max. CPU) -20°C to 60°C (-4°F~140°F) (6W CPU)
Ordering Info
AGS100-I50 Fanless DIN-rail system w/ Intel® Atom™processor E3950, 2x COM, 1x 4GB DDR3L memory industrial-grade, 1x 64GB MLC industrial-grade mSATA SSD, w/o power adaptor
_x005F_x000D_
AGS100-I30 Fanless DIN-rail system w/ Intel® Atom™processor E3930, 2x COM, 1x 4GB DDR3L memory industrial-grade, 1x 64GB MLC industrial-grade mSATA SSD, w/o power adaptor
AGS100-420 (MOQ) Fanless DIN-rail system w/ Intel® Pentium® processor N4200, 2x COM, 1x 4GB DDR3L memory industrial-grade, 1x 64GB MLC industrial-grade mSATA SSD, w/o power adaptor
AGS100-335 Fanless DIN-rail system w/ Intel® Celeron® processor N3350, 2x COM, 1x 4GB DDR3L memory industrial-grade, 1x 64GB MLC industrial-grade mSATA SSD, w/o power adaptor
60W power adaptor (Optional) 60W (12V@5A) power adaptor (bare wire type)
Processor
Intel
Shock
Operating : 30G/11 ms Duration (with MIL-STD-810G) Non-operating : 40G/11 ms Duration (with MIL-STD-810G)
Storage Temperature
-40°C ~ 85°C (-40°F~185°F)
The iBASE AGS100 IoT Gateway System is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the AGS100 is commonly used:
These examples highlight the versatility of the iBASE AGS100 IoT Gateway System across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial Computer, Rugged Computer fits your specific needs, please contact us.
The iBASE AGS100 IoT Gateway System comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE AGS100 IoT Gateway System, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE AGS100 IoT Gateway System or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
