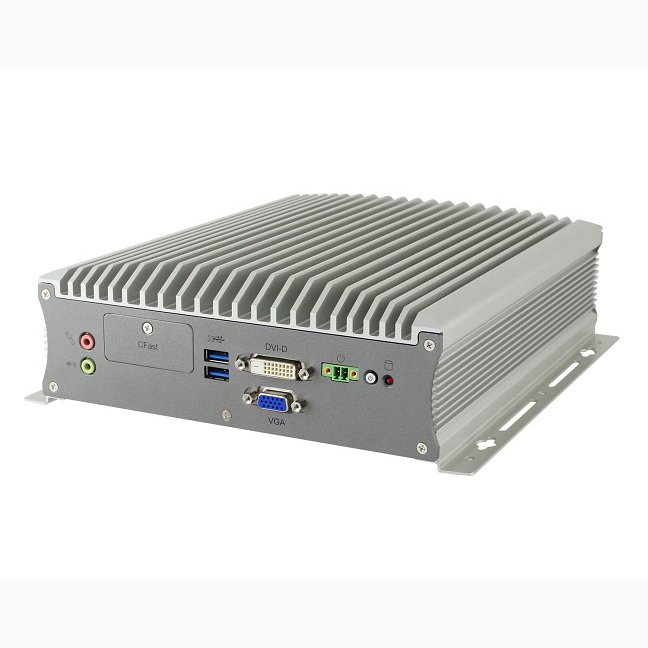

iBASE AMI210 Industrial Computer

The AMI220 is an expandable modular fanless system supporting the 7th/6th generation Intel ® Core „¢ i7/i5/i3 desktop processors designed for industrial-grade solutions in smart factory automation and retail applications.

The AMI220 is an innovative fanless and cable-free system built with an efficient passive finned heat sink and an industrial-grade motherboard that has a rich I/O interface and a power supply with over-voltage, low voltage and anti-plug protection. The AMI220 comes with modular expansion slots to accommodate diverse PCI-E, PCI or Fieldbus cards, which can be arbitrarily changed to increase system assembly flexibility and create the ideal solution according to customer specification needs. The systems are based on the Intel ® Q170 and the H110 chipsets and powered by Intel ® Core processors with speeds up to 3.4GHz. These platforms feature 8GB of DDR4-2133 system memory expandable to 32GB, triple independent displays via its DVI/VGA/DP interface and 2x Gigabit LAN with option to add a third GbE.

The rugged AMI220 series is suitable for demanding applications in harsh environments. It has an operating temperature range of -10 °C to 50 °C with enhanced passive cooling for maximum thermal performance. It also supports 12V to 24V wide-range voltage input and a cable-less design for added durability and reliability. The redundant dual SIM sockets provide a more reliable WWAN connection for critical applications. Standard features include 8x USB, 4x COM, a wall-mount kit, a 64GB industrial-grade SSD storage and a 2nd storage option for RAID (0/1) function.

AMI210 Features

  • Fanless System Supports iBase MB210 Customized Board
  • Supports 4th Generation Intel Core I7/I5/I3 Processors
  • Three Independent Display Output Capability
  • Supports 1X 2.5" SATA HDD Device (Ami210)
  • Supports 2X 2.5" SATA HDD Device (Ami210-Pe)
  • 1X Isolated RS422/485 Port (1Kv Surge Protection)
  • Wide Input Voltage 12V~24V Dc
  • Over/Under/Reverse Voltage Protection
  • ISMART, Iamt (9.0)

Request a Quote

IP Rating

Processor

Manufacturer

Country Of Manufacture

Taiwan

Certifications

CE / LVD / FCC Class B

Dimensions

210mm (W) x 265mm (D) x 77mm (H)

Chassis Color

Sliver (Aluminum)

Chipset

Intel Chipset

Construction

Aluminum & Steel

Expansion Slots

2x Mini PCI-E sockets + 1x CFast slot

Form Factor FILTER

Fanless System

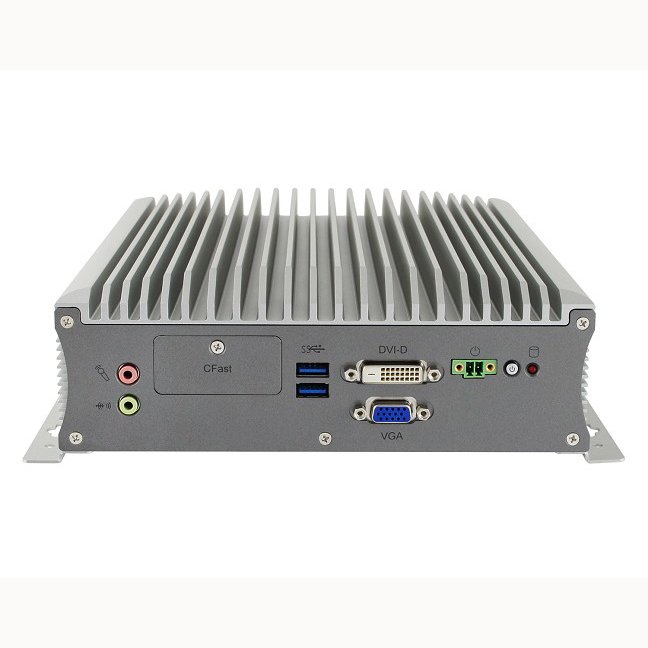

Front Panel External I/O

1x DVI-D + 1x VGA_x005F_x000D_ 1x Audio jack for MIC-in / Line-out_x005F_x000D_ 2x USB 3.0 ports (AMI210AF only)_x005F_x000D_ 2x USB 2.0 ports (AMI210EF only)_x005F_x000D_ 1x red HDD LED_x005F_x000D_ 1x power button with green LED indicator_x005F_x000D_ 1x CFast socket_x005F_x000D_ 1x 2-pins terminal block for external power button

Mounting

Desktop or wall mount (wall mount kit included)

Operating System(s)

Windows 7 & 8, Windows 10

Others

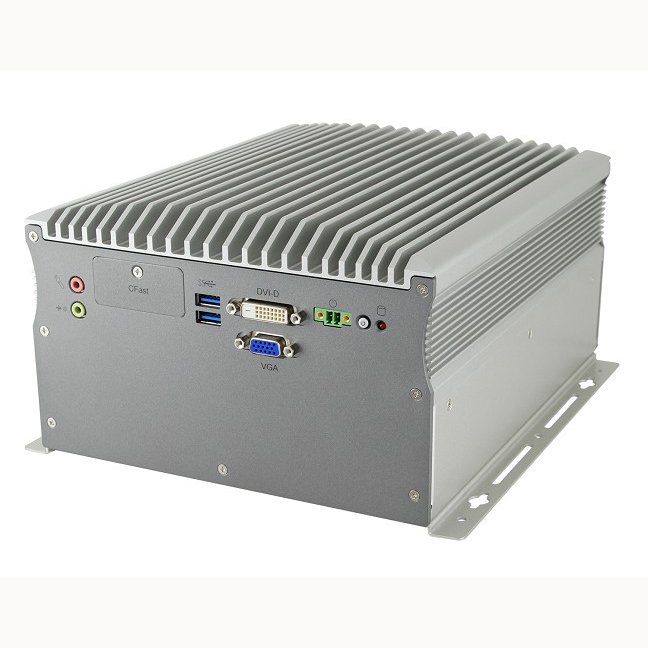

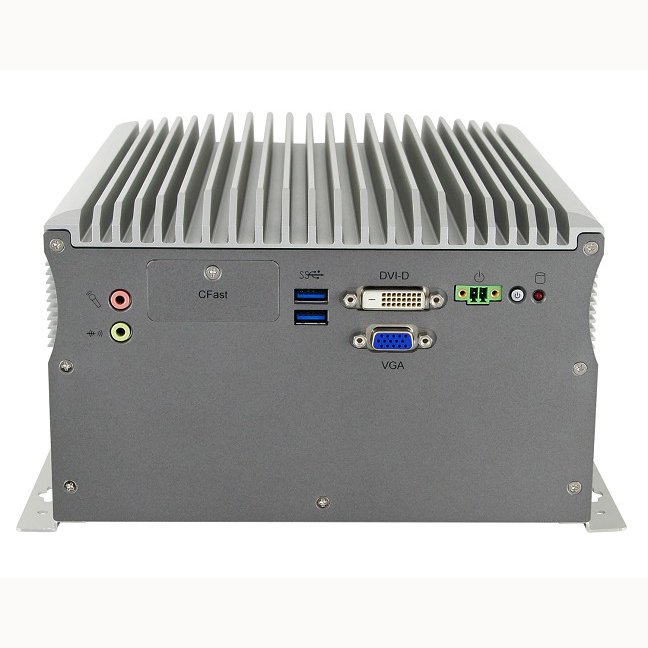

Expansion slots & I/O for optional BOX (AMI210-PE): 1x PCI-E(x8) slot_x005F_x000D_ 1x PCI-E(x1) slot_x005F_x000D_ 2x RS232 ports for COM5/COM6 (TX/RX signal only)_x005F_x000D_ 2x USB 2.0 ports

Power Supply

120W power adaptor

Rear Panel External I/O

1x RS422/485 port with isolation protection for COM#1_x005F_x000D_ 1x RS232 port for COM#2_x005F_x000D_ 2x RS232 port for COM#3/COM#4_x005F_x000D_ 1x DisplayPort + HDMI connector_x005F_x000D_ 1x RJ45 Gigabit Ethernet port + 2x USB 3.0 ports_x005F_x000D_ 1x RJ45 Gigabit Ethernet port + 2x USB 2.0 ports_x005F_x000D_ 1x 3 pins DC-in t

Storage

1x 2.5" SSD + 1x mSATA

System MainBoard

MB210AF with Intel Q87 PCH_x005F_x000D_ MB210EF with Intel H81 PCH

System Memory

2x 2GB DDR3-1600 SO-DIMM, Max. 16GB

System Speed

Up to 3.1GHz

Vibration

Non-Operating: 1.0 grms / 5~500Hz / random operation_x005F_x000D_ Operatiing: 0.25 grms / 5~500Hz / random operation

Expansion

PCI-E

Form Factor

Fanless System

Humidity

5%-90% @ 45C, (non-condensing)

Operating Temperature

#-10C to 45C (14CF~113CF) (for 45W CPU)_x005F_x000D_ -10C to 50C (14CF~122CF) (for 35W CPU) _x005F_x000D_ BI95-10C to 50C (14CF~122CF) (for 35W CPU) _x005F_x000D_ -10C to 50C (14CF~122CF) (for 35W CPU) BH106_x005F_x000D_ -10C to 50C (14CF~122CF) (for 35W CPU) BH99

Ordering Info

AMI210AF Fanless Box system with MB210AF, w/ Intel Core _x005F_x000D_ i7/i5/i3 Desktop processor, 4x COM, 2x 2GB memory, 1x 2.5タン 64GB MLC industrial-grade SSD, w/o power adaptor_x005F_x000D_ AMI210EF Fanless Box system with MB210EF, w/ Intel Core _x005F_x000D_ i7/i5/i3 Desktop processor, 4x COM, 2x 2GB memory, 1x 2.5タン 64GB MLC industrial-grade SSD, w/o power adaptor_x005F_x000D_ AMI210AF-PE Fanless Box system with MB210AF, w/ Intel Core _x005F_x000D_ i7/i5/i3 Desktop processor, 6x COM, 2x 2GB memory, 1x 2.5タン 64GB MLC industrial-grade SSD, 1x PCI-E(x8) + 1x PCI-E(x1) expansion slots, w/o power adaptor_x005F_x000D_ AMI210EF-PE Fanless Box system with MB210EF, w/ Intel Core _x005F_x000D_ i7/i5/i3 Desktop processor, 6x COM, 2x 2GB memory, 1x 2.5タン 64GB MLC industrial-grade SSD, 1x PCI-E(x8) + 1x PCI-E(x1) expansion slots, w/o power adaptor

Power Input

DC

Processor

Intel

Storage Temperature

Rating: -20C ~ 80C (-4CF~176CF)

Temperature Rating

OPERATING: 0C to +50C / STOREAGE: -20C to +60C

The iBASE AMI210 Industrial Computer is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the AMI210 is commonly used:

Industrial and Manufacturing

These examples highlight the versatility of the iBASE AMI210 Industrial Computer across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial Computer, Rugged Computer fits your specific needs, please contact us.

The iBASE AMI210 Industrial Computer comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iBASE AMI210 Industrial Computer, must be presented to RUGGED in the United Kingdom.

For more information about the iBASE AMI210 Industrial Computer or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iBASE AMI210 Industrial Computer?

If you have any questions about the iBASE AMI210 please get in touch today, our team of technical experts are ready to assist you.
