iBASE AMI311-970 Embedded System
The AMI311-970 fanless system houses an MI970 Mini-ITX motherboard that supporting 3rd Generation Intel ® Core „¢ processors.

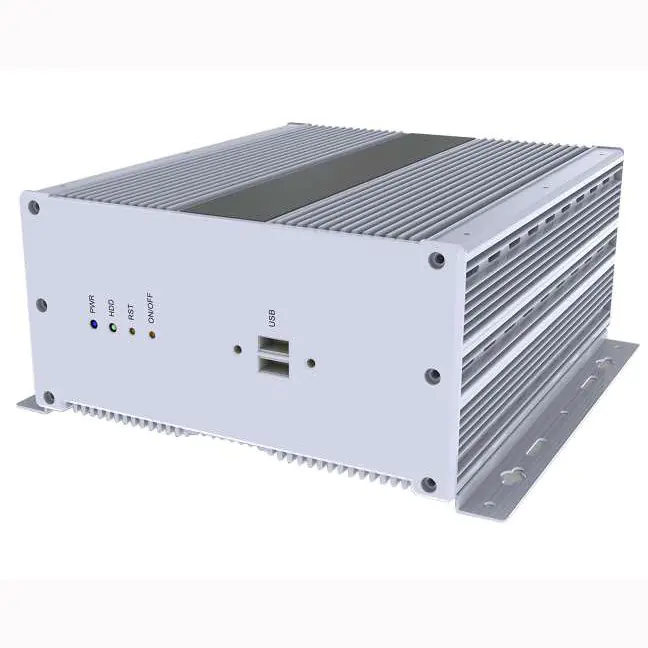

The silver-colored AMI311-970 functions as a desktop or wall mount system, designed with LEDs for power and HDD, rest and power buttons and two USB 2.0 ports in the front panel. Its 231mm by 199mm by 97mm dimensions packs a variety connectors and interface for a serial port, DVI-I+DVI-D, dual USB 3.0+ DisplayPort, dual USB2.0+RJ45, audio, 2.5 removable HDD tray and a PCI-E(x16) slots for graphics expansion capability.
Every AMI311-970 comes standard with 8GB of DDR3 SO-DIMM system memory, a 320GB hard disk drive and a 120W power adaptor. It is ideal for environments and applications where desktop space is at a premium such as those in factory automation, multimedia, medical and digital signage. The fanless design ensures silent and reliable operation of the system.
AMI311-970 Features
- Supports 3rd Generation Intel Core I Mobile Processors
- ISMART - For Eup/Erp Power Saving, Auto-Scheduler and Power Resume
- 1X Removable 2.5" Storage Device
- 1X PCI-E(X16) Graphics Card Expansion Slot
- Available In Black Color
- Fanless Operation
- Wall Mount Kit Included
- Over/Under/Reverse Voltage Protection
- ISMART, Iamt (9.0)
Request a Quote
Product Type
Format
IP Rating
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE, FCC
Dimensions
231mm(L) x 199mm(W) x 97.75mm(H)
Chassis Color
Silver (Aluminum)
Construction
Aluminum
Expansion Slots
2x Mini PCI-E sockets + 1x CFast slot
Form Factor FILTER
Fanless System
Front Panel External I/O
Power LED, HDD LED, Power button, Reset button, 2x USB2.0 ports
Mounting
Desktop or wall mount (wall mount kit included)
Others
Expansion slots & I/O for optional BOX (AMI210-PE): 1x PCI-E(x8) slot_x005F_x000D_ 1x PCI-E(x1) slot_x005F_x000D_ 2x RS232 ports for COM5/COM6 (TX/RX signal only)_x005F_x000D_ 2x USB 2.0 ports
Power Supply
120W power adaptor

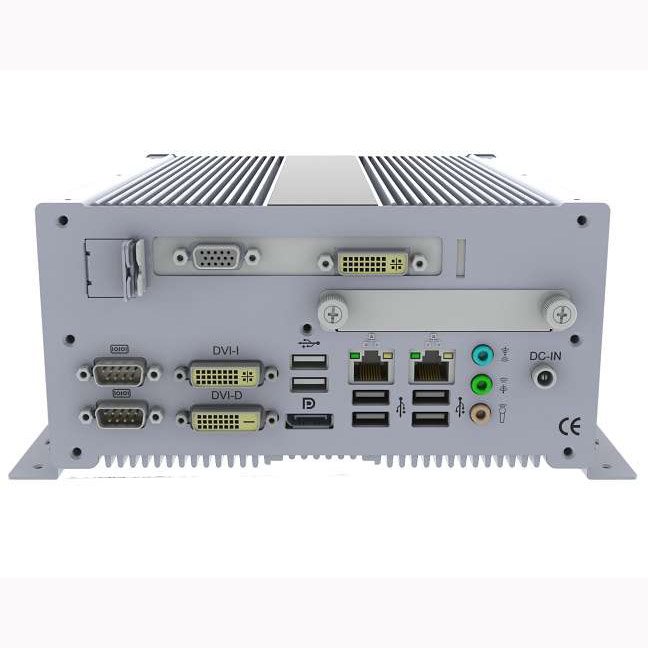

Rear Panel External I/O
1x Dual COM port_x005F_x000D_ 1x DVI-I+DVI-D connector_x005F_x000D_ 1x Dual USB3.0+DisplayPort connector_x005F_x000D_ 2x Dual USB2.0 + RJ45 connector_x005F_x000D_ 1x Audio jack (3 port)_x005F_x000D_ 1x 2.5ï¾€ï¾ Removable HDD Tray_x005F_x000D_ 1x PCI-E (x16) expansion slot
Storage
1x 2.5ï¾€ï¾ storage device ( SATA II or SATAIII interface), 100GB industrial-grade HDD
System MainBoard
MI970F
System Memory
2x DDR3 SO-DIMM, Max 16GB
System Speed
Up to 2.8GHz
Vibration
SSD: 5 grms / 5~500Hz / random operation HDD: 0.25 grms / 5~500Hz / random operation
Expansion
PCI-E
Form Factor
Fanless System
Humidity
5%-90% @ 45C, (non-condensing)
Operating Temperature
0C~ 45C (32CF~113CF)
Ordering Info
AMI311-970-3610ME Aluminum System, Fanless Design w/ Intel Corei5-3610ME(2.7GHz), 8GB DDR3 SO-DIMM, 2.5ï¾€ï¾ 100GB industrial-grade HDD, 120W power adaptor_x005F_x000D_ AMI311-970-3120ME Aluminum System, Fanless Design w/ Intel Corei3-3120ME(2.4GHz), 8GB DDR3 SO-DIMM, 2.5ï¾€ï¾ 100GB industrial-grade HDD, 120W power adaptor_x005F_x000D_ AMI311-970-1020E Aluminum System, Fanless Design w/ Intel Celeron 1020E(2.2GHz), 8GB DDR3 SO-DIMM, 2.5ï¾€ï¾ 100GB industrial-grade HDD, 120W power adaptor
Power Input
DC
Processor
Intel
Storage Temperature
Rating: -20C ~ 80C (-4CF~176CF)
Temperature Rating
OPERATING: 0C to +50C / STOREAGE: -20C to +60C
The iBASE AMI311-970 Embedded System is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the AMI311-970 is commonly used:
These examples highlight the versatility of the iBASE AMI311-970 Embedded System across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial Motherboard, Motherboard, Rugged Motherboard fits your specific needs, please contact us.
The iBASE AMI311-970 Embedded System comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE AMI311-970 Embedded System, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE AMI311-970 Embedded System or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE AMI311-970 Embedded System?
If you have any questions about the iBASE AMI311-970 please get in touch today, our team of technical experts are ready to assist you.
