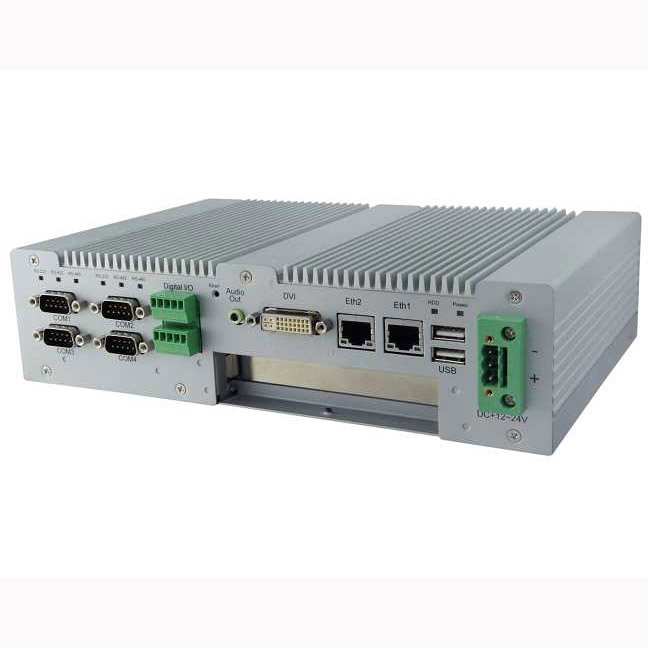

iBASE AMS100-807 Industrial Computer
The AMS100-807 is a Fanless embedded system featuring the Intel Atom Processor D2550 and Intel NM10 chipset. This platform along with the Atom D2550 1.86GHz processor that has two CPU cores, 1MB L2 cache, and manufactured on 32nm process, allows higher performance and lower power consumption. Both Hyper-Threading technology and higher clocked on-chip graphics controller are supported. The on-die graphics core supports two display interfaces including a DVI-I and a 24-bit single channel LVDS connection.
AMS100-807 Features
- Onboard Intel Atom Processor D2550, 1.86 GHz
- Front Access Expansion Slot Opening
- RS-232 / 422 / 485 Function Preset With Bios
- +12V ~ +24V With 3-Pin Terminal Block Or Cylindrical DC Input
- 1X Cfast, 1X Mini PCI-E, 6X USB 2.0, 2X GBE Ports
- 1X 2.5" HDD Drive Bay
- Wall Mount Kit Included
- Over/Under/Reverse Voltage Protection
- ISMART, Iamt (9.0)
Request a Quote
Product Type
Format
IP Rating
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE, FCC, CCC, KTI-CB
Dimensions
250mm(W) x 64mm(H) x 162mm(D)
Chassis Color
Silver (Aluminum)
Construction
Aluminum
Expansion Slots
1x PCI or 1x PCI -E(x16) (x1 signal) 1x Mini PCI-E
Form Factor FILTER
Fanless System
Front Panel External I/O
Power LED, HDD LED, Power button, Reset button, 2x USB2.0 ports
LED
Power / HDD activity RS232 / RS422 / RS485 indicator
Mounting
Desktop or wall mount (wall mount kit included)
Network
2x Realtek 8111E-VL GbE controller
Others
Expansion slots & I/O for optional BOX (AMI210-PE): 1x PCI-E(x8) slot 1x PCI-E(x1) slot 2x RS232 ports for COM5/COM6 (TX/RX signal only) 2x USB 2.0 ports
Power Supply
+12V~+24V DC-In terminal block
Rear Panel External I/O
1x Dual COM port 1x DVI-I+DVI-D connector 1x Dual USB3.0+DisplayPort connector 2x Dual USB2.0 + RJ45 connector 1x Audio jack (3 port) 1x 2.5ï¾€ï¾ Removable HDD Tray 1x PCI-E (x16) expansion slot
serial IO
COM1~6 COM7~8 (optional)
Storage
1x 2.5ï¾€ï¾ HDD drive bay, 1x CFast socket
System MainBoard
MI970F
System Memory
1x DDR3 non-ECC SODIMM, 800 MHz~1033 MHz, up to 4GB
System Speed
1.86 GHz
USB
2x USB 2.0 ports on front panel 6x USB 2.0 ports on rear panel (AMS100-807-GT) 4x USB ports on rear panel (AMS100-807-PCI / PCIE)
VGA
CPU built-in graphics core 1x DVI-I, 1x 24-bit single channel LVDS
Vibration
SSD: 5 grms / 5~500Hz / random operation HDD: 0.25 grms / 5~500Hz / random operation
Expansion
PCI-E
Form Factor
Fanless System
Humidity
5%-90% @ 45C, (non-condensing)
Operating Temperature
0C~ 45C (32CF~113CF)
Ordering Info
AMS100-807-PCI-M Fanless system, NM10+D2550 1.86 GHz, Dual GbE LAN, PCI slot, barebone AMS100-807-PCIE-M Fanless system, NM10+D2550 1.86 GHz, Dual GbE LAN, PCI-E slot, barebone AMS100-807-GT Fanless system, NM10+D2550 1.86 GHz, Dual GbE LAN, PCI slot, Power switch, barebone Power Adaptor 60 watts DC +12V, bare wire for terminal block connector IB807 Intel Atom D2550, NM10, Realtek 2x GbE, CFast socket, Mini PCI-E, +12V ~ +24V DC Input IP807 PCI riser card for IB807 IP808 PCI-E riser card for IB807
Power Input
DC
Processor
Intel
Storage Temperature
-20C ~ 70C (-4CF~158CF)
Temperature Rating
OPERATING: 0C to +50C / STOREAGE: -20C to +60C
