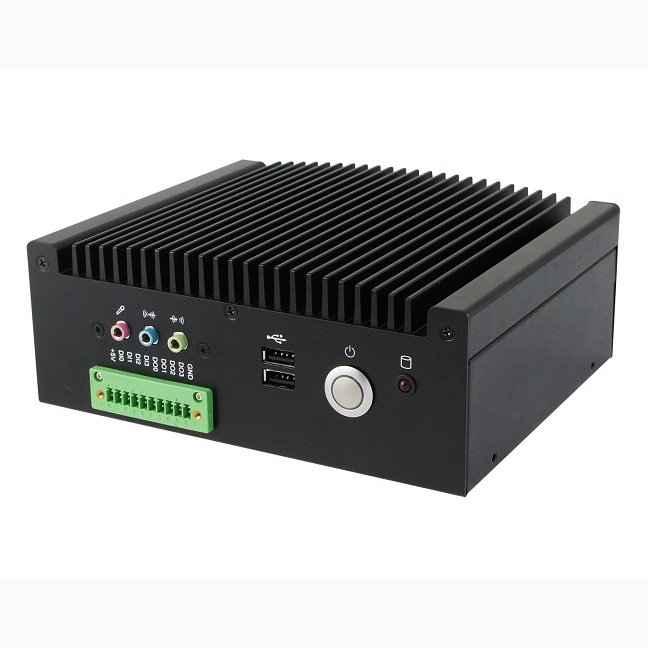

iBASE ASB200-915 Industrial Computer
ASB200-915 Embedded Computer, Slim Fanless Type System for IBASE IB915 3.5 Disk-Size SBC
ASB200-915 Features
- Fanless System Supports Ibase Ib915 3.5-Inch Disk-Size Sbc
- Onboard 6th Generation Intel Core U-Series Processor
- ISMART- For Auto-Scheduler and Power Resume
- Supports 1X Mini PCI-E (Full-Size)
- Supports 1X 2.5" SATA HDD Device
- 1X USB 3.1 Port Type-C, 4X USB 3.0 Ports
- Wall Mount Kit Included
- 12V~24V DC Wide-Range Power Input
Request a Quote
Product Type
Format
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE / LVD / FCC Class B
Dimensions
180mm(W) x 150mm(D) x 66mm(H)
Chassis Color
Black
Construction
Aluminum & Steel
Form Factor FILTER
Fanless System

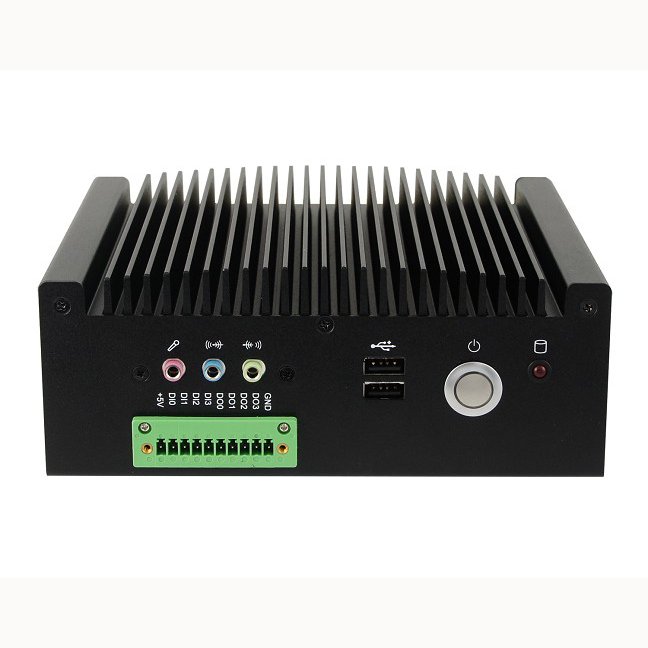

Front Panel External I/O
1x Power button 2x USB2.0 1x Audio Jack for Line-out / Line-in / MIC-in 1x HDD LED
Mounting
Desktop or wall mount (wall mount kit included) VESA mount (option)
Power Supply
Optional 60W power adaptor

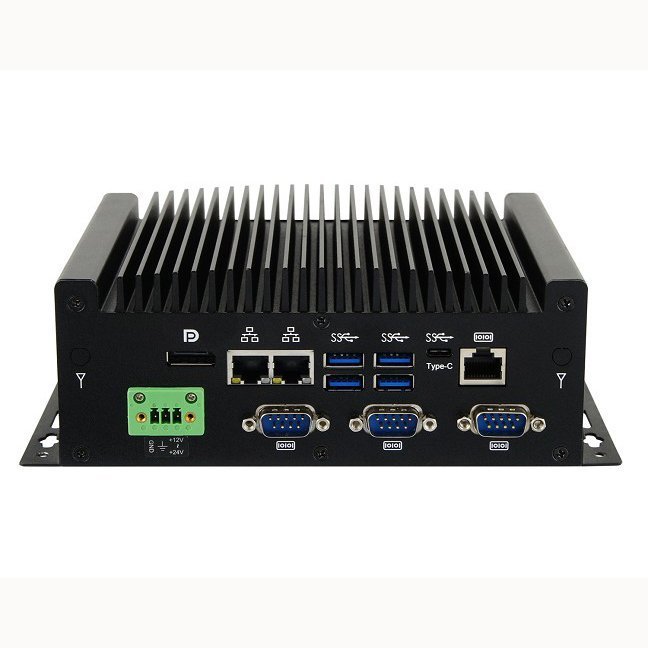

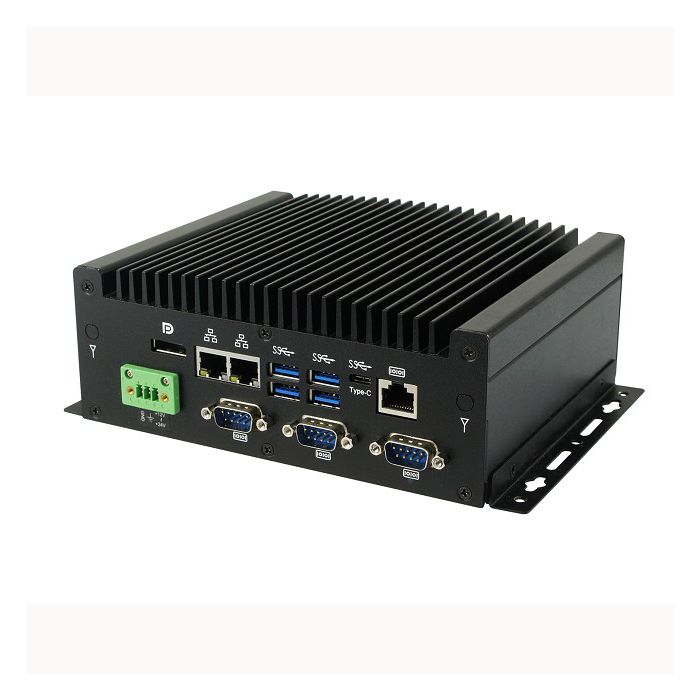

Rear Panel External I/O
1x COM thru RJ45 connector (RS-232/422/485) 3x COM (RS232) 4x USB 3.0 ports 1x USB 3.1 port type-C 1x DisplayPort 2x RJ-45 GbE connector 1x 12V~24V DC-in (terminal block type)
Shock
Operating : 20G / 11ms Non-operating : 40G / 11ms
Storage
1x 2.5" HDD or SSD
System MainBoard
IB915AF-6600 / IB915AF-6300 / IB915AF-6100
System Memory
2x 2GB DDR3L-1600 SO-DIMM Memory, Max.16GB
System Speed
2.6GHz / 2.4GHz / 2.3GHz
Vibration
Operating : 0.25Grms / 5~500Hz Non-operating : 1Grms / 5~500Hz
Expansion
PCI-E
Form Factor
Fanless System
Humidity
5%-90% @ 45C, (non-condensing)
Operating Temperature
0C~45C (32CF~113CF) (With HDD) -10C~60C (14CF~140CF) (With SSD)
Ordering Info
ASB200-915-6600 Fanless chassis withIB915AF-6600, Intel i7-6600U 2.6GHz CPU, 4x COM, 2x 2GB DDR3L memory, 2.5ï¾€ï¾ 320GB SATA HDD (w/o 60W power adaptor and VESA mount bracket) ASB200-915-6300 Fanless chassis withIB915AF-6300, Intel i5-6300U 2.4GHz CPU, 4x COM, 2x 2GB DDR3L memory, 2.5ï¾€ï¾ 320GB SATA HDD (w/o 60W power adaptor and VESA mount bracket) ASB200-915-6300 Fanless chassis with with IB915F-6100, Intel i3-6100U 2.3GHz CPU, 4x COM, 2x 2GB DDR3L memory, 2.5ï¾€ï¾ 320GB SATA HDD (w/o 60W power adaptor and VESA mount bracket)
Power Input
DC
Storage Temperature
-20C ~ 80C (-4CF~176CF)
The iBASE ASB200-915 Industrial Computer is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the ASB200-915 is commonly used:
These examples highlight the versatility of the iBASE ASB200-915 Industrial Computer across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial Computer, Rugged Computer fits your specific needs, please contact us.
The iBASE ASB200-915 Industrial Computer comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE ASB200-915 Industrial Computer, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE ASB200-915 Industrial Computer or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE ASB200-915 Industrial Computer?
If you have any questions about the iBASE ASB200-915 please get in touch today, our team of technical experts are ready to assist you.
