iBASE ASTUT-152-RE1S Panel PC
15″ Waterproof IP65 All-in-one Panel PC with Riser Card Expansion
ASTUT-152-RE1S Features
- Intel Core I5-4402E (Quad-Core @ 1.6GHz) Processor
- Resistive Touch Screen
- One PCIe 16X Expansion Slot
- Wide-Range 12V~24V DC Power Input
- IP65 Waterproof Front Panel Protection
Request a Quote
Product Type
Format
IP Rating
Operating System
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Dimensions
410 x 310 x 84
Humidity
10-90% Humidity Resistant (non-condensing)
Operating System
Windows
Operating Temperature
0C~ 50C
Ordering Info
ASTUT-152-RE1S 15" industrial Panel PC with MI980VF, Intel Core i5-4402E, DDR3 SO-DIMM 4GB, with 500G HDD, resistive touch, w/o adaptor Power adaptor AC 90~240V input, 12V DC output 84W power adaptor IBASE P/N: A005PS084W0050000P
Audio
MIC in/ Line out / Line in
Backlight Lifetime(hrs)
50000
Construction
Black SGCC front bezel and black steel back cover with aluminum heat-sink
Contrast
33.334027777778
Digital I/O
None
Display Interface
1x DVI-I, 1x DVI-D, 1x DP
Display Type
15" TFT-LCD
Expansion Slot
1x PCIe 16x
HDD
1x 2.5" SATA2
Interface
USB
Keyboard/Mouse
None
LAN
2x GbE LAN RJ-45
Light Transmission (%)
80
Luminance (cd/m2)
500
Max. Color
16.2M
Max. Resolution
1024 x 768
Membrane Control
None
Memory
2x DDR3 1600 SO-DIMM, 8GB each Max.16GB total, Default 4GB (4GBx1)
Mounting
Panel Mount, VESA 75 x 75mm / 100 x 100mm
Mounting Type Filter
VESA, Panel Mount
Onboard Expansion Bus
1x Mini PCI-E half/full size
Operating System Support
Windows Embedded Standard 7, Windows 7 Pro for Embedded
Power
1x 3pin DC power connector 1x Power on/off switch
Power Input
12V~24V DC input
Processor, Chipset
Intel Core i5-4402E (Quad-Core @ 1.6 GHz)
Removable Slot
1x 2.5" SATA HDD easy accessible, default 320G HDD
Serial/Parallel
1x DB9 RS-232/422/485 COM, 1x DB9 RS-232 COM2
Touch Type
Resistive touch
Touch Type Filter
Resistive Touch
USB
2x USB 2.0, 4x USB 3.0
View Angle (H/V)
160ï¾°/160ï¾°
Storage Temperature
-20C~60C
The iBASE ASTUT-152-RE1S Panel PC is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the ASTUT-152-RE1S is commonly used:
These examples highlight the versatility of the iBASE ASTUT-152-RE1S Panel PC across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Panel PC, Rugged Panel PC fits your specific needs, please contact us.
The iBASE ASTUT-152-RE1S Panel PC comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE ASTUT-152-RE1S Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE ASTUT-152-RE1S Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE ASTUT-152-RE1S Panel PC or require a custom solution?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iBASE ASTUT-152-RE1S or need a custom Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
Alternative Products
Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.
Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.
Browse through our related products and find the perfect match that complements your choice seamlessly.

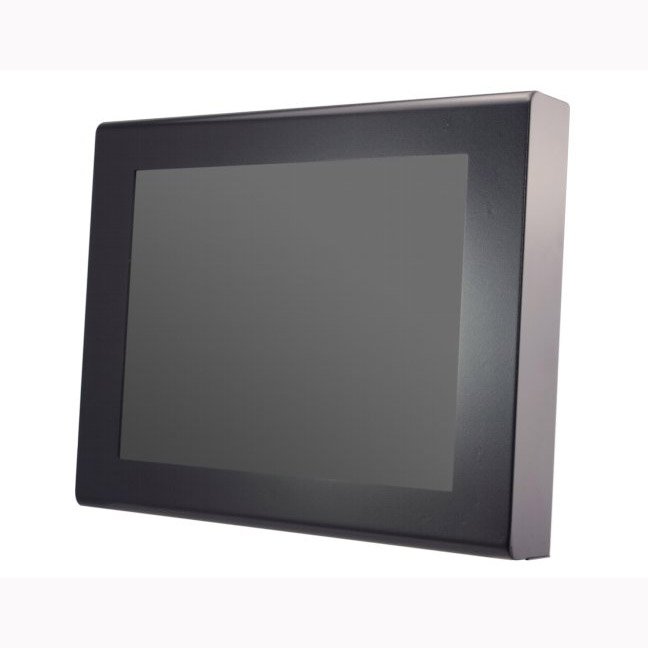

IPPC1501-RE

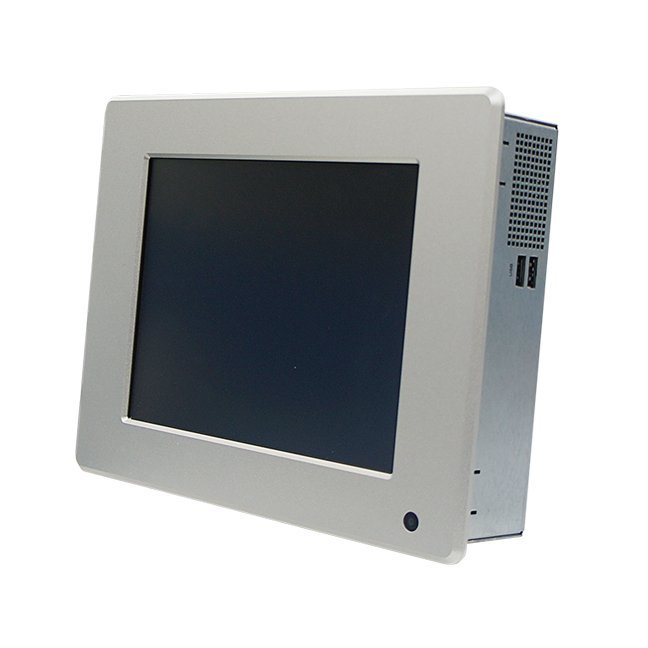

IPPC08A7-RE
