iBASE ASTUT-1811S-PC Panel PC
The ASTUT-1811S-PC comprises all-in-one panel PC with 18.5″ LCD display. The unit utilizes the dual-core 1.86GHz Intel Atom Processor D2550 in a Fanless enclosure that is equipped with a PCI expansion slot to provide high-computing and reliable performance.
ASTUT-1811S-PC Features
- Fanless Enclosure
- Capacitive Touch Screen
- High Performance & Reliable
- Wide-Range 12V~24V DC Power Input
- IP65 Waterproof Front Panel Protection
Request a Quote
Product Type
Format
IP Rating
Operating System
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Dimensions
520 x 341 x 84.4
Humidity
10-90% Humidity Resistant (non-condensing)
Operating System
Windows
Operating Temperature
0C~ 50C(with SSD/CFast)/ 0C~ 40C (with HDD)
Ordering Info
ASTUT-1811S-PC 18.5" Flat Panel Design Panel PC, Intel Atom D2550 1.86GHz, DDR3 SO-DIMM 4GB, with 320G HDD, projected capacitive touch, w/o adaptor Power adaptor AC 90~240V input, 12V DC output 84W power adaptor IBASE P/N: A005PS084W0050000P
Audio
1x MIC in/ Line out phone jack
Backlight Lifetime(hrs)
50000
Construction
Black aluminum front bezel and black steel back cover with aluminum heat-sink
Contrast
41.667361111111
Digital I/O
1x 6 pins terminal block 2in/2out/5VCC/Ground
Display Interface
1x VGA
Display Type
18.5" TFT-LCD
Expansion Slot
1x PCI
HDD
1x 2.5" SATA2
Interface
USB
Keyboard/Mouse
None
LAN
2x Gigabit LAN (RJ45)
Light Transmission (%)
85
Luminance (cd/m2)
300
Max. Color
16.7M
Max. Resolution
1366 x 768
Membrane Control
None
Memory
2x DDR3 1066 SO-DIMM, up to 4GB
Mounting
Panel Mount, VESA 75 x 75mm / 100 x 100mm
Mounting Type Filter
VESA, Panel Mount
Onboard Expansion Bus
1x Mini PCI-E half/full size
Operating System Support
Windows Embedded Standard 7, Windows 7 Pro for Embedded
Power
1x 3pin DC power connector
Power Input
12~36V DC input
Processor, Chipset
Intel Atom Processor D2550 (1M Cache, 1.8GHz)
Removable Slot
1x external CFast
Serial/Parallel
COM1/2 RS-232/422/485 isolated COM3 RS-232
Touch Type
Projected capacitive
Touch Type Filter
Capacitive
USB
4x USB 2.0
View Angle (H/V)
170ï¾°/160ï¾°
Processor
Intel
Storage Temperature
-20C~60C
The iBASE ASTUT-1811S-PC Panel PC is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the ASTUT-1811S-PC is commonly used:
These examples highlight the versatility of the iBASE ASTUT-1811S-PC Panel PC across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Panel PC, Rugged Panel PC fits your specific needs, please contact us.
The iBASE ASTUT-1811S-PC Panel PC comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE ASTUT-1811S-PC Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE ASTUT-1811S-PC Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE ASTUT-1811S-PC Panel PC or require a custom solution?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iBASE ASTUT-1811S-PC or need a custom Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
Alternative Products
Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.
Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.
Browse through our related products and find the perfect match that complements your choice seamlessly.
BYTEM-101-PC
- Supports Intel Atom Processor
- Very Low Power Consumption
- Flat Panel Design With Projected Capacitive Touch
BYTEM-103-PC

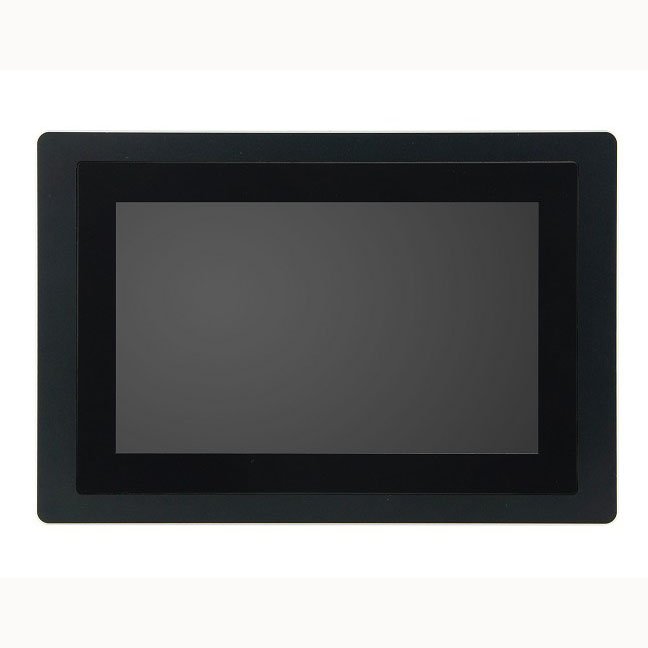

BYARM-W071-PC
