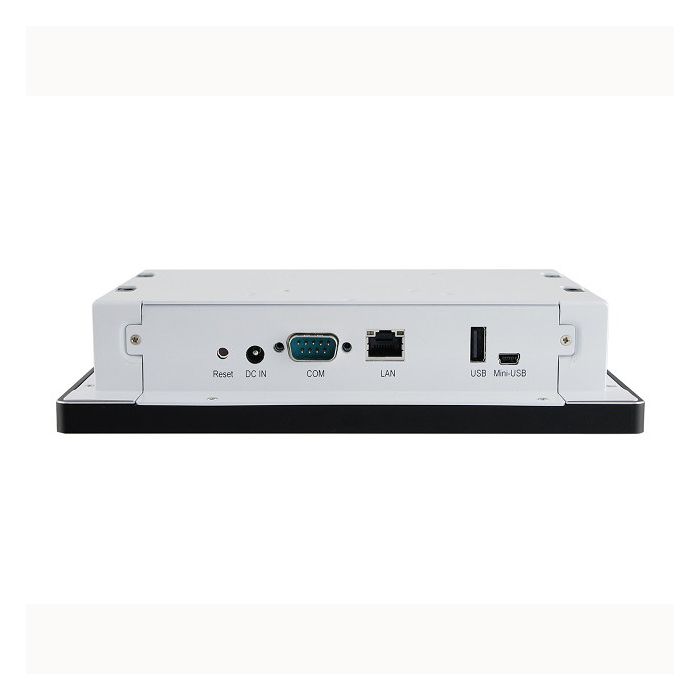

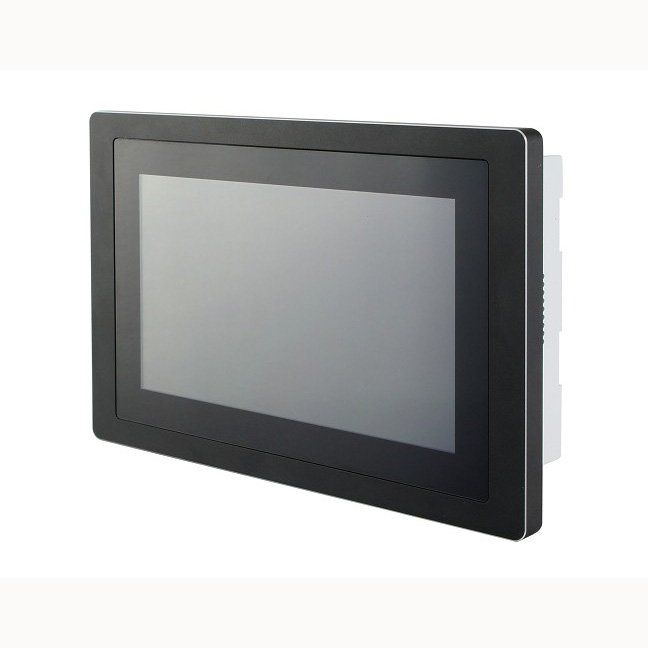

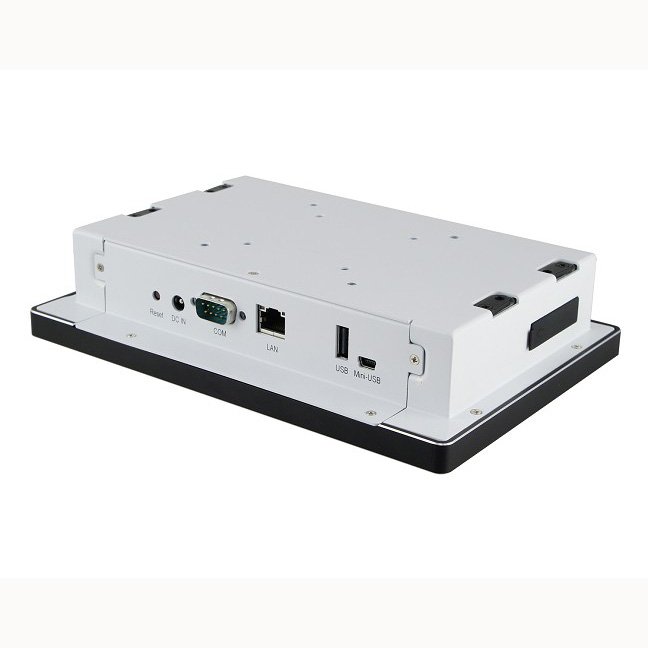

iBASE BYARM-W071-PC Panel PC
i.MX6 Dual-Core Processor-based 7″ Wide Screen Projected Touch Panel PC
BYARM-W071-PC Features
- Projected Capacitive Touch
- Aluminum Front Bezel, IP65 Rated
- Supports Android 4.4
- Compact Design
- With Panel Mounting and VESA Mounting
- 12V To 24V DC ( 20%) Wide-Range Power Input
Request a Quote
Product Type
Format
IP Rating
Operating System
Processor
Manufacturer
Country Of Manufacture
Taiwan
Case Material
Aluminum
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Dimensions
211.5mm x 143.5mm x 45.8mm 8.33 x 5.65 x 1.8
Humidity
10-90% Humidity Resistant (non-condensing)
Operating System
Windows
Operating Temperature
-20C~ 60C (-4CF~140CF)
Ordering Info
BYARM-W071-PC RISC 7ï¾€ï¾ Panel PC with projected capacitive touch, I.MX6 Cortex A9 Dual CPU, 1GB DDR3 on board, supports Android, w/ 60W power adaptor/Android 4.3x
Additional Graphics
None
Audio
2x speaker
Backlight Lifetime(hrs)
50000
Built-in Speaker/MIC
2x Speaker
Chassis Material
Aluminum sliver with front bezel hairline
Construction
Aluminum front bezel and white steel back cover with aluminum heat-sink
Contrast
33.334027777778
Digital I/O
1x D-SUB9 connector at left side for 3in/3out/VCC/G/G
Display Interface
1x HDMI
Display Type
7ï¾€ï¾ TFT-LCD
Expansion Slot
None
HDD
None/Onboard eMMC 4GB
Internal Expansion Bus
1x Mini PCI-E half/full size 1x Mini PCI-E half size
Interface
USB
Keyboard/Mouse
None
LAN
1x RJ45 GbE LAN
Light Transmission (%)
0.85
Luminance (cd/m2)
500 cd/m2
Max. Color
16.7M
Max. Resolution
1024 x 600
Membrane Control
None
Memory
1 GB DDR3L on board
Mounting
Panel mount, VESA 50x50 mm
Mounting Type Filter
VESA, Panel Mount
Onboard Expansion Bus
1x Mini PCI-E(x1) [Full/half-sized]
Operating System Support
Android 4.X
Point of touch
2
Power
1x power jack 1x power reset button
Power Button
Rock switch
Power Input
12V ~24V DC input
Power Input Range
12V~24V DC
Processor, Chipset
Freescale i.MX6 Dual Core @ 800MHz
Removable Slot
1x SD slot, supports up to 32GB
RS-232
1
RS-232/422/485 Selectable under BIOS
1
Serial/Parallel
1x D-SUB9 RS-232/422/485 COM1 1x COM2
Thermal Design
Fanless
Touch Type
Projected capacitive touch
Touch Type Filter
Capacitive
USB
1x USB 2.0 Type A flag type 1x mini USB OTG support
USB 2.0
0
USB 3.0
3
View Angle (H/V)
160ï¾°/160ï¾°
Wireless
Optional Wi-Fi/BT
Processor
i.MX6
Storage Temperature
Rating: -20C ~ 80C (-4CF~176CF)
The iBASE BYARM-W071-PC Panel PC is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the BYARM-W071-PC is commonly used:
These examples highlight the versatility of the iBASE BYARM-W071-PC Panel PC across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Panel PC, Rugged Panel PC fits your specific needs, please contact us.
The iBASE BYARM-W071-PC Panel PC comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE BYARM-W071-PC Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE BYARM-W071-PC Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE BYARM-W071-PC Panel PC or require a custom solution?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iBASE BYARM-W071-PC or need a custom Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
Alternative Products
Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.
Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.
Browse through our related products and find the perfect match that complements your choice seamlessly.
ASTUT-1511S-PC

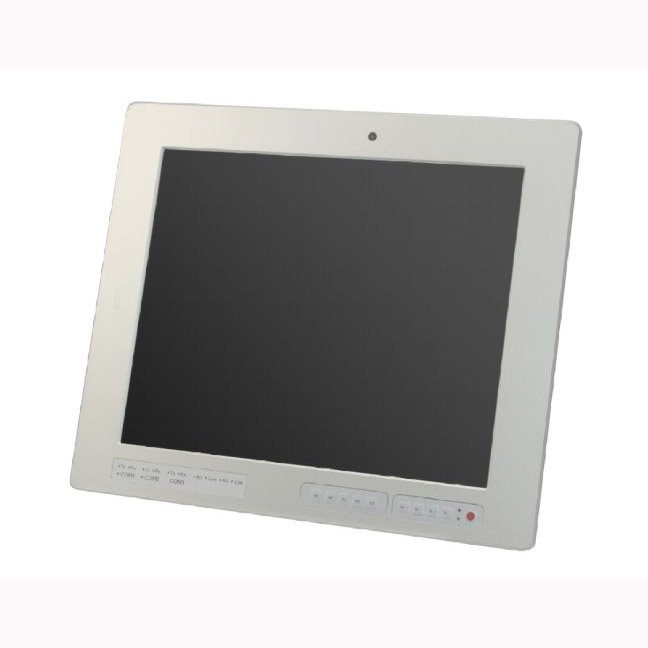

IPPC17A9-RE

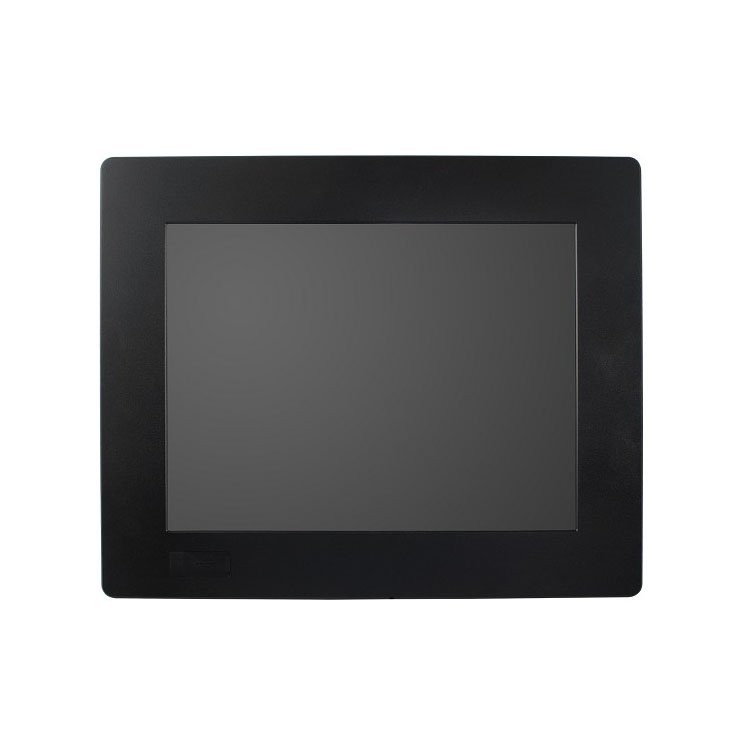

IPPC1503-RE
