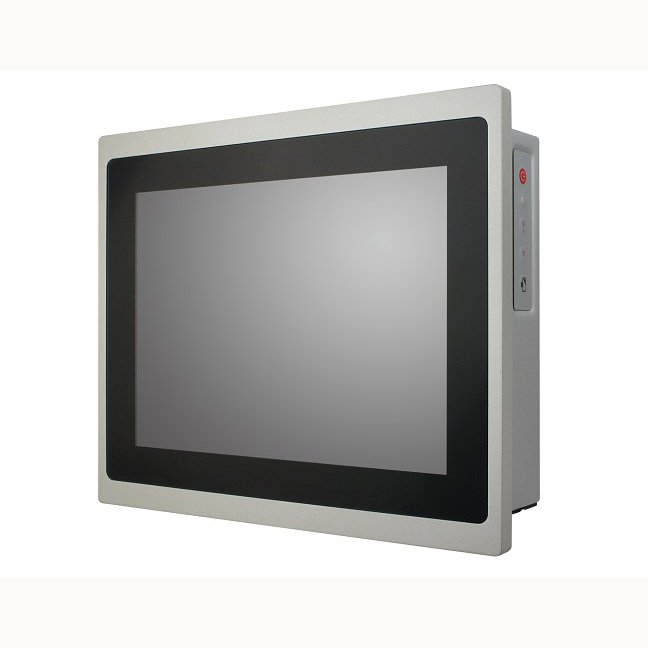

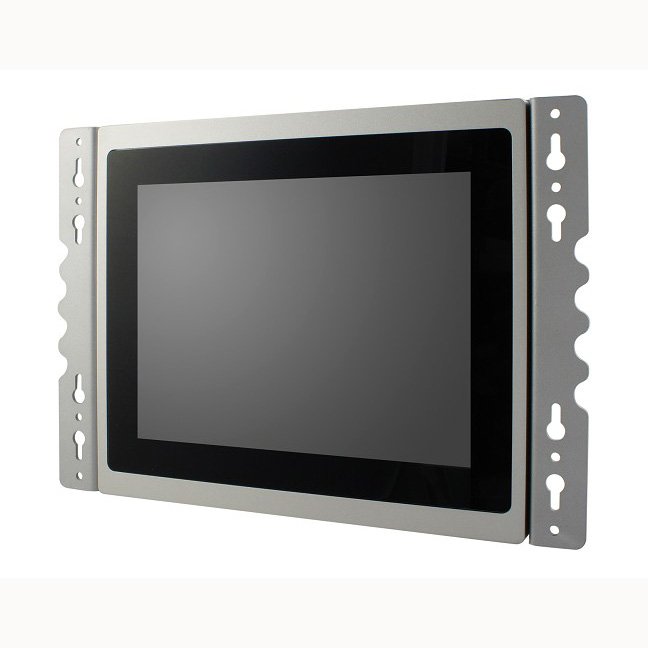

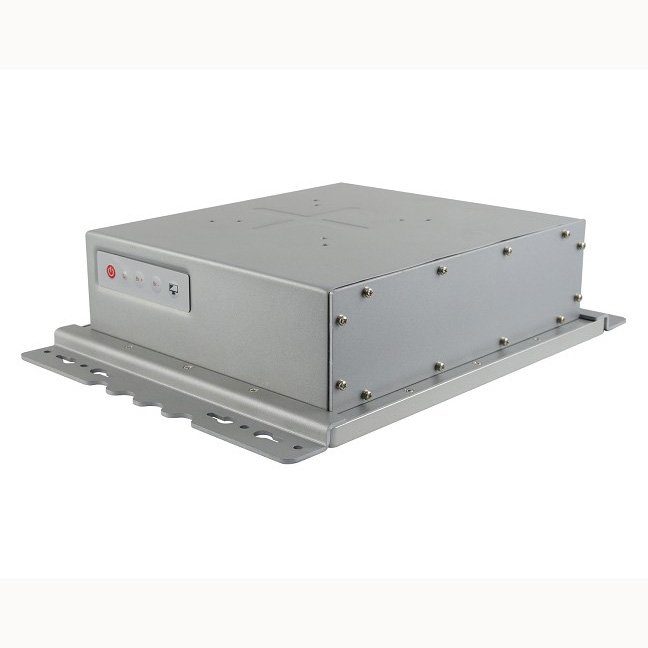

iBASE BYTEM-103-PC Panel PC
EN50155 Certified Intel Atomï¾™ E3845 Processor Quad-Core 10.4″ Transportation Projected Touch Panel PC
BYTEM-103-PC Features
- For Railway Application
- EN50155 Certified
- High PerformanCE, Low Power Consumption
- 24V DC (Default) Power Input, Optional 48V Dc, 72V DC & 110V Dc
- IP65-Rated Front Panel IP65 and IP54 For Whole Unit
- Projected Capacitive Touch
Request a Quote
Product Type
Format
IP Rating
Operating System
Processor
Manufacturer
Country Of Manufacture
Taiwan
Case Material
Aluminum
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Dimensions
275mm x 238.5mm x 78.5mm 10.83 x 9.39 x 3.09
Humidity
10-90% Humidity Resistant (non-condensing)
Operating System
Windows
Operating Temperature
-20C~ 55C (EN50155-T1)
Ordering Info
BYTEM-103-PC 10.4" Projected capacitive touch, flat bezel designpanel PC, Intel Atom E3845 1.91GHz processor, DDR3L SO-DIMM 4GB, with 64G SSD, additional M12 connector for LAN/USB and power input, membrane keypad control for on-off/brightness/volume, 24VDC power input, Front side IP65 and others IP54 with I/O cover. Power adaptor Optional 48V/72V/110VDC power input
Additional Graphics
None
Audio
None
Backlight Lifetime(hrs)
50000
Built-in Speaker/MIC
2x Speaker
Chassis Material
Aluminum sliver with front bezel hairline
Construction
Aluminum front bezel and back cover
Contrast
41.667361111111
Digital I/O
None
Display Interface
1x DP port
Display Type
10.4ï¾€ï¾ TFT-LCD
Expansion Slot
None
HDD
1x 2.5ï¾€ï¾ SATA II HDD space easily
Internal Expansion Bus
1x Mini PCI-E half/full size 1x Mini PCI-E half size
Interface
USB
Keyboard/Mouse
None
LAN
2x Gigabit LAN (RJ45) 1x M12 D code 4-pin connector for 10/100 LAN
Light Transmission (%)
0.85
Luminance (cd/m2)
500 cd/m2
Max. Color
16.2M
Max. Resolution
1024 x 768

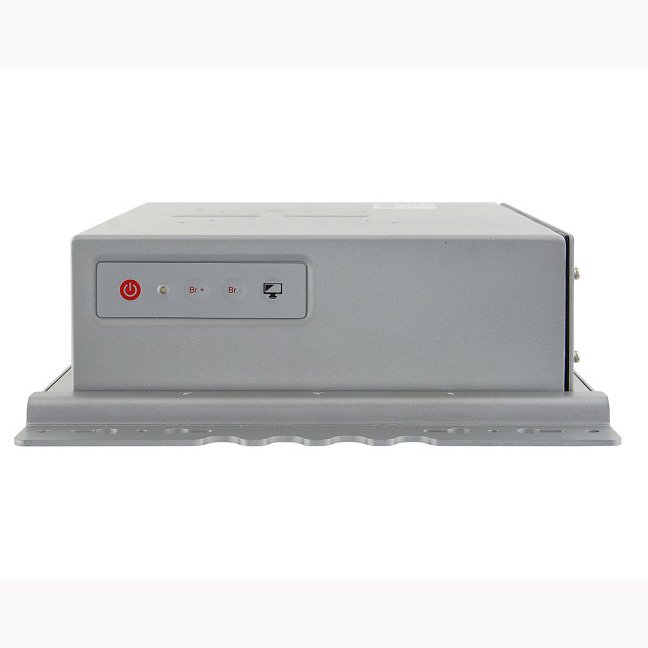

Membrane Control
4 key OSD keypad for Brightness up/down and Screen on/off/power button
Memory
2x DDR3L SO-DIMM, up to 8GB, Default DDR3L 4GB(4GBx1)

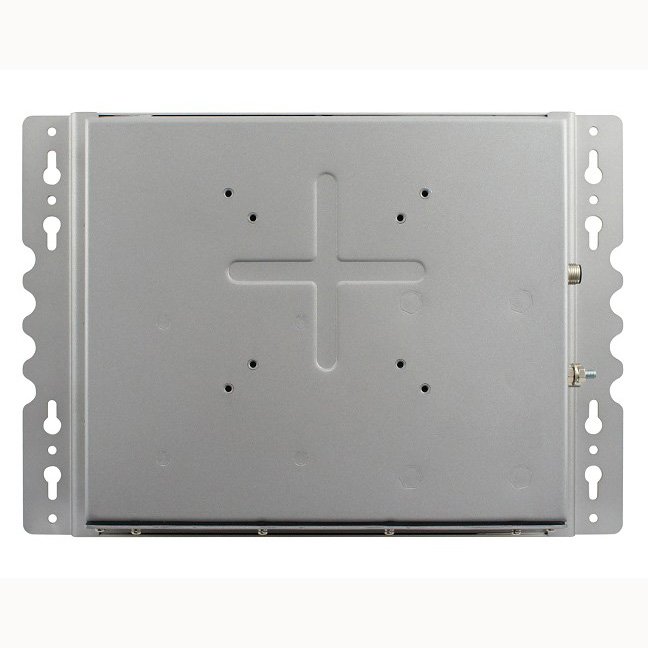

Mounting
VESA 75x75/100x100 mm
Mounting Type Filter
VESA
Onboard Expansion Bus
1x Mini PCI-E(x1) w/ USB signal [half-sized] 1x mSATA/Mini PCI-E(x1) w/ USB signal and mSATA support [Full-sized]
Operating System Support
Windows 8 32/64bit, Windows 7 Pro for Embedded 64bit, WES7 64bit
Point of touch
2

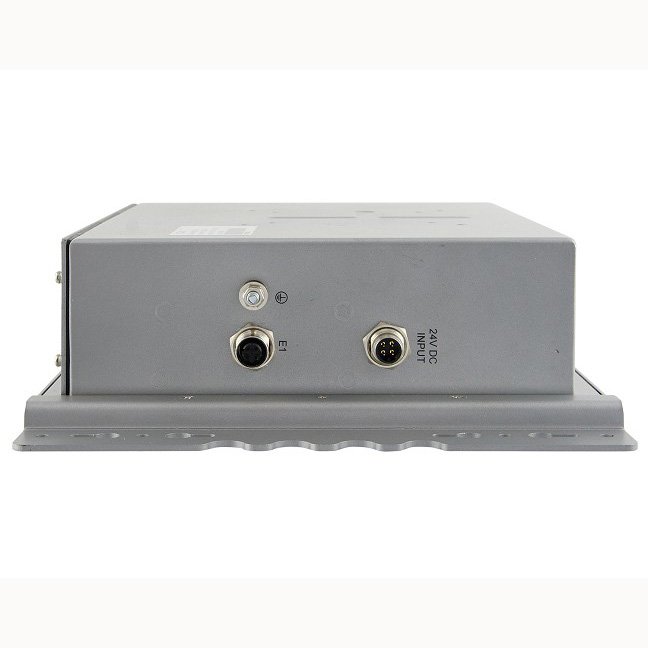

Power
1x M12 4-pin power connector
Power Button
Rock switch
Power Input
Default 24V DC input (EN50155 S2/C2) Optional 48V DC, 72V DC & 110V DC
Power Input Range
12V~24V DC
Processor, Chipset
Intel Atom E3845 (Quad-Core @ 1.91 GHz)
Removable Slot
None
RS-232
1
RS-232/422/485 Selectable under BIOS
1
Serial/Parallel
1x D-SUB9 RS-232/422/485 COM1
Thermal Design
Fanless
Touch Type
Projected capacitive touch
Touch Type Filter
Capacitive
USB
1x USB 3.0 flag type, blue color 1x USB 2.0 type A flag type
USB 2.0
0
USB 3.0
3
View Angle (H/V)
176ï¾° /176ï¾°
Wireless
Optional Wi-Fi/BT
Processor
Intel
Storage Temperature
-30C~70C (-22CF~158CF)
