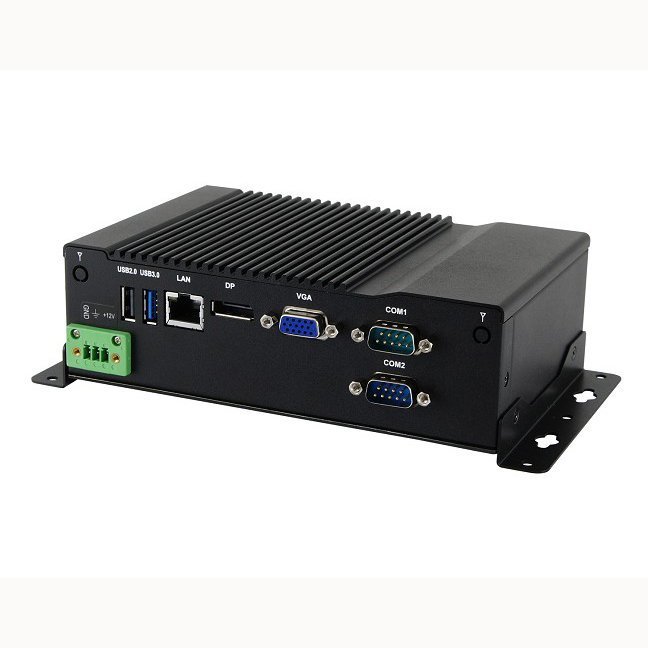

iBASE CSB200-898 Industrial Computer
Slim Fanless system supports IBASE IB898 3.5 Disk-Size SBC
CSB200-898 Features
- Fanless System Supports Ibase Ib898 3.5" Disk-Size Sbc
- Onboard Intel Atom Processor E3825 Soc, 1.33GHz
- ISMART- For Auto-Scheduler and Power Resume
- 1X USB 3.0 and 3X USB 2.0
- Wide Temperature Operating (-30C~65C)
- Supports 3X Mini PCI-E (2X Full-Size & 1X Half Size )
- Supports 1X 2.5" SATA HDD Device Or Ssd
- Wall Mount Kit Included
- 12V DC Power Input
Request a Quote
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE / LVD / FCC Class B
Dimensions
172mm (W) x 111.6mm (D) x 52mm (H) 6.77(W) x 4.39(D) x 2.05(H)
Auto Control and Monitoring
256 segments, 0, 1, 2...255 (sec/min)
Build-In Graphic Controller
Intel HD graphics supports OpenGL 3.0, DirectX 11, OpenCL 1.1 MFX Hardware Video Decoder MPEG-2, AVC, VC-1, JPEG
Chassis Color
Black
Construction
Aluminum & Steel
CPU Package
rPGA988B for 3rd Generation Intel Core i7/i5/i3/ Celeron QC/ DC processors
Expansion Slots
1x Mini PCI-E(x1) slot for Wi-Fi, Bluetooth options
Form Factor FILTER
Fanless System
Front Panel External I/O
1x Power LED 1x HDD LED 1x Power button 1x Reset button 2x USB 2.0 ports 1x Line-out, 1x Mic-in
Mounting
Desktop or wall mount (wall mount kit included)
Power Supply
Optional 60W power adaptor

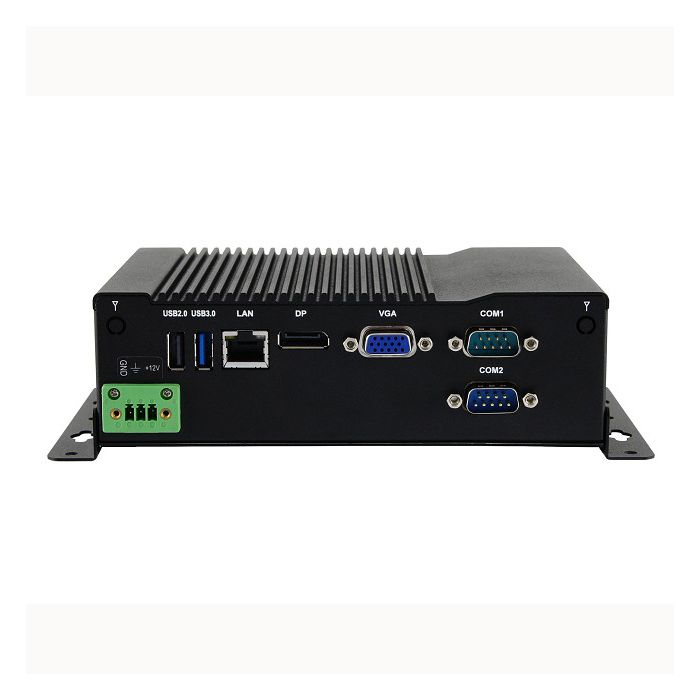

Rear Panel External I/O
1x USB 2.0 port 1x USB 3.0 port 1x DisplayPort 1x VGA port 2x DB9 for COM1(RS232/422/485, select from BIOS) /COM2 1x RJ45 GbE connector 1x DC jack with lock or terminal block (12V DC-IN)
Shock
Operating: 20G / 11ms Non-operating: 40G / 11ms
Storage
1x 2.5" HDD or SSD
System MainBoard
IB898-I25P
System Memory
1x 2GB DDR3L-1333 SO-DIMM, Max. 8GB
System Speed
1.33GHz
Vibration
Operating: 0.25Grms / 5~500Hz Non-operating: 1Grms / 5~500Hz
Expansion
PCI-E
Form Factor
Fanless System
Humidity
5%-90% @ 45C, (non-condensing)
Operating Temperature
-10C~ 45C (14CF~113CF) (With HDD) -30C~65C (22CF~148CF) (With SSD)
Ordering Info
CSB200-898 Fanless chassis with IB898-I25P, Intel Atom E3825 SoC (1.33GHz), 2x COM, 1x DDR3L 2GB memory, 1x 2.5" 320GB SATA HDD, desktop stand & mounting brackets, (w/o 60W power adaptor) CSB200-898-IT Fanless chassis with IB898-I25P, Intel Atom E3825 SoC (1.33GHz), 2x COM, 1x industrial-grade DDR3L 2GB memory, 1x industrial-grade 64GB MLC 2.5ï¾€ï¾ SSD, desktop stand & mounting brackets, (w/o 60W power adaptor)
Power Input
Wide Range
Processor
Intel
Storage Temperature
Rating: -20C ~ 80C (-4CF~176CF)
The iBASE CSB200-898 Industrial Computer is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the CSB200-898 is commonly used:
These examples highlight the versatility of the iBASE CSB200-898 Industrial Computer across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial Computer, Rugged Computer fits your specific needs, please contact us.
The iBASE CSB200-898 Industrial Computer comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE CSB200-898 Industrial Computer, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE CSB200-898 Industrial Computer or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE CSB200-898 Industrial Computer?
If you have any questions about the iBASE CSB200-898 please get in touch today, our team of technical experts are ready to assist you.
