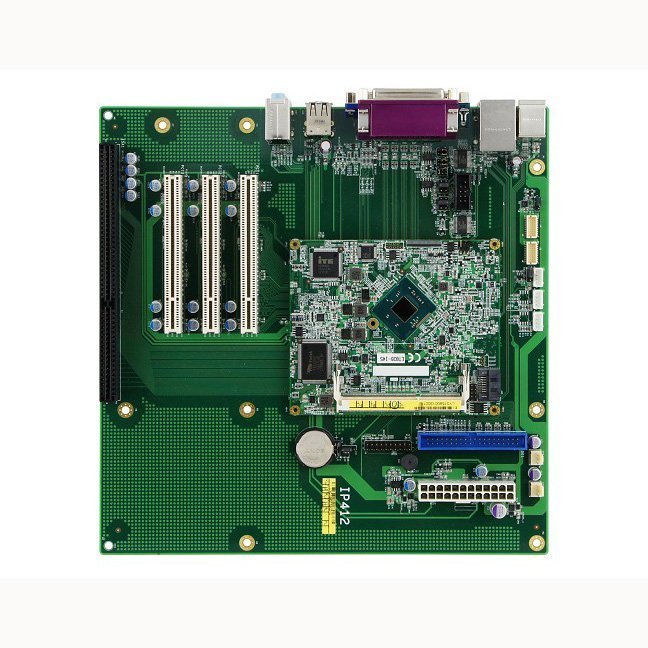

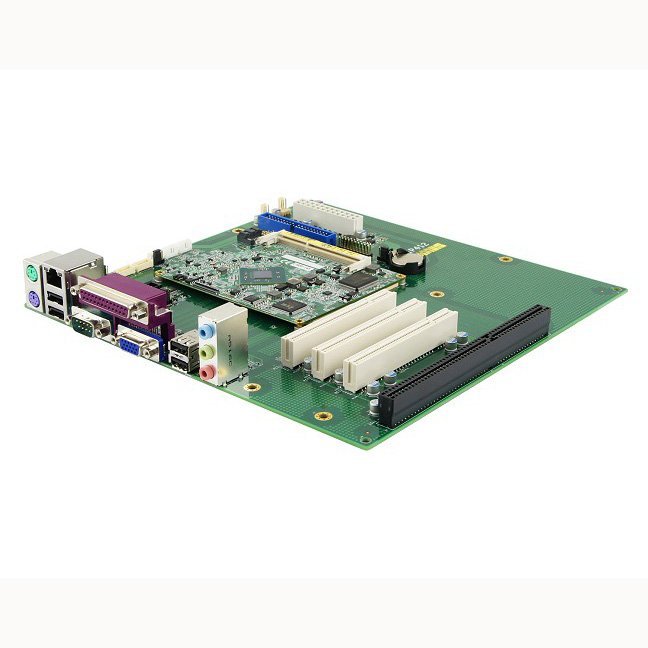

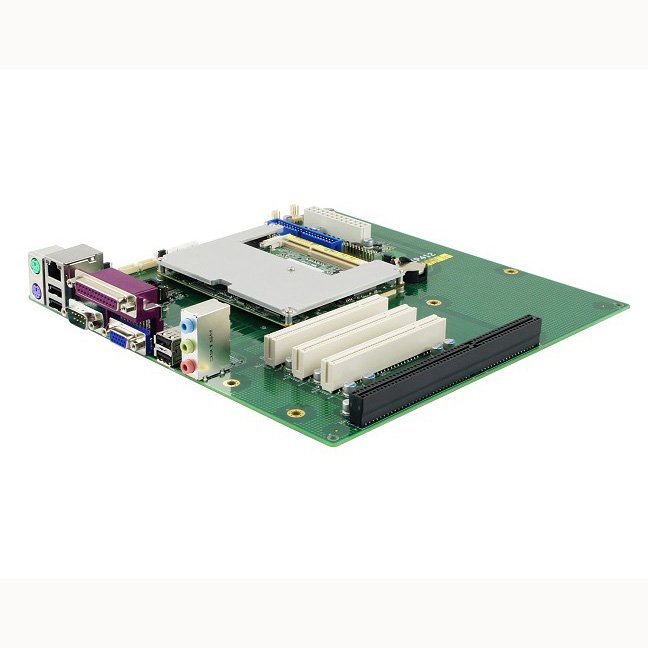

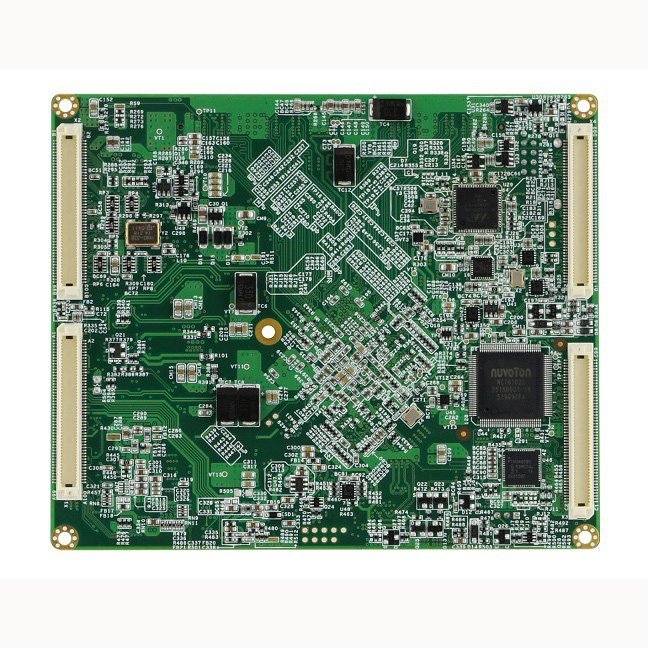

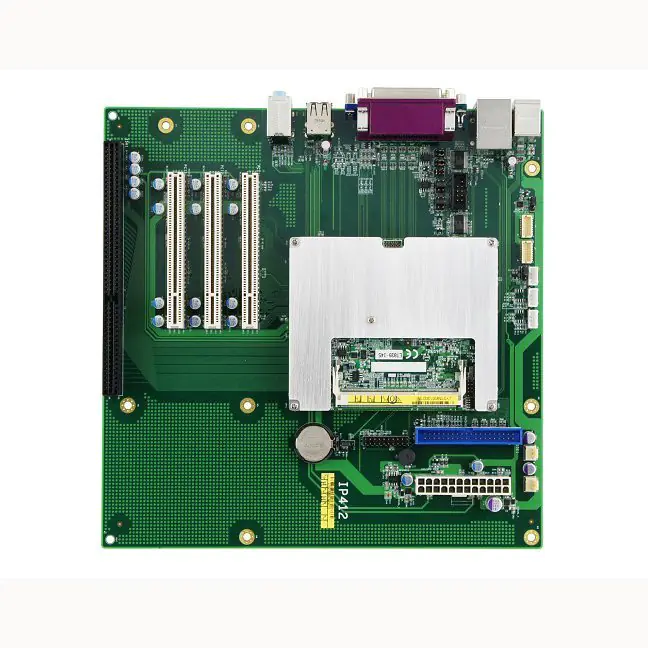

iBASE ET839 CPU Card
The ET839 ETX module supports industrial wide temperature (-40 °C ~ +85 °C) and low heat dissipation efficiency, making it ideal for use in Fanless applications in harsh environments. The platform is powered by a 1.91GHz quad-core Intel Atom Processor E3845 SoC that features scalable performance that allows simple replacement or upgrade of current Bay Trail-I ETX solutions without changing the baseboard, regardless of the chassis and thermal designs.
ET839 Features
- Original OEM Module
- Rohs Compliant, CE
- ISMART- For Auto-Scheduler and Power Resume
- 1X USB 3.0 and 3X USB 2.0
- Wide Temperature Operating (-30C~65C)
- Supports 3X Mini PCI-E (2X Full-Size & 1X Half Size )
- Supports 1X 2.5" SATA HDD Device Or Ssd
- Wall Mount Kit Included
- 12V DC Power Input
Request a Quote
Certifications
RoHS Compliant, CE
Dimensions
95mm x 114mm (3.74ﾀﾜ x 4.49ﾀﾜ)
Audio
Intel Atom SoC built-in HD Audio w/ Realtek ALC662 codec
Auto Control and Monitoring
256 segments, 0, 1, 2...255 (sec/min)
BIOS
AMI BIOS
Build-In Graphic Controller
Intel HD graphics supports OpenGL 3.0, DirectX 11, OpenCL 1.1 MFX Hardware Video Decoder MPEG-2, AVC, VC-1, JPEG
Chassis Color
Black
Construction
Aluminum & Steel
CPU Package
rPGA988B for 3rd Generation Intel Core i7/i5/i3/ Celeron QC/ DC processors
Display Interface
Support CRT , 24-bit dual channel LVDS & 1x DDI port
Expansion Slots
4x ETX connectors for PCI bus, USB, audio, CRT, LVDS, LAN, COM ports, LPT, IDE, PS/2 keyboard/mouse and ISA bus
Form Factor FILTER
ETX Module
Front Panel External I/O
1x Power LED 1x HDD LED 1x Power button 1x Reset button 2x USB 2.0 ports 1x Line-out, 1x Mic-in
H/W Monitor
Yes
I/O Chipset
Nuvoton NCT6102D 1x KB, 1x Mouse , 1 x Printer , 2x RS232
LAN Connector
On baseboard
LAN Controller
Realtek 8106E 10/100Mbps LAN
Mounting
Desktop or wall mount (wall mount kit included)
Others
Fintek F85226 ( LPC to ISA)
Power Supply
Optional 60W power adaptor
Rear Panel External I/O
1x USB 2.0 port 1x USB 3.0 port 1x DisplayPort 1x VGA port 2x DB9 for COM1(RS232/422/485, select from BIOS) /COM2 1x RJ45 GbE connector 1x DC jack with lock or terminal block (12V DC-IN)
SATA II
1 port on board (3.0Gb/sec)
Shock
Operating: 20G / 11ms Non-operating: 40G / 11ms
SSD
N/A
Storage
1x 2.5" HDD or SSD
System MainBoard
IB898-I25P
System Memory
1x DDR3L SO-DIMM, Max. 4GB
System Speed
1.91GHz
USB
4 ports (USB 2.0) via baseboard
VGA Controller
Intel Atom SoC integrated Gen. 7 4Eus graphics
VGA Memory
Shared memory
Vibration
Operating: 0.25Grms / 5~500Hz Non-operating: 1Grms / 5~500Hz
Watchdog Timer
256 levels
Expansion
PCI
Form Factor
CPU Module
Humidity
10-90% Humidity Resistant (non-condensing)
Operating Temperature
-40C~85C (-40CF~185CF)
Ordering Info
ET839-I45 Intel Atom E3845 SoC ETX (3.0) CPU Module w/CRT, LVDS and 10/100 LAN
Power Input
Wide Range
Processor
Intel
Storage Temperature
-40C~90C (-4CF~194CF)
The iBASE ET839 CPU Card is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the ET839 is commonly used:
These examples highlight the versatility of the iBASE ET839 CPU Card across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this CPU Card fits your specific needs, please contact us.
The iBASE ET839 CPU Card comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE ET839 CPU Card, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE ET839 CPU Card or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
