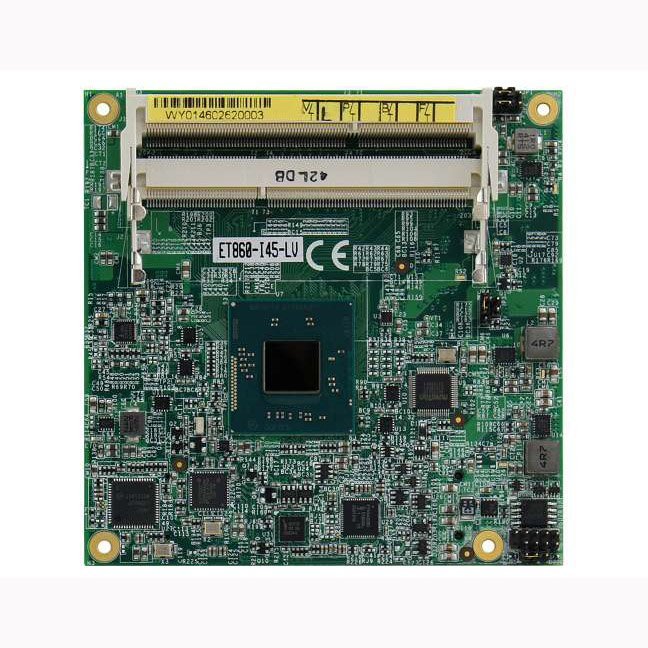

iBASE ET860 CPU Card
Intel Atom E3845/E3827 SoC COM Express Compact Module (Type 6)
ET860 Features
- Onboard Intel Atom E3845/E3827 Soc
- 2X DDR3L So-Dimm, Max. 8Gb
- Single Gigabit LAN Via Baseboard (Ip411)
- 2X SATA Ii, 1X USB 3.0, 8X USB 2.0, 2X Com Via Baseboard (Ip411)
- Supports 2X Independent Displays, Displayport/Crt/Lvds Via Baseboard (Ip411)
- Supports Hd Audio Via Baseboard (Ip411)
- Wide Operating Temperature Support
- Wall Mount Kit Included
- 12V DC Power Input
Request a Quote
Certifications
RoHS Compliant, CE
Dimensions
95mm x 95mm (3.74" x 3.74")
Audio
Intel Atom E3845/E3827 SoC built-in audio w/ Realtek ALC662 codec on baseboard (IP411)
Auto Control and Monitoring
256 segments, 0, 1, 2...255 (sec/min)
BIOS
AMI BIOS
Build-In Graphic Controller
Intel HD graphics supports OpenGL 3.0, DirectX 11, OpenCL 1.1 MFX Hardware Video Decoder MPEG-2, AVC, VC-1, JPEG
Chassis Color
Black
Construction
Aluminum & Steel
CPU Package
rPGA988B for 3rd Generation Intel Core i7/i5/i3/ Celeron QC/ DC processors
Display Interface
24-bit single channel LVDS on baseboard (IP411)
Expansion Slots
1x PCI-E(x1) on baseboard (IP411)
Form Factor FILTER
Carrier board
Front Panel External I/O
1x Power LED 1x HDD LED 1x Power button 1x Reset button 2x USB 2.0 ports 1x Line-out, 1x Mic-in
H/W Monitor
Yes
I/O Chipset
Nuvoton NCT5523D on board (supports Tx/Rx only) functions on baseboard (IP411) include: 1x LPT, 2x SATA II, 2x RS232 (full function)
LAN Connector
1x RJ45 on baseboard (IP411)
LAN Controller
1x Intel I210IT Gigabit LAN
Mounting
Desktop or wall mount (wall mount kit included)
Others
MicroSD slot onboard@ rear side Digital I/O (4 in / 4 out) on baseboard (IP411)
Power Supply
Optional 60W power adaptor
Rear Panel External I/O
1x USB 2.0 port 1x USB 3.0 port 1x DisplayPort 1x VGA port 2x DB9 for COM1(RS232/422/485, select from BIOS) /COM2 1x RJ45 GbE connector 1x DC jack with lock or terminal block (12V DC-IN)
SATA II
1 port on board (3.0Gb/sec)
Shock
Operating: 20G / 11ms Non-operating: 40G / 11ms
SSD
N/A
Storage
1x 2.5" HDD or SSD
System MainBoard
IB898-I25P
System Memory
2x DDR3L@1.35V SO-DIMM, Max. 8GB (Non-ECC)
System Speed
1.91GHz
USB
1x USB 3.0 ports via baseboard (IP411) 8x USB 2.0 ports via baseboard (supports 6x USB 2.0 only on IP411)
VGA Controller
Intel Atom E3845/E3827 SoC integrated graphics supports CRT, DisplayPort & LVDS
VGA Memory
Shared memory
Vibration
Operating: 0.25Grms / 5~500Hz Non-operating: 1Grms / 5~500Hz
Watchdog Timer
256 levels
Expansion
PCI-E
Form Factor
CPU Module
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
-40C~85C (-40CF~185CF)
Ordering Info

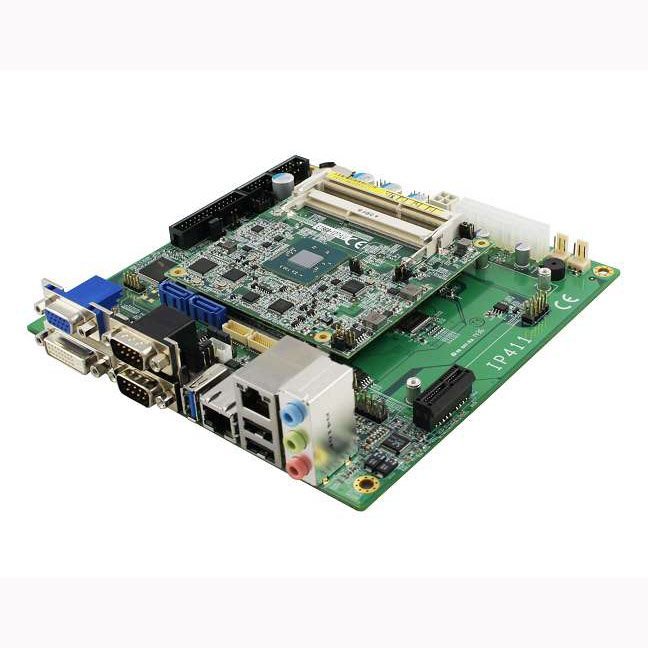

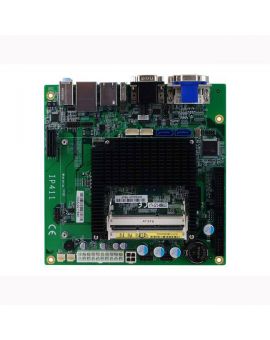

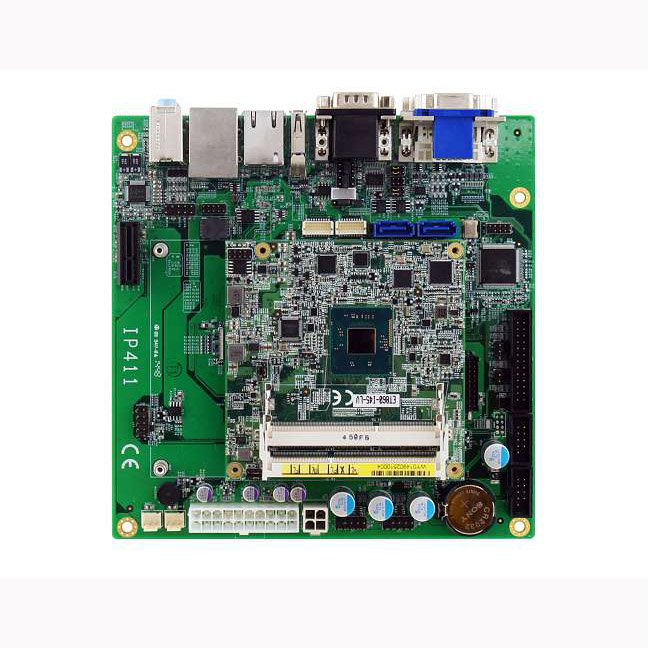

ET860-i45-LV COM Express (Type 6) module with Intel Atom E3845 (1.91GHz) SoC, DDR3L dual channel memory, LVDS ET860-i27-LV COM Express (Type 6) module with Intel Atom E3827 (1.75GHz) SoC, DDR3L dual channel memory, LVDS IP411 Mini-iTX COM Express(Type 6) baseboard w/ heatsink HSET860-BGA-1 Heatsink for ET860 HSET860-BGA-2 Heat spreader for ET860
Power Input
Wide Range
Processor
Intel
Storage Temperature
-40C~90C (-40CF~194CF)
The iBASE ET860 CPU Card is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the ET860 is commonly used:
These examples highlight the versatility of the iBASE ET860 CPU Card across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this CPU Card fits your specific needs, please contact us.
The iBASE ET860 CPU Card comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE ET860 CPU Card, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE ET860 CPU Card or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
