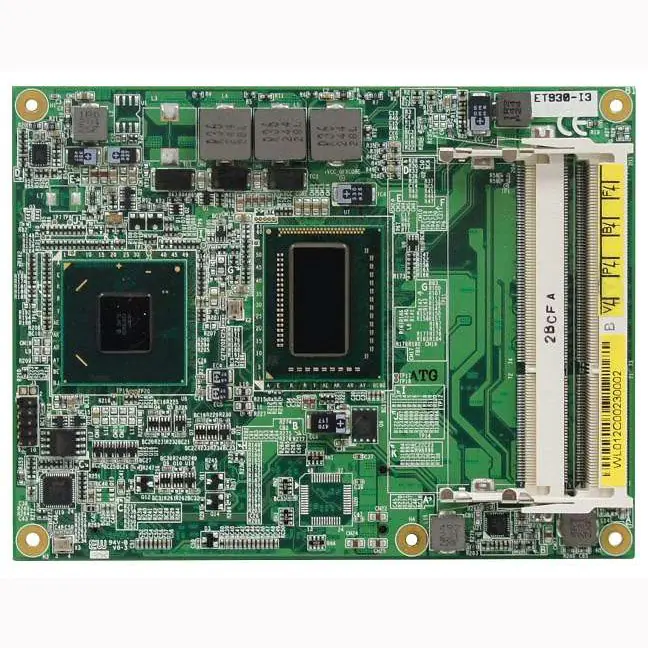

iBASE ET930 CPU Card
2nd/3rd Generation Intel Core i3/Celeron COM Express Basic Module (Type 6) w/ Intel HM76 PCH
ET930 Features
- Onboard 2nd/3rd Generation Intel Core I3 / Celeron DC / Sc Processors
- 2X DDR3 So-Dimm, Max. 16Gb
- Single Gigabit LAN Via Baseboard(Ip402)
- 2X SATA Ii, 2X SATA Iii, 2X USB 3.0, 6X USB 2.0, 4X Com Via Baseboard (Ip402)
- Supports 3X Independent Displays, Displayport/ DVI-I/Lvds Via Baseboard (Ip402)
- Supports Hd Audio Via Baseboard (Ip402)
- Wide Operating Temperature Support
- Wall Mount Kit Included
- 12V DC Power Input
Request a Quote
Certifications
RoHS Compliant, CE
Dimensions
95mm x 125mm (3.74" x 4.49")
Audio
Intel HM76 PCH built-in audio w/ Realtek ALC662 codec on baseboard (IP402)
Auto Control and Monitoring
256 segments, 0, 1, 2...255 (sec/min)
BIOS
AMI BIOS
Build-In Graphic Controller
Intel HD graphics supports OpenGL 3.0, DirectX 11, OpenCL 1.1 MFX Hardware Video Decoder MPEG-2, AVC, VC-1, JPEG
Chassis Color
Black
Construction
Aluminum & Steel
CPU Package
rPGA988B for 3rd Generation Intel Core i7/i5/i3/ Celeron QC/ DC processors
Display Interface
24-bit single channel LVDS on baseboard (IP402)
Expansion Slots
1x PCI-E(x16) , 1x PCI-E(x4), 1x PCI-E(x1) on baseboard (IP402)
Form Factor FILTER
Carrier board
Front Panel External I/O
1x Power LED 1x HDD LED 1x Power button 1x Reset button 2x USB 2.0 ports 1x Line-out, 1x Mic-in
H/W Monitor
Yes
I/O Chipset
All on baseboard (IP402) 1x LPT, 1x KB, 1x Mouse, 2x SATA II, 2x SATA III, 4x RS232
LAN Connector
1x RJ45 on baseboard (IP402)
LAN Controller
1x Intel 82579V Gigabit LAN PHY
Mounting
Desktop or wall mount (wall mount kit included)
Others
Digital I/O (4 in / 4 out) on baseboard (IP402)
Power Supply
Optional 60W power adaptor
Rear Panel External I/O
1x USB 2.0 port 1x USB 3.0 port 1x DisplayPort 1x VGA port 2x DB9 for COM1(RS232/422/485, select from BIOS) /COM2 1x RJ45 GbE connector 1x DC jack with lock or terminal block (12V DC-IN)
SATA II
1 port on board (3.0Gb/sec)
Shock
Operating: 20G / 11ms Non-operating: 40G / 11ms
SSD
N/A
Storage
1x 2.5" HDD or SSD
System MainBoard
IB898-I25P
System Memory
2x DDR3 SO-DIMM, Max. 16GB (Non-ECC)
System Speed
1.91GHz
USB
2x USB 3.0 ports via baseboard (IP402) 6x USB 2.0 ports via baseboard (IP402)
VGA Controller
2nd/3rd Generation Intel Core i3/Celeron integrated graphics supports CRT, DVI, DisplayPort, LVDS
VGA Memory
Max. Shared memory 1024MB
Vibration
Operating: 0.25Grms / 5~500Hz Non-operating: 1Grms / 5~500Hz
Watchdog Timer
256 levels
Expansion
PCI-E
Form Factor
CPU Module
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C (32CF~140CF)
Ordering Info
ET930-16 COM Express( Type 6) module w/ Intel Core i3-3217UE(1.6GHz), HM76 PCH, DDR3 dual channel memory ET930-13 COM Express( Type 6) module w/ Intel Core i3-2340UE(1.3GHz), HM76 PCH, DDR3 dual channel memory ET930-1G COM Express( Type 6) module w/ Intel Celeron 807UE(1.0GHz), HM76 PCH, DDR3 dual channel memory IP402 Flex ATX baseboard for COM Express( Type 6) module HSET930-BGA-1 Cooler for ET950 HSET930-BGA-2 Heat spreader for ET950
Power Input
Wide Range
Processor
Intel
Storage Temperature
-20C~80C (-4CF~176CF)
