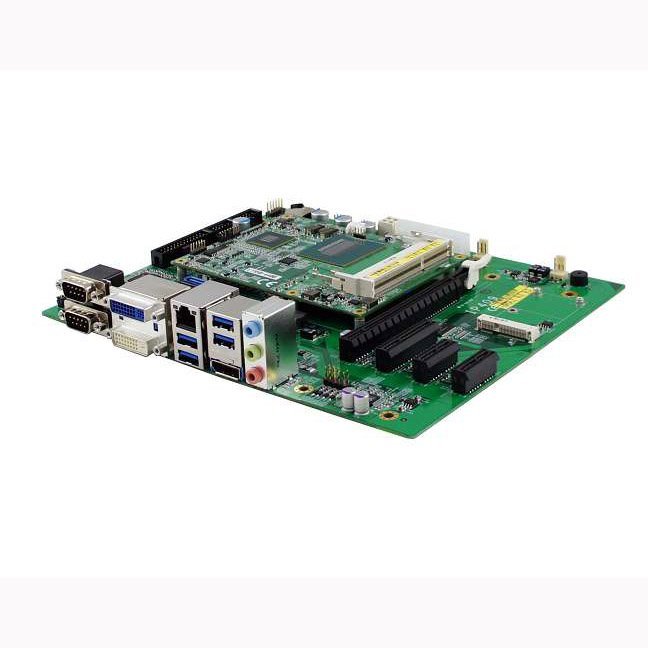

iBASE ET950 CPU Card
4th Generation Intel Core i7/i5/i3 COM Express Basic Module (Type 6) w/ Intel QM87 PCH
ET950 Features
- Onboard 4th Generation Intel Core I7/I5/I3 Qc / DC Processors
- 2X DDR3 So-Dimm, Max. 16Gb
- Single Gigabit LAN Via Baseboard (Ip409)
- 2X SATA Ii, 2X SATA Iii, 4X USB 3.0, 4X USB 2.0, 2X Com Via Baseboard (Ip409)
- Supports Max. 3X Independent Displays, Displayport/DVI-I/ DVI-D/ Lvds Via Baseboard (Ip409)
- Supports Hd Audio Via Baseboard (Ip409)
Request a Quote
Certifications
RoHS Compliant, CE
Dimensions
95mm x 125mm (3.74" x 4.49")
Audio
Intel QM87 PCH built-in audio w/ Realtek ALC662 codec on baseboard (IP409)
BIOS
AMI BIOS
Display Interface
24-bit single channel LVDS on baseboard (IP402)
Expansion Slots
1x PCI-E(x16), 1x PCI-E(x4), 2x PCI-E(x1), 1x Mini PCI-E on baseboard (IP409)
Form Factor FILTER
Express Basic Module
H/W Monitor
Yes
I/O Chipset
Nuvoton NCT5523D onboard (support Tx /Rx only) Below functions on baseboard (IP409) 1x LPT, 1x KB, 1x Mouse, 2x SATA II, 2x SATA III, 2x RS232 (Full function)
LAN Connector
1x RJ45 on baseboard (IP409)
LAN Controller
1x Intel I217LM Gigabit LAN PHY
Others
Digital I/O (4 in / 4 out) on baseboard (IP409)
SSD
N/A
System Memory
2x DDR3 SO-DIMM, Max. 16GB (Non-ECC)
USB
4x USB 3.0 ports via baseboard (IP409) 4x USB 2.0 ports via baseboard (IP409)
VGA Controller
4th Generation Intel Core Processor integrated Gfx, supports DVI-D, DVI-I, DisplayPort, LVDS
VGA Memory
Max. Shared memory 1024MB
Watchdog Timer
256 levels
Expansion
PCI-E
Form Factor
CPU Module
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C (32CF~140CF)
Ordering Info
ET950-4700 COM Express (Type 6) module with Intel Core i7-4700EQ(2.4GHz) , QM87 PCH, DDR3 dual channel memory ET950-4400 COM Express (Type 6) module with Intel Core i5-4400E(2.7GHz) , QM87 PCH, DDR3 dual channel memory ET950-4100 COM Express (Type 6) module with Intel Core i3-4100E(2.4GHz) , QM87 PCH, DDR3 dual channel memory IP409 Flex ATX baseboard for COM Express (Type 6) module HSET950-BGA-1 Heatsink w/ fan for ET950 HSET950-BGA-2 Heat spreader for ET950
Processor
Intel
Storage Temperature
-20C~80C (-4CF~176CF)
