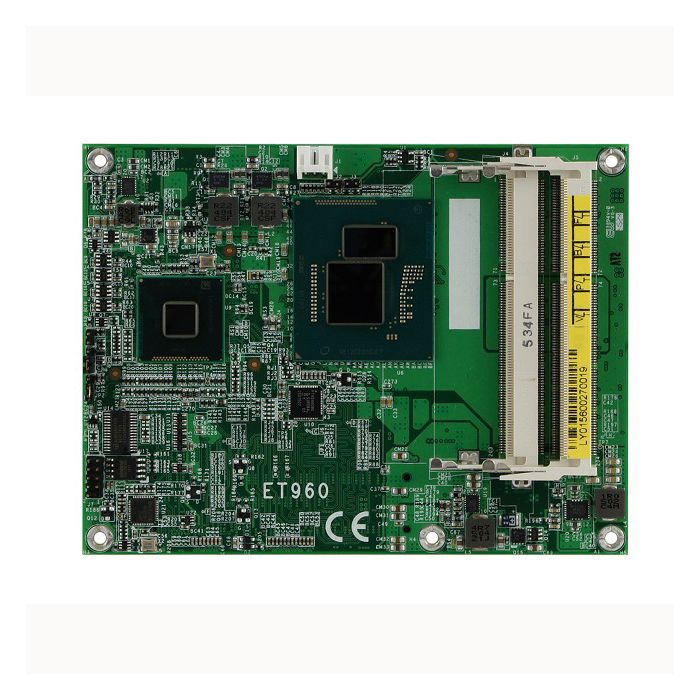

iBASE ET960 CPU Card
5th Generation Intel Core i7 COM Express Module (Type 6) w/ Intel QM87 PCH
ET960 Features
- Onboard 5th Generation Intel Core I7 Mobile Processors
- 2X DDR3L So-Dimm, Max. 16Gb
- Single Gigabit LAN Via Baseboard (Ip409)
- 2X SATA Ii, 2X SATA Iii, 4X USB 3.0, 4X USB 2.0, 2X Com Via Baseboard (Ip409)
- Supports Up To 3 Independent Displays, Displayport/DVI-I/DVI-D/Lvds Via Baseboard (Ip409)
- Supports Hd Audio Via Baseboard (Ip409)
Request a Quote
Certifications
RoHS Compliant, CE
Dimensions
95mm x 125mm (3.74ﾀﾜ x 4.92ﾀﾜ)
Audio
Intel QM87 PCH built-in audio with Realtek ALC662 codec on baseboard (IP409)
BIOS
AMI
Display Interface
24-bit single channel LVDS on baseboard (IP409)
Expansion Slots
1x PCI-E(x16), 1x PCI-E(x4), 2x PCI-E(x1), 1x Mini PCI-E on baseboard (IP409)
Form Factor FILTER
Express Module
H/W Monitor
Yes
I/O Chipset
Nuvoton NCT5523D on board (supports Tx/Rx only) Functions on baseboard (IP409): 1x LPT, 1x KB, 1x mouse, 2x SATA II, 2x SATA III, 2x RS232 (full function)
LAN Connector
1x RJ45 on baseboard (IP409)
LAN Controller
1x Intel I218LM Gigabit LAN PHY
Others
Digital I/O (4 in / 4 out) on baseboard (IP409)
SSD
N/A
System Memory
2x DDR3L SO-DIMM, Max. 16GB (Non-ECC)
USB
4x USB 3.0 ports via baseboard (IP409) 4x USB 2.0 ports via baseboard (IP409)
VGA Controller
Intel 5th generation Core Processor integrated graphics supports DVI-D, DVI-I, DisplayPort, LVDS
VGA Memory
Max. Shared memory 1024MB
Watchdog Timer
256 levels
Expansion
PCI-E
Form Factor
CPU Module
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C ( 32CF~140CF)
Ordering Info
ET960-Q26 Intel Core i7-5700EQ (2.6GHz), QM87 PCH, DDR3L dual channel memory COM Express (Type 6) module ET960-Q27e Intel Core i7-5850EQ (2.7GHz), QM87 PCH, DDR3L dual channel memory COM Express (Type 6) module IP409 Flex ATX baseboard for COM Express (Type 6) module HSET950-BGA-1 Heatsink w/ fan for ET950 / ET960 HSET950-BGA-2 Heat spreader for ET950 / ET960
Processor
Intel
Storage Temperature
-20C~80C (-4CF~176CF)
The iBASE ET960 CPU Card is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the ET960 is commonly used:
These examples highlight the versatility of the iBASE ET960 CPU Card across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this CPU Card fits your specific needs, please contact us.
The iBASE ET960 CPU Card comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE ET960 CPU Card, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE ET960 CPU Card or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE ET960 CPU Card?
If you have any questions about the iBASE ET960 please get in touch today, our team of technical experts are ready to assist you.
