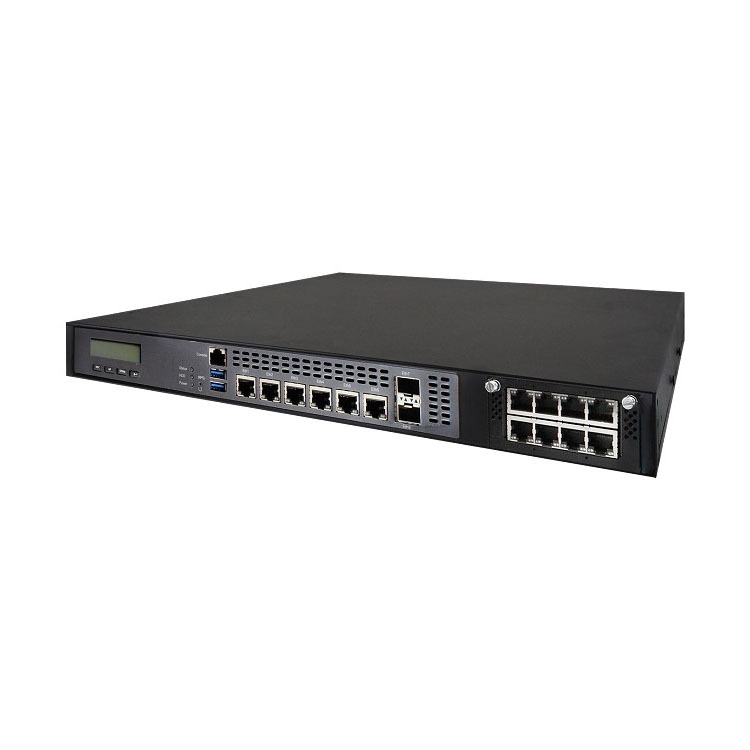

iBASE FWA8708 Enterprise 1U Network Appliance
The FWA8708 is a 1U rack-mountable network appliances based on the 8th Generation Intel ® Xeon ®/Core „¢ Processors to provide high scalability and performance for firewall, VPN, UTM, load balancing and network security applications in SMB and large enterprise environments. The FWA8708 comes in two versions: FWA8708-C powered by the Intel ® C246 and FWA8708-H with the Intel H310 chipset.
The FWA8708-C has four DDR4-2666 modules to support up to 64GB of system memory and onboard 6x Intel ® i210 and 2x i210S Ethernet controllers with 8 GbE ports and optional IBN cards (IBASE proprietary network interface card) to support up to 8 additional GbE ports; while FWA8708-H fits up to 32GB of RAM and is equipped with 6x i211AT controllers combined with six Gigabit Ethernet ports. Standard configuration consists of 6x GbE ports and two SFP ports for hot-swappable input/output, featuring speeds of up to 1Gbps and long-distance transmission ranges.
The FWA8708 network appliance is significantly more flexible and easily upgradable, allowing implementation of third-party software in SDN, SD-WAN, NFV and VNF architecture and technologies.
The FWA8708 delivers rich I/O connectivity and expansion. It offers two PCIe and a Mini PCIe slot for high density PCIe payloads and an M.2 expansion slot to interface with SATA 3.0 and PCIe x4 bus for high data throughput. Other connectors available that are useful in most networking applications include two USB 3.0, VGA via headers, and an RJ45 serial console with LCM display for easy operation.
FWA8708 Features
- 8th Gen Intel® Xeon® / Core™ i7/i5/i3, up to 6 core processors with C246 or H310 PCH
- 6x RJ45 GbE + 2x SFP GbE on board
- 4x or 2x DDR4 DIMMs; Max. 64GB (ECC/non-ECC)
- Optional IPMI 2.0 module (for FWA8708-C only)
- Optional NIC slot (for FWA8708-C only)
- 1x Mini PCI-E slot, 1x M.2 slot
Request a Quote
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Taiwan
Case Material
Black
Certifications
CE/FCC
Custom Options Products
Processor,Memory,Storage,Connections
GbE Ports
16
Housing Colour
Black
Bypass
2x segment, LAN3/4 & 5/6
Chipset
FWA8708-C: Intel® C246 PCH chipset
FWA8708-H: Intel® H310 PCH chipset
CPU
FWA8708-C:LGA1151 socket for 8th Gen Intel® Xeon® / Core™ i7/i5/i3processors
FWA8708-H:LGA1151 socket for 8th Gen Intel® Core® i7/i5/i3 processors
Display
1x VGA via pin-header
1x LCM
Expansion Slots
1 or 2x PCI-E slot on rear panel
1x Mini PCI-E slot (PCIe, SATA signal)
1x M.2 slot (M-key with PCIe x4 & SATA signal)
Front I/O
3x LED (Power / HDD / Status)
1x Factory default button (GPIO)
1x RJ45 console
2x USB 3.0
1x MGMT (LAN1 share with IPMI NC-SI port)
LAN
FWA8708-C:
On board: 6x Intel® I210AT + 2x Intel® I210IS GbE
NIC module slot: 1x IBN card, Max. 6 GbE
FWA8708-H:
6x Intel® I211AT GbE
Max. Power Requirement
Full range 250W ATX power supply or 300W 1+1 Redundant power supply
Memory
FWA8708-C: 4x DDR4 DIMMs, up to 2666MHz,
Max. 64GB UDIMM (ECC or non-ECC)
FWA8708-H: 2x DDR4 DIMMs, up to 2666MHz,
Max. 32GB UDIMM (Non-ECC)
No. Of Ports
16 GbE Ports
Power Supply
Full range 250W ATX power supply or_x005F_x000D_ 300W 1+1 Redundant power supply
Storage
2x 2.5†/ 3.5†SATA drive bay
_x005F_x000D_1x M.2 slot (M-key with PCIe x4 & SATA signal)
TPM
TPM 2.0
Operating Temperature
0°C ~ 40°C (32°F ~ 104°F)
Ordering Info
FWA8708-C 1U - Rackmount Appliance, MBN805C 8th Gen Intel® Xeon® / Core™ i7/i5/i3 Processors, C246 PCH, 4x DDR4 DIMMs, Max. 16 GbE Ports, 250W PSU, CPU Cooler, optional IPMI, Barebone without RAM/HDD/Drive Bay Kit/IBN Card
Processor
Intel
Storage Temperature
-20°C ~ 70°C (-4°F ~ 158°F)
The iBASE FWA8708 Enterprise 1U Network Appliance is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the FWA8708 is commonly used:
These examples highlight the versatility of the iBASE FWA8708 Enterprise 1U Network Appliance across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Network Appliance fits your specific needs, please contact us.
The iBASE FWA8708 Enterprise 1U Network Appliance comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE FWA8708 Enterprise 1U Network Appliance, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE FWA8708 Enterprise 1U Network Appliance or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE FWA8708 Enterprise 1U Network Appliance or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iBASE FWA8708 or need a custom Network Appliance solution designed specifically for you, our team of technical experts are ready to assist you.
