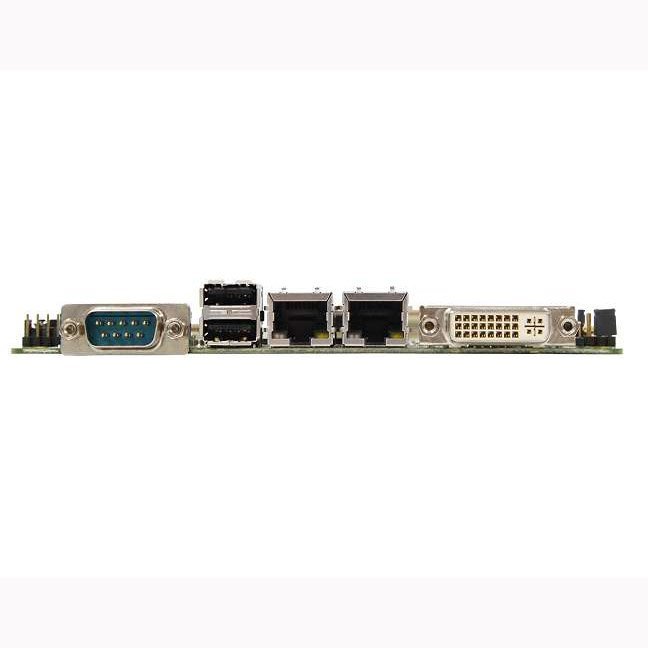

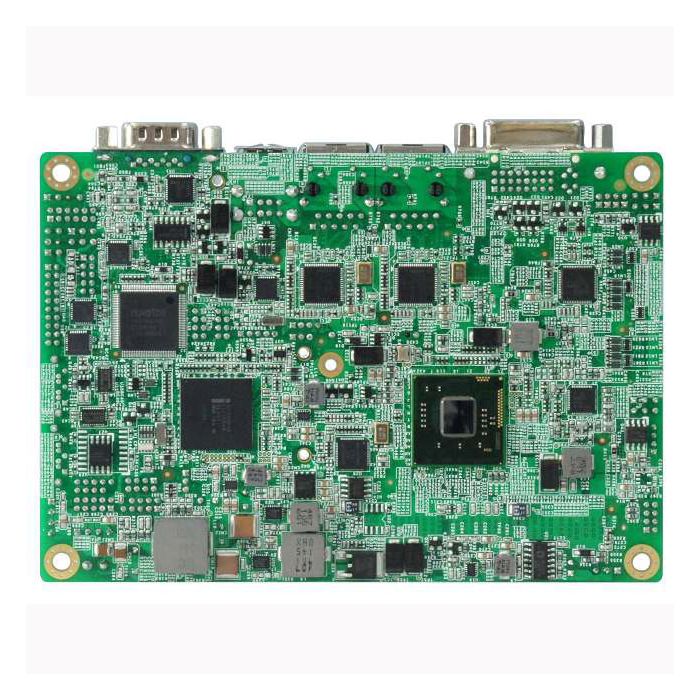

iBASE IB895 Industrial Single Board Computer
The IB895 is a 3.5″ disk-size SBC integrated with the Intel Atom D2550/N2600 processor and Intel NM10 chipset. Like many new board offerings from IBASE, this board comes with a new green technology called iSMART, which is designed to reduce energy consumption when systems are not in use.
IB895 Features
- Original OEM Module
- Rohs Compliant, CE
- Integrated Graphics DeviCE, Gma3650
- With DVI-D, 24-Bit Dual Channel Lvds and Crt Support
- 2X Gigabit Lan
- 2X SATA Ii, 7X USB 2.0, 4X Com, 1X Cfast, Watchdog Timer
- Digital I/O, Isa High Drive, Mini PCI-E Socket
Request a Quote
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
RoHS Compliant, CE
Dimensions
102mm x 147mm (4" x 5.8")
Audio
Intel NM10 built-in audio controller w/ Realtek ALC269QHD Codec w/ class-D speaker amplifier
BIOS
AMI
Display Interface
Supports DVI-I and 24-bit dual channel LVDS
Expansion Slots
2x Mini PCI-E (1x half-size, 1x full-size)
Form Factor FILTER
3.5" SBC
H/W Monitor
Yes
I/O Chipset
Nuvoton NCT6627UD 1x KB, 1x Mouse, 3x RS232, 1x RS-232/422/485(jumperless selection), 2x SATA II
LAN Connector
2x RJ-45 on board
LAN Controller
2x Intel 82583V PCI-E Gigabit LAN
Others
Digital I/O, +12V~+24V DC In, iSMART
SSD
mSATA (Thru full-size Mini PCI-E)
System Memory
1x DDR3 SO-DIMM, Max. 4GB (Non-ECC) for IB895 / 2GB (Non-ECC) for IB895N
System Speed
1.86GHz
USB
2 ports on board Pin headers for 4 ports (USB 2.0)
VGA Controller
Intel Atom Processor D2550 / N2600 integrated
VGA Memory
Max. shared memory 224MB
Watchdog Timer
256 levels
Expansion
Mini PCI-E
Form Factor
CPU Card
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C (32CF~140CF)
Ordering Info
IB895 Intel Atom D2550 1.86GHz 3.5-inch Disk Size SBC w/ VGA, DVI & LVDS (24-bit dual channel, dual PCI-E Gigabit LAN, mSATA, iSMART, EuP/ErP compliant IB895N Intel Atom N2600 1.6GHz 3.5-inch Disk Size SBC w/ VGA, DVI & LVDS (24-bit dual channel, dual PCI-E Gigabit LAN, mSATA, iSMART, EuP/ErP compliant HSIB895-BGA Heatsink for IB895 HSIB895-BGA-2 Heat spreader for IB895 IB68 Cable kit for IB895 series, w/ USB, COM, power, SATA + power
Power Input
Single Voltage
Processor
Intel
Storage Temperature
-20C~80C (-4CF~176CF)
The iBASE IB895 Industrial Single Board Computer is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the IB895 is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the iBASE IB895 Industrial Single Board Computer across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial SBC, Rugged SBC, Single Board Computer fits your specific needs, please contact us.
The iBASE IB895 Industrial Single Board Computer comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE IB895 Industrial Single Board Computer, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE IB895 Industrial Single Board Computer or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
