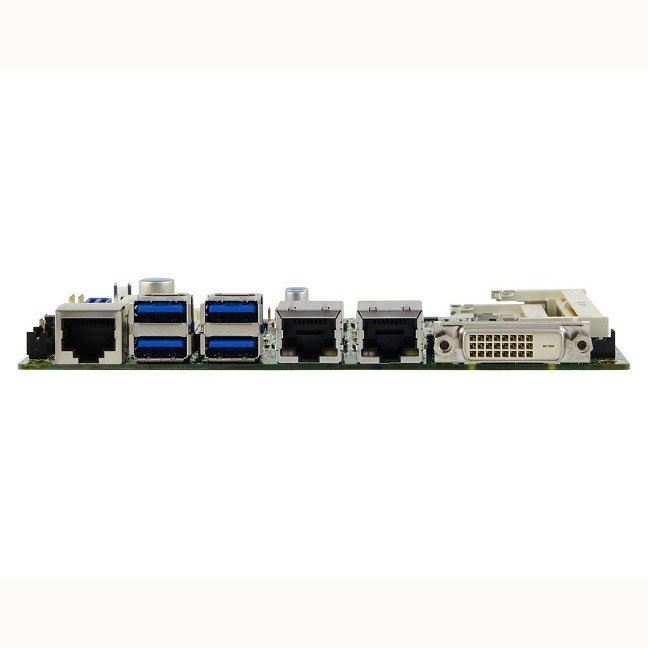

iBASE IB899 Industrial Single Board Computer
The IB899 3.5-inch disk-size SBC serves as a platform for various embedded applications. The IB899 single board computer is available with either the Intel quad-cored Intel Pentium N3710 running up to 2.4GHz or Celeron N3010 processor with a speed of 2.08GHz maximum, and two DDR3L SO-DIMM sockets that fit up to 8GB of system memory.
IB899 Features
- Original OEM Module
- Rohs Compliant, CE
- Supports VGA, Displayport and 24-Bit Dual Channel Lvds
- 1X Intel I210It PCI-E Gigabit Lan
- Watchdog Timer, Digital I/O, Msata, ISMART 3.1
- 4X USB 2.0, 1X USB 3.0, 2X Com, 2X SATA Ii,
- 3X Mini PCI-E Slots (2X Full-Size, 1X Half Size)
- Wide Operating Temperature Support
Request a Quote
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
RoHS Compliant, CE
Dimensions
102mm x 147mm (4ﾀﾜ x 5.8ﾀﾜ)
Audio
Intel Pentium SoC built-in HD audio controller + Realtek ALC662 codec
BIOS
AMI BIOS
Display Interface
Supports DVI-D, CRT 24-bit dual channel LVDS
Expansion Slots
2x Mini PCI-E (1x full-sized, 1x half-sized)
Form Factor FILTER
3.5" SBC
H/W Monitor
Yes
I/O Chipset
Nuvoton NCT5523D 1x RS-232/422/485(Jumperless selection) 1x RS232
LAN Connector
2x RJ-45 on board
LAN Controller
2x Intel I211-AT PCI-E Gigabit LAN
Others
Digital I/O, +9V~ +24V DC-in., iSMART
SSD
1x mSATA
System Memory
2x DDR3 SO-DIMM socket Max. 8GB
System Speed
1.33GHz
USB
4 ports USB 3.0 on board 2 ports USB 2.0 via pin header
VGA Controller
Intel Pentium SoC integrated Gen8 graphics
VGA Memory
Shared memory
Watchdog Timer
256 levels
Expansion
Mini PCI-E
Form Factor
CPU Card
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C ( 32CF~140CF)
Ordering Info
IB899F-371 Intel Pentium N3710(2.56GHz) on board, 3.5-inch Disk-sized SBC, w/ dual PCI-E GbE LAN, CRT, DVI-D & LVDS (24-bit LVDS dual channel), mSATA, iSMART, IB899F-301 Intel Celeron N3000(2.24GHz) on board, 3.5-inch Disk-sized SBC, w/ dual PCI-E GbE LAN, CRT, DVI-D & LVDS (24-bit LVDS dual channel), mSATA, iSMART HSIB899-BGA-A Heatsink for IB899 IB81 Cable kit for IB899, w/ USB, COM, power, SATA + power, VGA, Audio
Power Input
Wide Range
Processor
Intel
Storage Temperature
-20C~80C (-4CF~176CF)
The iBASE IB899 Industrial Single Board Computer is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the IB899 is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the iBASE IB899 Industrial Single Board Computer across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial SBC, Rugged SBC, Single Board Computer fits your specific needs, please contact us.
The iBASE IB899 Industrial Single Board Computer comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE IB899 Industrial Single Board Computer, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE IB899 Industrial Single Board Computer or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE IB899 Industrial Single Board Computer?
If you have any questions about the iBASE IB899 please get in touch today, our team of technical experts are ready to assist you.
