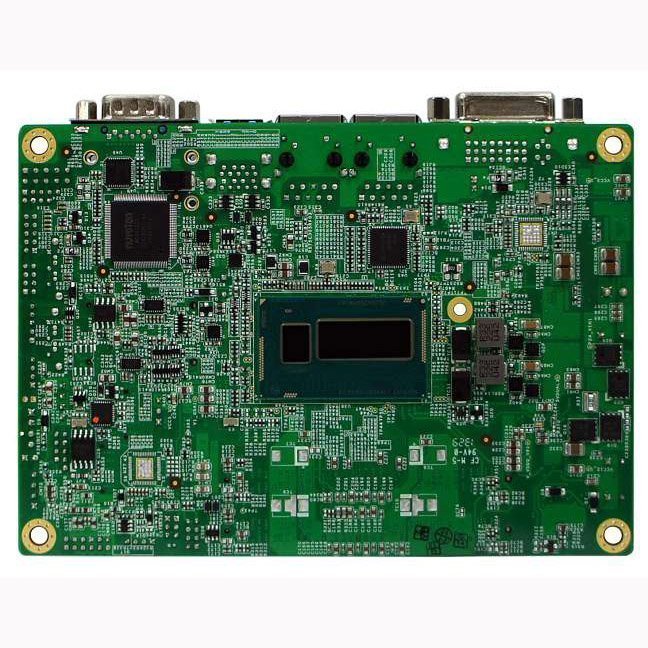

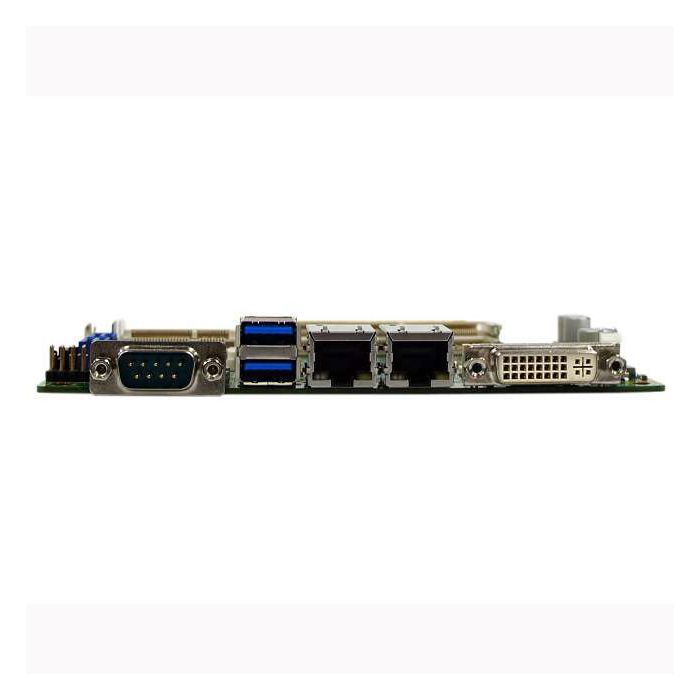

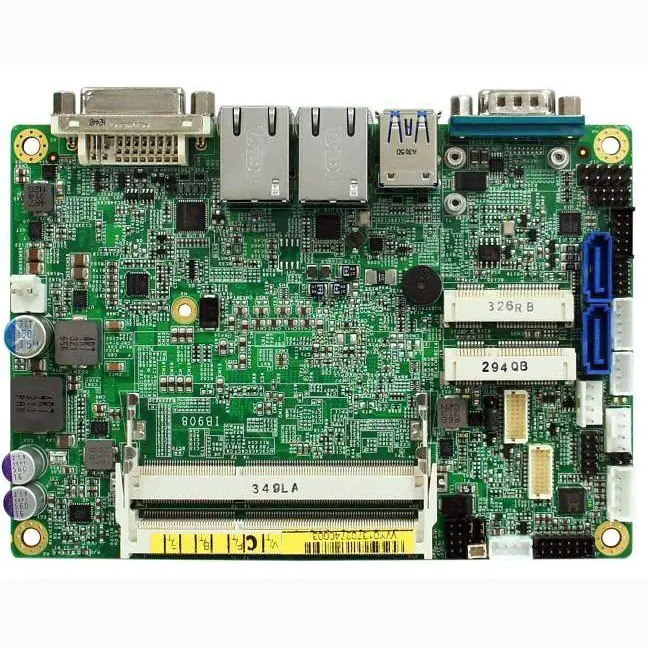

iBASE IB908 Industrial Single Board Computer
The IB908 is a compact SBC supports 4th Generation Intel Core processor family U-series with BGA1168 (MCP) socket that offers significantly lower power design compared to previous generations. The IB908 is the ideal platform for demanding applications in space-limited environments requiring low power, flexible expansion and superior performance, such as industrial automation, communications and POS/Kiosk.
IB908 Features
- Original OEM Module
- Rohs Compliant, CE
- ISMART - For Eup/Erp Power Saving, Auto-Scheduler and Power Resume
- Supports DVI-I and Lvds( 24-Bit Dual Channel)
- Dual Gigabit Lan
- Watchdog Timer
- 6X USB 2.0, 2X USB 3.0, 2X Com, 2X SATA Iii
Request a Quote
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
RoHS Compliant, CE
Dimensions
102mm x 147mm (4" x 5.8")
Audio
4th Generation Intel Core i U-series processor built-in HD audio controller w/ Realtek ALC269Q-VC2-GR Codec w/ class-D speaker amplifier
BIOS
AMI BIOS
Display Interface
Supports DVI-I and 24-bit dual channel LVDS
Expansion Slots
2x Mini PCI-E (1x full-sized, 1x half-sized)
Form Factor FILTER
3.5" SBC
H/W Monitor
Yes
I/O Chipset
Nuvoton NCT6102D 1x RS-232/422/485 (Jumperless selection) 1x RS232, 2x SATA III
LAN Connector
2x RJ-45 on board
LAN Controller
IB908AF: Intel I218LM LAN PHY IB908F: Intel I218V LAN PHY Intel I211AT PCI-E Gigabit LAN (as 2nd LAN)
Others
Digital I/O, +9V~ +24V DC-In, iSMART
SSD
2x mSATA
System Memory
2x DDR3L-1600 SO-DIMM, Max 16GB (Non-ECC)
System Speed
1.0GHz
USB
2 ports USB3.0 on board 2 ports USB2.0 via pin header
VGA Controller
4th Generation Intel Core i U-series processor integrated graphics
VGA Memory
Shared memory
Watchdog Timer
256 levels
Expansion
Mini PCI-E
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C (32CF~140CF)
Ordering Info
IB908AF-4650 Intel Core i7-4650U(1.7GHz) 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, DVI-I & LVDS(24-bit LVDS dual channel), mSATA, iSMART, iAMT (9.5) IB908AF-4300 Intel Core i5-4300U(1.9GHz) 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, DVI-I & LVDS(24-bit LVDS dual channel), mSATA, iSMART, iAMT (9.5) IB908F-2980 Intel Celeron 2980U(1.6GHz) 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, DVI-I & LVDS (24-bit LVDS dual channel), mSATA, iSMART IB75 Cable kit IB908/IB909 series ,w/ SATA+power cablle, USB, COM, power cable HSIB908-BGA Heatsink for IB909/IB908 HSIB908-BGA-2 Heat spreader for IB909/IB908
Power Input
Wide Range
Processor
Intel
Storage Temperature
-20C~80C (-4CF~176CF)
The iBASE IB908 Industrial Single Board Computer is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the IB908 is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the iBASE IB908 Industrial Single Board Computer across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial SBC, Rugged SBC, Single Board Computer fits your specific needs, please contact us.
The iBASE IB908 Industrial Single Board Computer comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE IB908 Industrial Single Board Computer, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE IB908 Industrial Single Board Computer or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE IB908 Industrial Single Board Computer?
If you have any questions about the iBASE IB908 please get in touch today, our team of technical experts are ready to assist you.
Alternative Products
Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.
Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.
Browse through our related products and find the perfect match that complements your choice seamlessly.

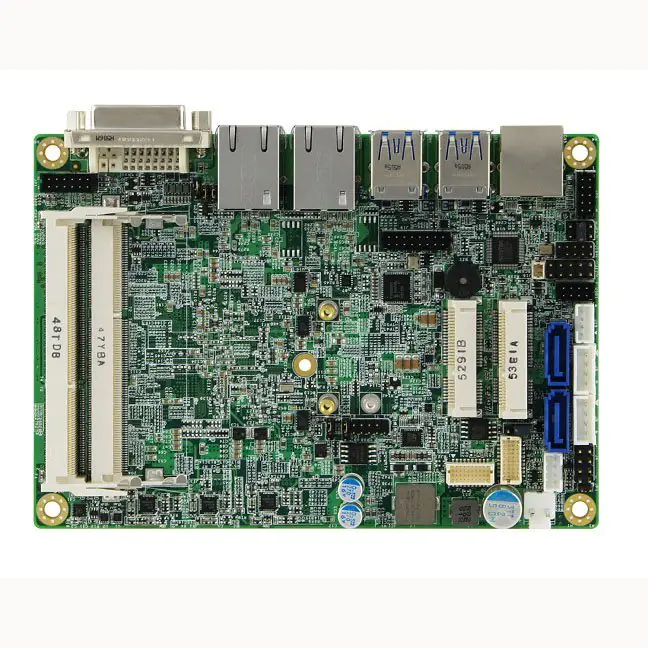

- Onboard Intel Atom E3825 DC /E3815 Sc Soc, 1.33/1.46GHz
- 1X DDR3L-1066 So-Dimm, Max. 4Gb
- Supports VGA, Displayport and 24-Bit Dual Channel Lvds

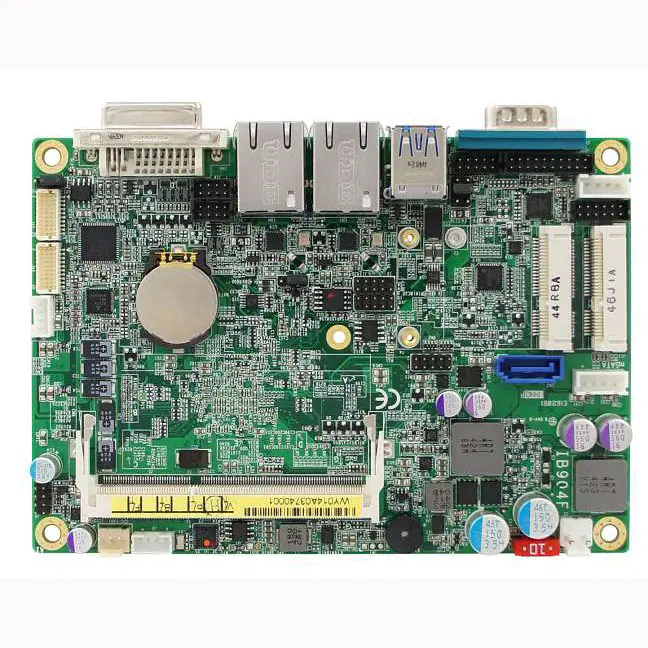

- Onboard Amd Embedded G-Series Soc
