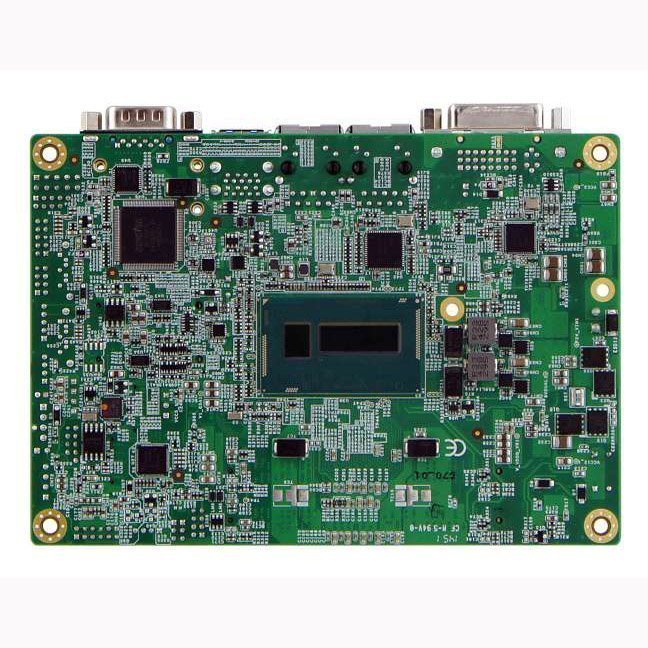

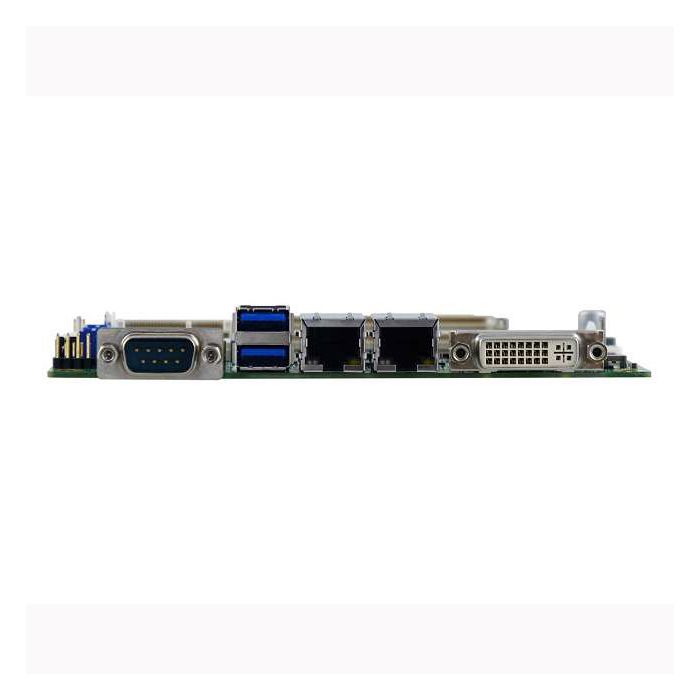

iBASE IB909 Industrial Single Board Computer
The IB909 series is a 3.5-inch disk size with onboard 5th Generation Intel Core I U-series processors. It offers a selection Intel processors manufactured on 14nm process technology namely, the Intel Core i7-5650U running 2.2GHz, the Intel Core i5-5350U processor (1.8GHz) and the Intel Core i3-5010U processor (2.1GHz). The IB909 single board computer is the ideal solution for applications in factory automation, medical, kiosk and networking markets, providing excellent performance and energy efficiency, as well as better 3D graphics than previous-generation counterparts.
IB909 Features
- Original OEM Module
- Rohs Compliant, CE
- ISMART - For Eup/Erp Power Saving, Auto-Scheduler and Power Resume
- Supports DVI-I and Lvds( 24-Bit Dual Channel)
- Dual Gigabit Lan
- Watchdog Timer
- 6X USB 2.0, 2X USB 3.0, 2X Com, 2X SATA Iii
Request a Quote
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
RoHS Compliant, CE
Dimensions
102mm x 147mm (4" x 5.8")
Audio
Intel 5th Generation Core i U-series processor built-in HD audio controller + Realtek ALC269Q-VC3 w/class-D speaker amplifier
BIOS
AMI BIOS
Display Interface
Support DVI-I and 24-bit dual channel LVDS
Expansion Slots
2x Mini PCI-E (1x full-sized, 1x half-sized)
Form Factor FILTER
3.5" SBC
H/W Monitor
Yes
I/O Chipset
Nuvoton NCT6102D 1x RS-232/422/485(Jumperless selection), 1x RS232, 2x SATA III
LAN Connector
2x RJ-45 on board
LAN Controller
IB909AF: Intel I218LM LAN PHY IB909F: Intel I218V LAN PHY Intel I211AT PCI-E Gigabit LAN(as 2nd LAN)
Others
Digital I/O, +9V~ +24V DC-in, iSMART
SSD
2x mSATA
System Memory
2x DDR3L-1600 SO-DIMM, Max 16GB (Non-ECC)
System Speed
1.0GHz
USB
2 ports USB3.0 on board 2 ports USB2.0 on via pin header
VGA Controller
5th Generation Intel Core i U-series processor integrated Gfx
VGA Memory
Shared memory
Watchdog Timer
256 levels
Expansion
Mini PCI-E
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C (32CF~140CF)
Ordering Info
IB909AF-5650 Intel Core i7-5650U(2.2GHz) 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, DVI-I & LVDS(24-bit LVDS dual channel), mSATA, iSMART, iAMT(1.0) IB909AF-5350 Intel Core i5-5350U(1.8GHz) 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, DVI-I & LVDS(24-bit LVDS dual channel), mSATA, iSMART, iAMT(1.0) IB909F-5010 Intel Core i3-5010U(2.1GHz)3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, DVI-I & LVDS(24-bit LVDS dual channel), mSATA, iSMART HSIB908-BGA Heatsink for IB909/IB908 HSIB908-BGA-2 Heat spreader for IB909/IB908 IB75 Cable kit IB908/IB909 series ,w/ SATA+power cablle, USB, COM, power cable
Power Input
Wide Range
Processor
Intel
Storage Temperature
-20C~80C (-4CF~176CF)
The iBASE IB909 Industrial Single Board Computer is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the IB909 is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the iBASE IB909 Industrial Single Board Computer across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial SBC, Rugged SBC, Single Board Computer fits your specific needs, please contact us.
The iBASE IB909 Industrial Single Board Computer comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE IB909 Industrial Single Board Computer, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE IB909 Industrial Single Board Computer or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE IB909 Industrial Single Board Computer?
If you have any questions about the iBASE IB909 please get in touch today, our team of technical experts are ready to assist you.
