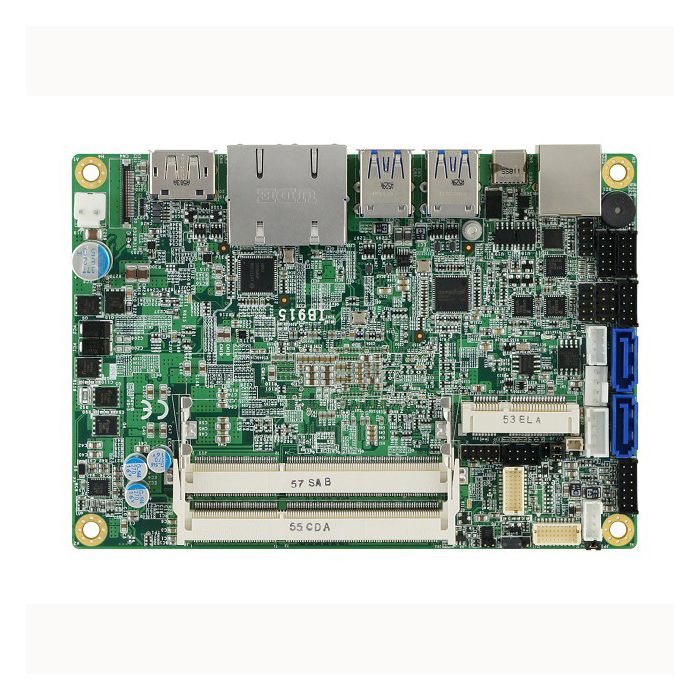

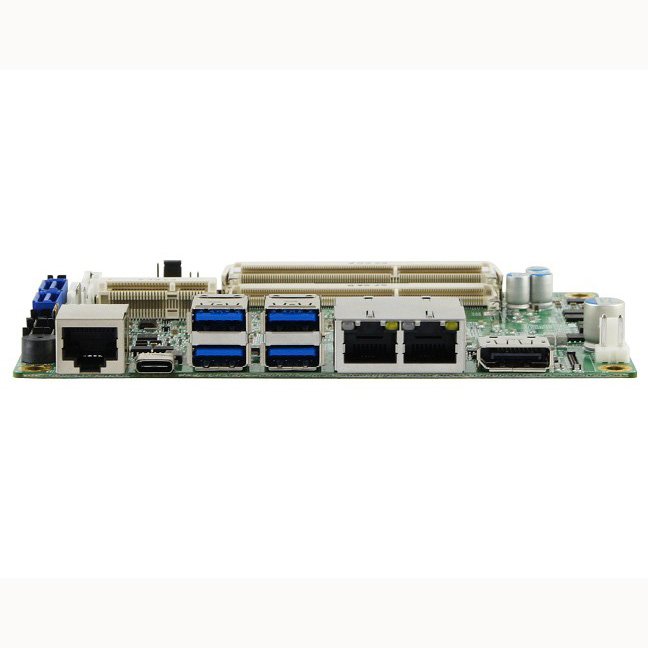

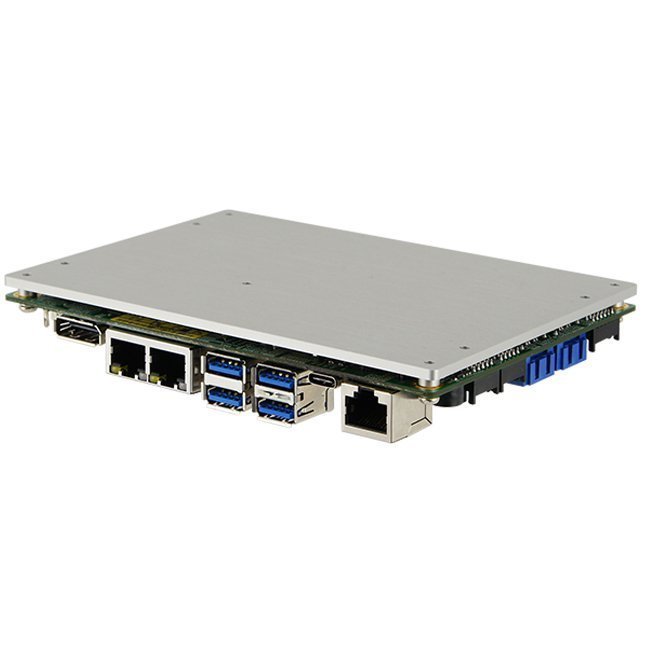

iBASE IB915 Industrial Single Board Computer
The IB915 3.5-inch disk size supports 6th Generation Intel Core U-series processors and offers a selection Intel processors manufactured on 14nm process technology namely, the Intel Core i7-6600U running 2.6GHz, the Intel Core i5-6300U processor (2.4GHz) and the Intel Core i3-6100U processor (2.3GHz). The IB915 single board computer is the ideal solution for applications in factory automation, medical, kiosk and networking markets, providing excellent performance and energy efficiency, as well as better 3D graphics than previous-generation counterparts.
IB915 Features
- Original OEM Module
- Rohs Compliant, CE
- ISMART - For Eup/Erp Power Saving, Auto-Scheduler and Power Resume
- Supports DVI-I and Lvds( 24-Bit Dual Channel)
- Dual Gigabit Lan
- Watchdog Timer
- 6X USB 2.0, 2X USB 3.0, 2X Com, 2X SATA Iii
Request a Quote
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
RoHS Compliant, CE
Dimensions
102mm x 147mm (4" x 5.8")
Audio
6th Generation Intel Core U-series processor built-in HD audio controller + Realtek ALC662 codec
BIOS
AMI BIOS
Display Interface
Supports eDP, DisplayPort and 24-bit dual channel LVDS
Expansion Slots
1x Mini PCI-E (Full-sized)
Form Factor FILTER
3.5" SBC
H/W Monitor
Yes
I/O Chipset
Fintek F81846AD-I_x005F_x000D_ 1x RS-232/422/485(Jumperless selection),_x005F_x000D_ 3x RS232, 2x SATA III
LAN Connector
2x RJ-45 on board
LAN Controller
IB915AF: Intel I219LM LAN PHY_x005F_x000D_ IB915F: Intel I219V LAN PHY_x005F_x000D_ Intel I211AT PCI-E Gigabit LAN(as 2nd LAN)
Others
Digital I/O, +9V~ +24V DC-in, iSMART
SSD
1x mSATA
System Memory
2x DDR3L-1600 SO-DIMM, _x005F_x000D_ Max 16GB (Non-ECC)
System Speed
up to 3.4GHz
USB
4 ports USB3.0 on board_x005F_x000D_ 2 ports USB2.0 on via pin header
VGA Controller
6th Generation Intel Core U-series processor integrated Gfx
VGA Memory
Shared memory
Watchdog Timer
256 levels
Expansion
Mini PCI-E
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C (32CF~140CF)
Ordering Info
IB915AF-6600 Intel Core i7-6600U(2.6GHz/3.4GHz) 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, eDP, DP & LVDS_x005F_x000D_ (24-bit LVDS dual channel), mSATA, iSMART, iAMT(11.0)_x005F_x000D_ IB915AF-6300 Intel Core i5-6300U(2.4GHz/3GHz) 3.5-inch Disk Size SBC w/dual PCI-E GbE LAN, eDP, DP & LVDS_x005F_x000D_ (24-bit LVDS dual channel), mSATA, iSMART, iAMT(11.0)_x005F_x000D_ IB915F-6100 Intel Core i3-6100U(2.3GHz) 3.5-inch Disk Size SBC w/dual PCI-E GbE LAN, eDP, DP & LVDS(24-bit LVDS dual channel), mSATA, iSMART_x005F_x000D_ IB915F-3955 Intel Celeron 3955U (2GHz) 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, eDP, DP & LVDS(24-bit LVDS dual channel), mSATA, iSMART
Power Input
Wide Range
Processor
Intel
Storage Temperature
-20C~80C (-4CF~176CF)
The iBASE IB915 Industrial Single Board Computer is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the IB915 is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the iBASE IB915 Industrial Single Board Computer across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial SBC, Rugged SBC, Single Board Computer fits your specific needs, please contact us.
The iBASE IB915 Industrial Single Board Computer comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE IB915 Industrial Single Board Computer, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE IB915 Industrial Single Board Computer or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
