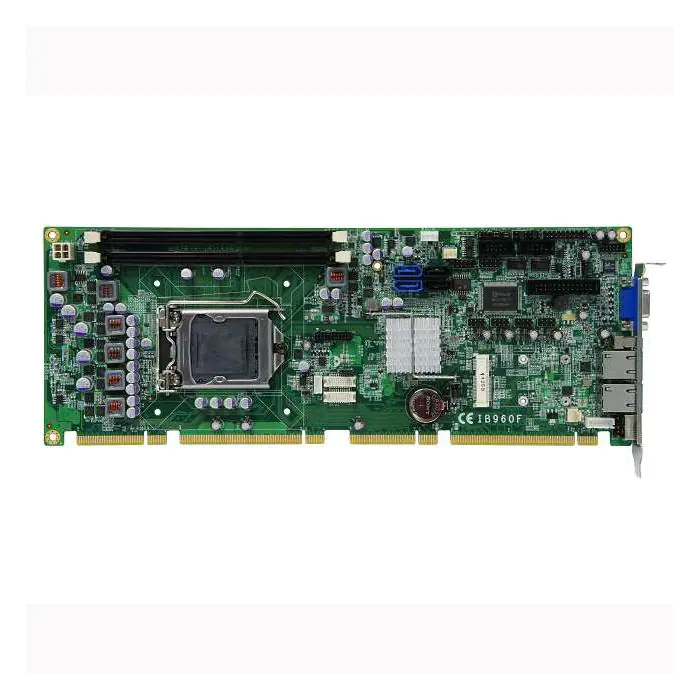

iBASE IB960 CPU Card
The IB960 is a PICMG 1.3 full-size CPU card supporting Intel’s 2nd generation Core i7, Core i5 and Core i3 processors on the cards LGA 1155 socket. All of these processors come integrated with high-performance graphics processing unit that works with the IB960’s video outputs including VGA CRT, DVI-D and 24-bit dual channel LVDS interface.
IB960 Features
- Original OEM Module
- Rohs Compliant, CE
- ISMART - For Eup/Erp Power Saving, Auto-Scheduler and Power Resume
- Supports DVI-I and Lvds( 24-Bit Dual Channel)
- Dual Gigabit Lan
- Watchdog Timer
- 6X USB 2.0, 2X USB 3.0, 2X Com, 2X SATA Iii
Request a Quote
Certifications
RoHS Compliant, CE
Dimensions
338mm x 126mm (13.31" x 4.96")
Audio
Intel Q67 PCH built-in HD audio controller + Realtek ALC662 codec for 5.1CH
BIOS
AMI
Display Interface
Supports CRT, DVI-D and 24-bit dual channel LVDS interface
Expansion Slots
1x Mini PCI-E
Form Factor FILTER
CPU Card
H/W Monitor
Yes
I/O Chipset
Winbond W83627DHG-P 1x KB, 1x mouse, 1x RS232, 1x RS232/422/485, 2x SATA II, 2x SATA III, 1x LPT
LAN Connector
RJ-45 on board
LAN Controller
Intel 82579V Gigabit LAN PHY Intel 82583V PCI-E Gigabit LAN
Others
Digital I/O (4-in/4-out), IrDA, RAID
SSD
N/A
System Memory
2x DDR3 DIMM, Max. 16GB (Non-ECC)
System Speed
up to 3.4GHz
USB
1 port on board Pin headers for 8 ports (USB 2.0)
VGA Controller
3rd Generation Intel Core i7/i5/i3 / Pentium QC/DC processor integrated graphics Gen 5.7
VGA Memory
Max. shared memory 1024MB
Watchdog Timer
256 levels
Expansion
Mini PCI-E
Form Factor
CPU Card
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C (32CF~140CF)
Ordering Info

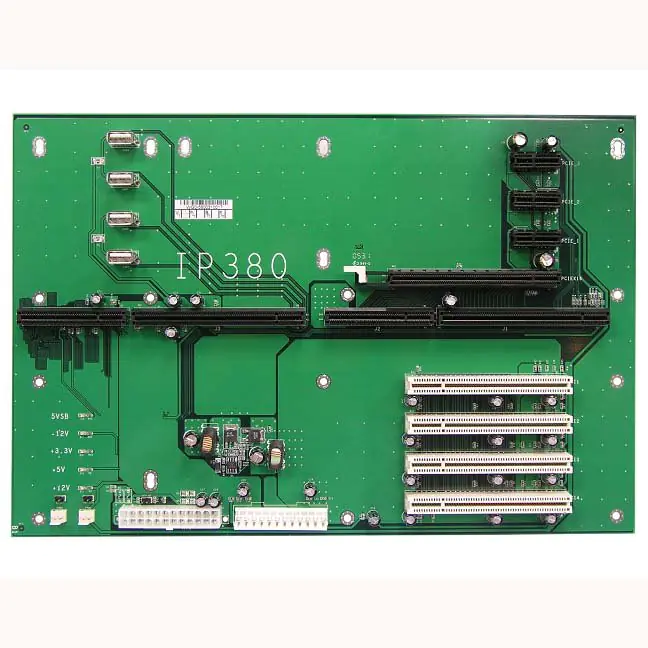

IB960F LGA1155 PICMGï¾®1.3 Q67 Full-Size CPU Card w/ VGA, DVI-D, 24-bit LVDS, dual Gigabit LAN IP380L PICMG 1.3 Backplane w/ 1x PCI-E (x16), 3x PCI-E (x1)
Power Input
Wide Range
Processor
Intel
Storage Temperature
-20C~80C (-4CF~176CF)
