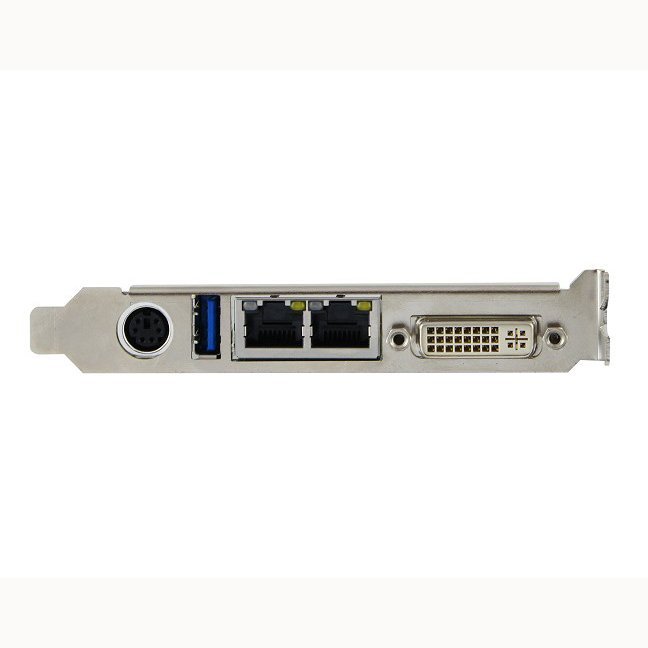

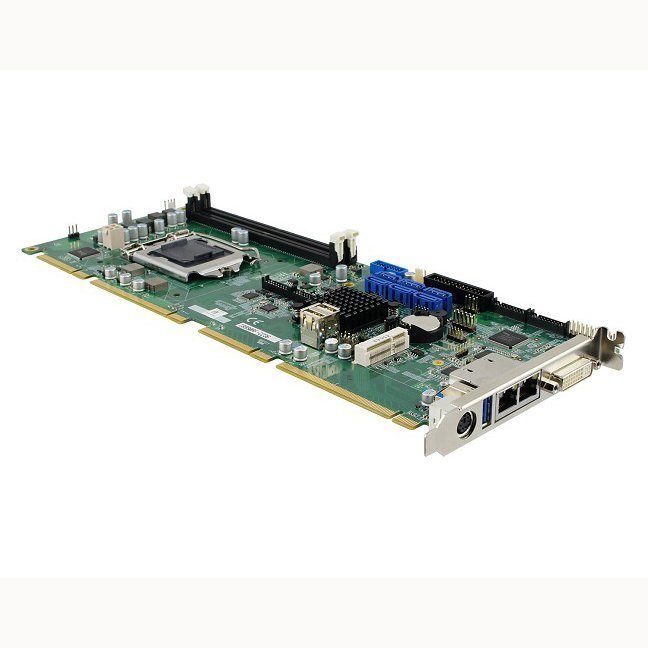

iBASE IB990 CPU Card
6th Generation Intel Xeon E3/Core i7/i5/i3/ Pentium QC/DC Processor, up to 4.0 GHz
IB990 Features
- 2X Ddr4- 2133 Dimm, Max. 32Gb, Ecc Compatible
- Intel Processor Integrated Graphics DeviCE, Supports DVI-I, Crt, DVI-D
- 2X Intel PCI-E Gigabit Lan
- 3X USB3.0, 2X USB2.0, 4X Com, 6X SATA Iii
- 1X Mini PCI-E Slot
- Watchdog Timer, Digital I/O, Iamt(11.0)
Request a Quote
Certifications
RoHS Compliant, CE
Dimensions
338mm x 126mm (13.31" x 4.96")
Audio
Intel C236 PCH built-in HD audio controller + Realtek ALC662 w/ 5.1 channel
BIOS
AMI BIOS
Display Interface
Support DVI-I, VGA, DVI-D
Expansion Slots
1x Mini PCI-E
Form Factor FILTER
3.5" SBC
H/W Monitor
Yes
I/O Chipset
Fintek F81846AD-I 1x RS-232/422/485(Jumperless selection) 3x RS232, 6x SATA III, 1x LPT
LAN Connector
2x RJ-45 on board
LAN Controller
Intel I219LM Gigabit LAN PHY Intel I211AT PCI-E Gigabit LAN( as 2nd LAN)
Others
Digital I/O (4-in/4-out), RAID, iAMT (11.0)
SSD
N/A
System Memory
2 x DDR4-2133 DIMM, Max 32GB (ECC compatible)
USB
3 ports x USB3.0 on board 2 ports x USB2.0 via pin header 1 port x USB2.0 via Mini PCI-E
VGA Controller
6th Generation Intel Core DT Xeon E3 & Core i7/i5/i3/Pentiumï¾®/ Celeron integrated graphics
VGA Memory
Max. shared memory 1024MB
Watchdog Timer
256 levels
Expansion
Mini PCI-E
Form Factor
CPU Card
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C ~ 60C (32CF ~ 140CF)
Ordering Info
IB990AF-C236 LGA1151 C236 PICMG 1.3 Full-Size CPU Card w/ DVI-I, VGA, DVI-D, dual Gigabit LAN, iAMT (11.0), 6 x SATA III IB990AF LGA1151 Q170 PICMG 1.3 Full-Size CPU Card w/ DVI-I, VGA, DVI-D, dual Gigabit LAN, iAMT (11.0), 4x SATA III
Processor
Intel
Storage Temperature
-20C ~ 80C (-4CF ~ 140CF)
The iBASE IB990 CPU Card is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the IB990 is commonly used:
These examples highlight the versatility of the iBASE IB990 CPU Card across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this CPU Card fits your specific needs, please contact us.
The iBASE IB990 CPU Card comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE IB990 CPU Card, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE IB990 CPU Card or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE IB990 CPU Card?
If you have any questions about the iBASE IB990 please get in touch today, our team of technical experts are ready to assist you.
