iBASE IP409 CPU Card
Flex ATX COM Express (Type 6) Baseboard
IP409 Features
- Fintek F81846Ad-I Super I/O
- Watchdog Timer, 4-In / 4-Out Digital I/O
- 1X PCI-E(X16) , 1X PCI-E(X4), 2X PCI-E(X1), 1X Mini PCI-E Expansion Slots

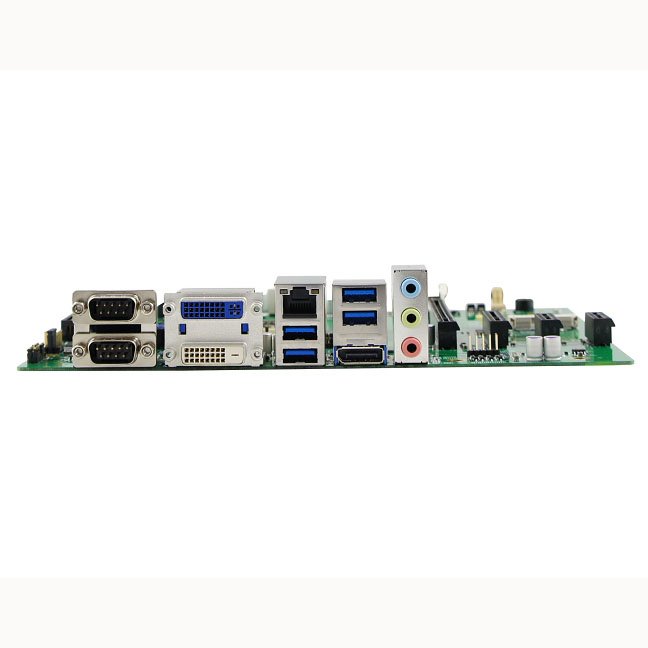

- Edge Connectors For 2X Com (From Onboard Super I/O), DVI-I, DVI-D, RJ45+ Dual USB (3.0), Displayport + Dual USB (3.0), Audio Connector (Line-Out, Line-In & Mic.)
- Onboard Headers
- ATX Power Connector
- 190mm X 228mm
- ATX Power Connector
- 190 X 228mm
Request a Quote
Certifications
RoHS Compliant, CE
Dimensions
338mm x 126mm (13.31" x 4.96")
Audio
Intel C236 PCH built-in HD audio controller + Realtek ALC662 w/ 5.1 channel
BIOS
AMI BIOS
Display Interface
Support DVI-I, VGA, DVI-D
Expansion Slots
1x Mini PCI-E
Form Factor FILTER
Baseboard
H/W Monitor
Yes
I/O Chipset
Fintek F81846AD-I 1x RS-232/422/485(Jumperless selection) 3x RS232, 6x SATA III, 1x LPT
LAN Connector
2x RJ-45 on board
LAN Controller
Intel I219LM Gigabit LAN PHY Intel I211AT PCI-E Gigabit LAN( as 2nd LAN)
Others
Digital I/O (4-in/4-out), RAID, iAMT (11.0)
SSD
N/A
System Memory
2 x DDR4-2133 DIMM, Max 32GB (ECC compatible)
USB
3 ports x USB3.0 on board 2 ports x USB2.0 via pin header 1 port x USB2.0 via Mini PCI-E
VGA Controller
6th Generation Intel Core DT Xeon E3 & Core i7/i5/i3/Pentiumï¾®/ Celeron integrated graphics
VGA Memory
Max. shared memory 1024MB
Watchdog Timer
256 levels
Expansion
Mini PCI-E
Form Factor
CPU Card
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C ~ 60C (32CF ~ 140CF)
Ordering Info
IP409 Flex ATX COM Express(Type 6) baseboard
Processor
Intel
Storage Temperature
-20C ~ 80C (-4CF ~ 140CF)
