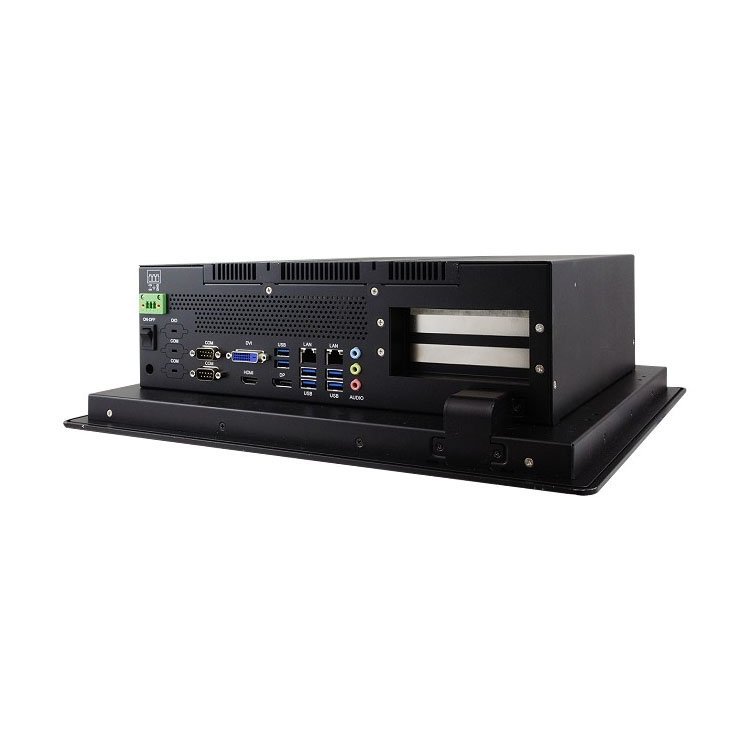

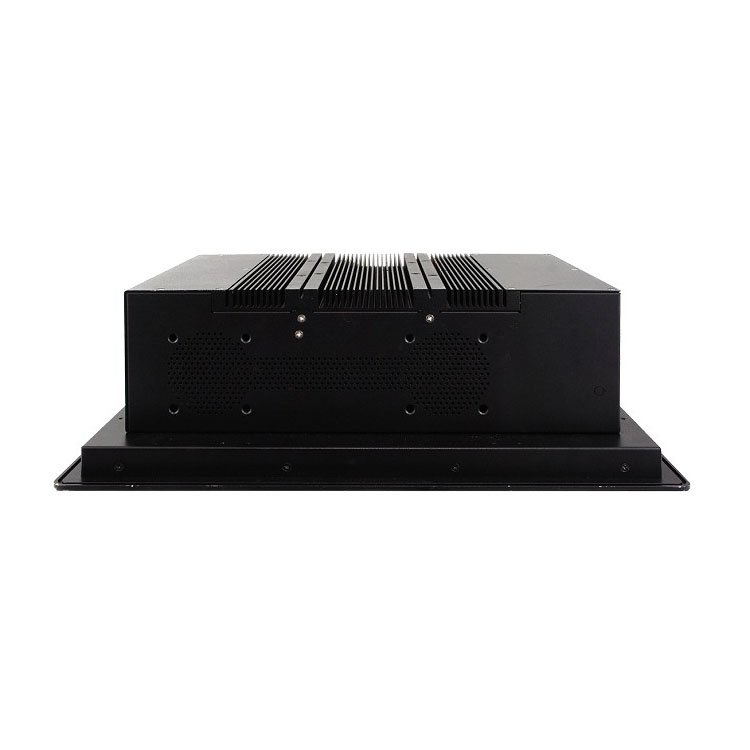

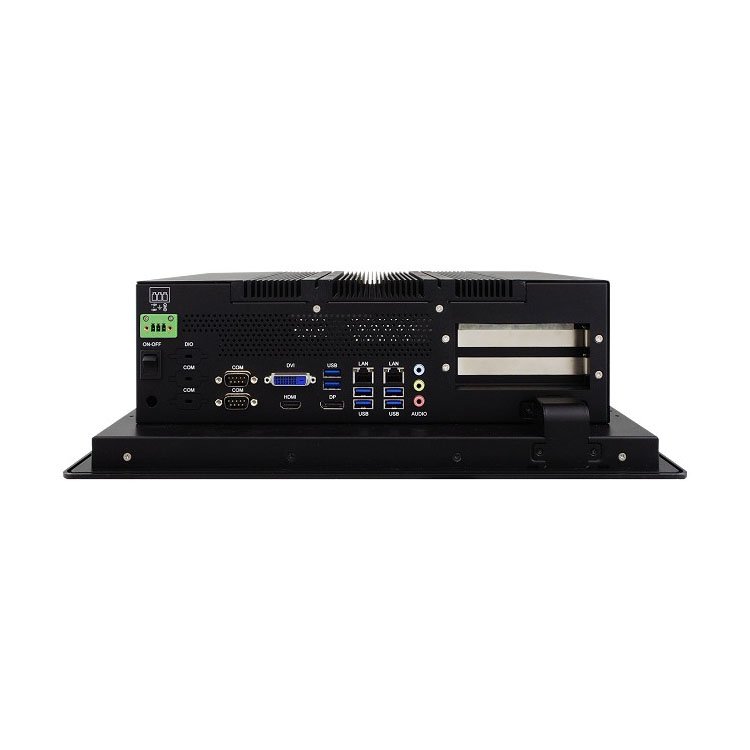

iBASE IPPC1505-RE Panel PC
IPPC Core-series are expandable Panel PCs powered by 7th/6th Generation Intel ® Core „¢ processors and available in 15-inch (IPPC1505-RE), 17-inch (IPPC1705-RE), and 19-inch (IPPC1905-RE) touchscreen displays to perform a variety of tasks. These fanless units come with state-of-the-art features, combining connectivity with flexible I/O and high reliability for factory automation, machine automation and other harsh indoor applications.
These multi-function Panel PCs are designed for easy construction and integration into existing systems while providing a rich set of I/O interfaces with two Gigabit Ethernet that supports EtherCAT master, six USB 3.0, one RS232/422/485, and one USB 2.0 port at the front bezel. Current models are installed with an Intel ® Core „¢ i7-6822EQ, Intel ® Core „¢ i5-6442EQ or Intel ® Core „¢ i3-6102E processor and 4GB of system memory, expandable to 32GB. Expansion comes in the form of two PCI-E x8, an M.2 M Key, and a mini PCI-E slot.
The panel computers have IP65 rating on the front side and uses VESA/Panel mounting. Built with a 64GB SSD drive, it supports an operating temperature of up to 50C and power input of 12V/24V DC. Other advanced features include a 4-in/4-out digital I/O and IBASE ™s iSMART green technology with EuP/Erp power saving, auto power on/off scheduler and power resume functions.
IPPC1505-RE Features
- 6th Generation Intel® Core™ processors (optional 7th Gen)
- Fanless design
- IP65 Front-panel Waterproof Protection
- Front side accessible USB port
- Two PCI-E x8 expansion slots
- Rich and flexible I/O interface
Request a Quote
Product Type
Format
IP Rating
Processor
Manufacturer
Country Of Manufacture
Case Material
Robust Metal Case
Certifications
CE/FCC class B +LVD
Dimensions
442 x 377 x 132.8mm
Housing Colour
Black
Humidity
10%~90% @40°C (non-condensing)
Operating System
Linux,Windows
Operating Temperature
0°C~ 40°C (with HDD), 0°C~ 50°C (with SSD)
Ordering Info
- _x005F_x000D_
- IPPC1505-RE-I7 15†Industrial Panel PC, 6th Gen Intel® Core™ i7-6822EQ, 4GB DDR4 RAM, 64G SATA SSD, resistive touch, 2 x PCI-E x8 slots, with power adaptor _x005F_x000D_
- _x005F_x000D_
- IPPC1505-RE-I5 15†Industrial Panel PC, 6th Gen Intel® Core™ i5-6442EQ, 4GB DDR4 RAM, 64G SATA SSD, resistive touch, 2 x PCI-E x8 slots, with power adaptor _x005F_x000D_
- _x005F_x000D_
- IPPC1505-RE-I3 15†Industrial Panel PC, 6th Gen Intel® Core™ Core™ i3-6102E, 4GB DDR4 RAM, 64G SATA SSD, resistive touch, 2 x PCI-E x8 slots, with power adaptor _x005F_x000D_
Additional Graphics
1 x DVI-D_x005F_x000D_ 1 x DP_x005F_x000D_ 1 x HDMI (1.4)
Audio
1 x 3.5 mm phone jack for line -out
Backlight Lifetime(hrs)
50000
Chassis Material
Aluminus and SGCC
Color(Front/Back)
Black/Black
Contrast
25.000694444444
Digital I/O
Optional 4-in/4-out GPIO
Display Interface
15†Resistive Touchscreen
Display Type
15†Resistive Touchscreen
Expansion Slot
2 x PCI-E x8
HDD
2 x 2.5†HDD space default one 64GB SSD
LAN
2 x GbE LAN
Light Transmission (%)
79
Luminance (cd/m2)
420
Max. Color
16.2M
Max. Resolution
1024 x 768
Memory
Max. 32GB, Default 4GB
Mounting
VESA 75 x75 /100x100
Operating System Support
Windows 7, Windows 10, 32-bit/64-bit, Linux Kernel 3+
Point of touch
1
Power
12V/24VDC
Power Button
Rock switch
Power Input
12V/24VDC
Processor, Chipset
IPPC1505-RE-I7 6th Gen Intel® Core™ i7-6822EQ_x005F_x000D_ IPPC1505-RE-I5 6th Gen Intel® Core™ i5-6442EQ_x005F_x000D_ IPPC1505-RE-I3 6th Gen Intel® Core™ Core™ i3-6102E
RS-232
1
RS-232/422/485 Selectable under BIOS
1
Thermal Design
Fanless
Touch Type
Resistive
USB
6 x USB 3.0_x005F_x000D_ 1 x USB 2.0 (Front Bezel)
USB 2.0
1 at front bezel
USB 3.0
6
View Angle (H/V)
160/160
Processor
Intel
Processor Type
Intel Core i3,Intel Core i5,Intel Core i7
Storage Temperature
-20°C~70°C
The iBASE IPPC1505-RE Panel PC is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the IPPC1505-RE is commonly used:
These examples highlight the versatility of the iBASE IPPC1505-RE Panel PC across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Panel PC, Rugged Panel PC fits your specific needs, please contact us.
The iBASE IPPC1505-RE Panel PC comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE IPPC1505-RE Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE IPPC1505-RE Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
