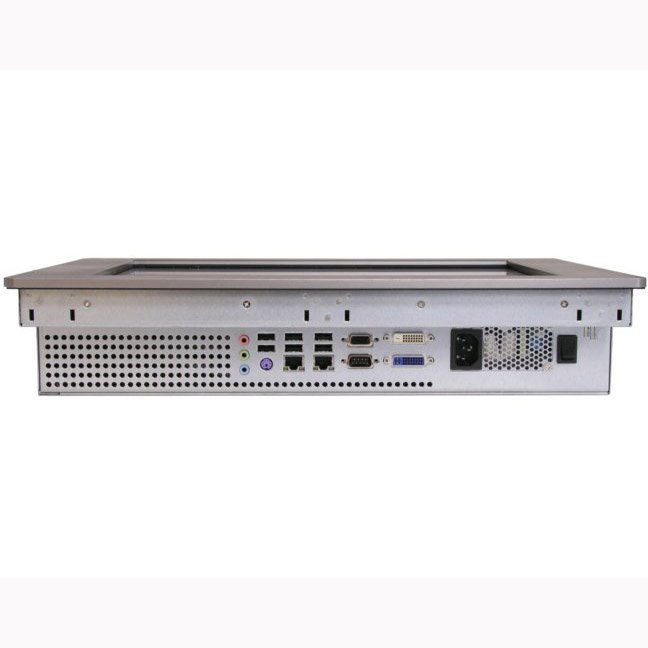

iBASE IPPC1700-RE Panel PC
The IPPC-1700 Panel PC is a full featured panel PC supporting IBASE MI953AF Mini-ITX motherboard with Socket G1 (rPGA 989) for Intel Core i7 / Core i5 processors. Delivering high performance and rugged computing, it is suitable for information kiosk, point-of-sales terminal, ATM, digital signage and factory automation systems.
IPPC1700-RE Features
- Featured Panel PC
- Rugged Construction
- IP65 Front Bezel
- Slim & Compact Design
Request a Quote
Product Type
Format
IP Rating
Operating System
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Dimensions
442 x 362 x 112.4
Humidity
90% Humidity Resistant
Operating System
Windows
Operating Temperature
0C ~ 40C
Ordering Info
IPPC-1700-RE 17ï¾€ï¾ Panel PC with MI953AF, Socket G1 for Intel Core i7/i5 CPU, 2x DDR3 SO-DIMM, Resistive Touch
Audio
1x RCAx3 for HD audio
Backlight Lifetime(hrs)
50000
Construction
Steel (SGCC)
Contrast
41.667361111111
Digital I/O
1x Digital I/O
Display Interface
2x DVI-D 1x VGA CRT
Display Type
17" TFT LCD
Expansion Slot
2x PCI Slot (optional)
HDD
Slim SATA Combo DVD (optional) 2.5" HDD (optional)
Interface
USB
Keyboard/Mouse
1x PS2 KB/MS
LAN
2x Gigabit LAN
Light Transmission (%)
80
Luminance (cd/m2)
380
Max. Color
16.7M
Max. Resolution
1280 x 1024
Membrane Control
None
Memory
2x DDR3 1066MHz SO-DIMM, Max. 8GB
Mounting
Panel and VESA 100x100mm Rack mount (optional)
Mounting Type Filter
VESA, Panel Mount
Onboard Expansion Bus
1x Mini PCI-E
Operating System Support
Windows Embedded Standard 7, Windows 7 Pro for Embedded
Power
AC inlet
Power Input
110V/220V AC-in
Processor, Chipset
Socket G1 (rPGA 989) for Intel Core i7 / CoreTM i5 processors
Removable Slot
None
Serial/Parallel
3x COM port
Touch Type
Resistive
Touch Type Filter
Resistive
USB
6x USB 2.0
View Angle (H/V)
160/160
Processor
Intel
Storage Temperature
-10C~60C
The iBASE IPPC1700-RE Panel PC is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the IPPC1700-RE is commonly used:
These examples highlight the versatility of the iBASE IPPC1700-RE Panel PC across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Panel PC, Rugged Panel PC fits your specific needs, please contact us.
The iBASE IPPC1700-RE Panel PC comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE IPPC1700-RE Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE IPPC1700-RE Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE IPPC1700-RE Panel PC or require a custom solution?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iBASE IPPC1700-RE or need a custom Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
