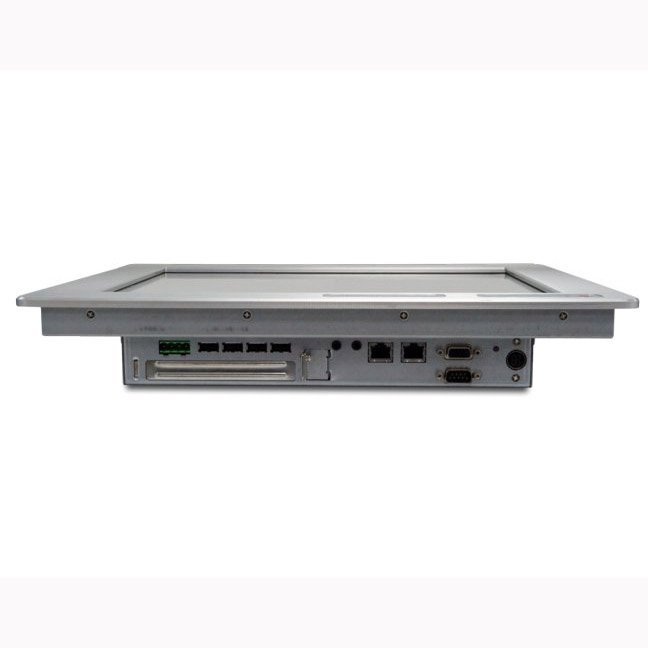

iBASE IPPC17A7-RE Panel PC
The modular Panel PC IPPC-17A7-RE is powered by the dual-core Intel Atom D2550 processor and best suited for deployment in POS, kiosks, medical as well as in industrial facilities. It uses a single system module that encloses the mainboard with a 17-inch display panel. This flexible combination of standardized units allows easy construction and affords better inventory control.
IPPC17A7-RE Features
- 17-Inch Panel PC
- Intel Atom Processor
- IP65 Front Bezel
- Long Life Rtc Battery
Request a Quote
Product Type
Format
IP Rating
Operating System
Processor
Manufacturer
Country Of Manufacture
Taiwan
Case Material
Aluminum
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Dimensions
430 x 365 x 73
Humidity
5%-90% @ 45C (non-condensing)
Operating System
Windows
Operating Temperature
0C~ 45C
Ordering Info
IPPC17A7-RE 17ï¾€ï¾ Modular Panel PC with resistive touch Intel Atom Processor D2550 CPU, 2GB DDR3 SO-DIMM, 320G HDD, 12V DC input, w/o power adaptor Power adaptor AC 90~240V input, 12V DC output 84W power adaptor IBASE P/N: A005PS084W0050000P
Additional Graphics
VGA
Audio
1x speaker-out microjack 1x Mic-in microjack
Backlight Lifetime(hrs)
50000
Built-in Speaker/MIC
None
Chassis Material
Aluminum front bezel and SGCC back cover with aluminum heat-sink
Construction
Aluminum & SGCC
Contrast
33.334027777778
Digital I/O
1x Digital I/O
Display Interface
1x VGA
Display Type
17" TFT-LCD
Expansion Slot
1x PCI slot
HDD
1x 2.5" SATA
Internal Expansion Bus
1x Mini PCI-E half/full size
Interface
USB
Keyboard/Mouse
None
LAN
2x GbE LAN
Light Transmission (%)
81
Luminance (cd/m2)
350
Max. Color
16.7M
Max. Resolution
1280 x 1024
Membrane Control
OSD Function Key 1 OSD Function Key 2
Memory
2x DDR3 1600MHz DIMM, Max. 16GB (Non-ECC)
Mounting
Panel and VESA 75x75mm / 100x100mm
Mounting Type Filter
VESA, Panel Mount
Onboard Expansion Bus
1x Mini PCI-E half/full size
Operating System Support
Windows Embedded Standard 7, Windows 7 Pro for Embedded
Point of touch
1
Power
1x DC power jack
Power Button
Rock switch
Power Input
12V DC input
Power Input Range
12V DC
Processor, Chipset
Intel Atom Process D2550 1M Cache, 1.86GHz
Removable Slot
None
RS-232/422/485 Selectable under BIOS
1
Serial/Parallel
1x COM1 RS-232/422/485
Thermal Design
Fanless
Touch Type
Resistive
Touch Type Filter
Resistive
USB
4x USB 2.0 (USB Host. A-Type)
USB 2.0
4
USB 3.0
0
View Angle (H/V)
170ï¾°/170ï¾°
Wireless
Optional Wi-Fi/BT
Processor
Intel
Storage Temperature
-20C~ 60C
The iBASE IPPC17A7-RE Panel PC is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the IPPC17A7-RE is commonly used:
These examples highlight the versatility of the iBASE IPPC17A7-RE Panel PC across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Panel PC, Rugged Panel PC fits your specific needs, please contact us.
The iBASE IPPC17A7-RE Panel PC comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE IPPC17A7-RE Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE IPPC17A7-RE Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE IPPC17A7-RE Panel PC or require a custom solution?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iBASE IPPC17A7-RE or need a custom Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
Alternative Products
Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.
Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.
Browse through our related products and find the perfect match that complements your choice seamlessly.

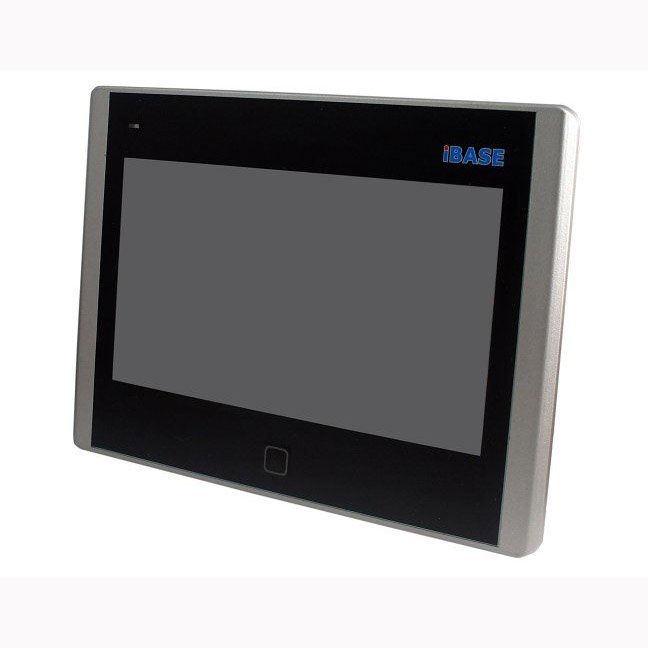

IPPC-H07
