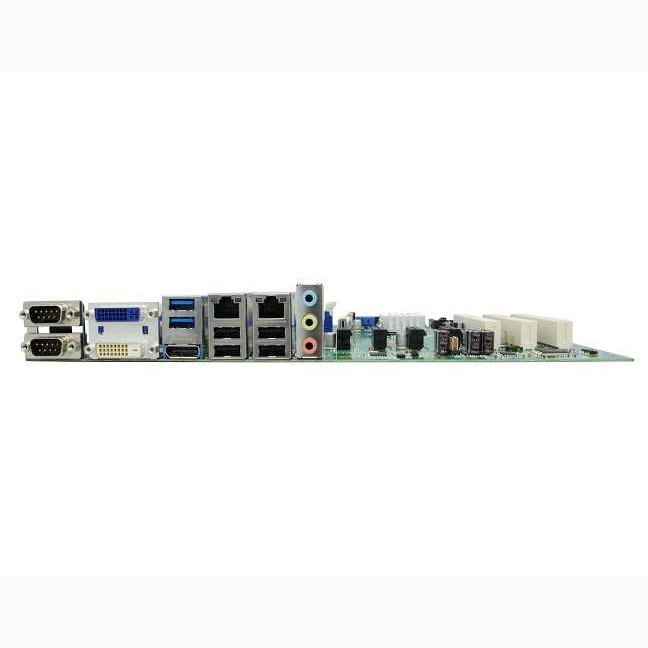

iBASE MB970 Industrial Motherboard
The MB970 ATX motherboard is based on the 3rd generation Intel Core processor and Intel Q77 Express chipset platform to provide the ideal solution for a diverse range of applications such as Gaming, POS, Kiosk, ATM, Multimedia and Digital Signage.
MB970 Features
- Original OEM Module
- Rohs Compliant, CE
- 12X PCI, 2X ISA
- Led Power Indicators For +5V, -5V, +12V, -12V, 3.3V, +5Vsb
- Size: 264.2mm X 311.2mm (10.4"X 12.3")
Request a Quote
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
RoHS Compliant, CE
Dimensions
305mm x 244mm (12" x 9.6")
Audio
Intel Q77/B75 PCH built-in HD audio + Realtek ALC892 codec
BIOS
AMI
Display Interface
Supports DVI-I, DVI-D and DisplayPort
Expansion Slots
1x ISA, 3x PCI, 1x PCI-E(x16), 3x PCI-E(x1)
Form Factor FILTER
ATX
H/W Monitor
Yes
I/O Chipset
Fintek F81846AD-I 3x RS232, 1x RS232/422/485, 4x SATA II, 2x SATA III (MB970VF), 5x SATA II, 1x SATA III (MB970F)
LAN Connector
RJ-45 on board
LAN Controller
Intel 82579LM(MB970VF)or 82579V(MB970F) Gigabit LAN PHY Intel 82583V PCI-E Gigabit LAN
Others
MB970VF: Digital I/O(4-in/4-out), RAID, TPM (1.2) MB970F: Digital I/O(4-in/4-out), EuP/ErP support
SSD
Cfast
System Memory
4x DDR3 DIMM, Max. 32GB (Non-ECC)
System Speed
up to 3.4GHz
USB
2 ports on board, 2 ports via box header (USB 3.0) MB970VF: 4 ports on board, 6 ports via pin header (USB 2.0) MB970F: 4 ports on board, 4 ports via pinheader (USB 2.0)
VGA Controller
3rd Generation Intel Core i7/i5/i3/ Pentium processor integrated
VGA Memory
Max. Shared Memory - 1024 MB
Watchdog Timer
256 levels
Form Factor
ATX
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C (32CF~140CF)
Ordering Info
MB970VF LGA1155 Q77 ATX Motherboard w/ DVI-I, DVI-D, DisplayPort, dual Gigabit LAN, RAID, iAMT (8.0), TPM(1.2), vPro, iSMART MB970F LGA1155 B75 ATX Motherboard w/ DVI-I, DVI-D, DisplayPort, dual Gigabit LAN, EuP/ErP compliant, iSMART
Processor
Intel
Storage Temperature
-20C~80C (-4CF~176CF)
The iBASE MB970 Industrial Motherboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the MB970 is commonly used:
Industrial and Manufacturing, Medical and Healthcare, Pharmaceutical
These examples highlight the versatility of the iBASE MB970 Industrial Motherboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial Motherboard, Motherboard, Rugged Motherboard fits your specific needs, please contact us.
The iBASE MB970 Industrial Motherboard comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE MB970 Industrial Motherboard, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE MB970 Industrial Motherboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE MB970 Industrial Motherboard?
If you have any questions about the iBASE MB970 please get in touch today, our team of technical experts are ready to assist you.
