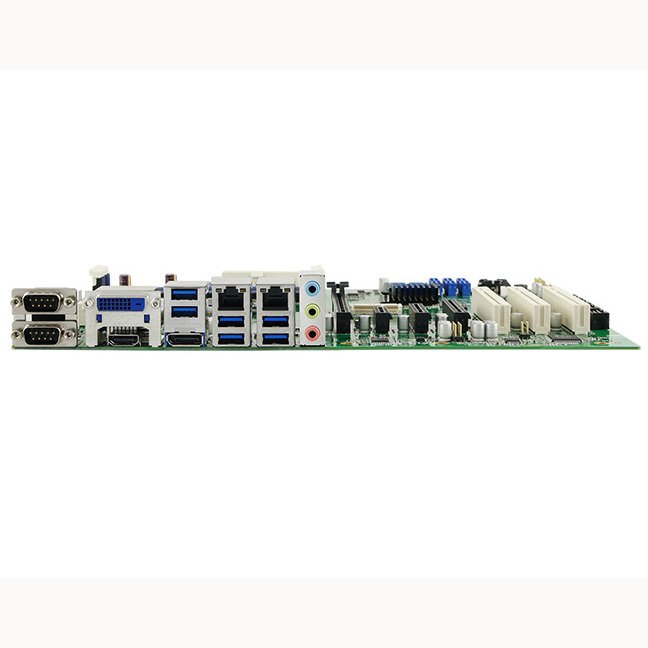

iBASE MB990 Industrial Motherboard
The MB990 ATX motherboard supports Intel’s newest 6th Gen Intel Core processors. It features LGA1151 socket for 6th Gen Intel Core, Pentium or Celeron processors based on the code-named œSkylake-S micro-architecture. The motherboard supports four DDR4 DIMM slots for up to 64GB of memory, four USB 2.0, ten USB 3.0, six COM and six SATA III ports, as well as graphics interface for DVI-D, HDMI and DisplayPort displays.
MB990 Features
- Original OEM Module
- Rohs Compliant, CE
- 12X PCI, 2X ISA
- Led Power Indicators For +5V, -5V, +12V, -12V, 3.3V, +5Vsb
- Size: 264.2mm X 311.2mm (10.4"X 12.3")
Request a Quote
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
RoHS Compliant, CE
Dimensions
305mm x 244mm (12" x 9.6")
Audio
Intel Q170 PCH built-in HD audio + Realtek ALC892 codec
BIOS
AMI
Display Interface
Supports DVI-D, HDMI and DisplayPort
Expansion Slots
1x PCI-E(x16), 1x PCI-E(x8), 1x PCI-E(x4), 1x PCI-E(x1), 3x PCI, 1x Mini PCI-E
Form Factor FILTER
ATX
H/W Monitor
Yes
I/O Chipset
Fintek F81866AD-I 5x RS232, 1x RS232/422/485 (Jumper-less selection), 6x SATAIII
LAN Connector
RJ-45 on board
LAN Controller
MB990VF series: Intel I219LM Gigabit LAN PHY MB990EF series: Intel I219V Gigabit LAN PHY Intel I211AT PCI-E Gigabit LAN (as 2nd LAN)
Others
Digital I/O (4-in/4-out), EuP/ErP support, RAID, TPM(1.2), iAMT(11.0), iSMART3.0
SSD
N/A
System Memory
4x DDR4 DIMM, Max. 64GB (Supports ECC by CPU SKUs)
System Speed
up to 3.4GHz
USB
6 ports on board, 4 ports via pin-header (USB 3.0) 4 ports via pin-header (USB 2.0)
VGA Controller
6th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron QC/ DC processors Integrated
VGA Memory
Max. Shared memory 1024MB
Watchdog Timer
256 levels
Form Factor
ATX
Humidity
10-90% Humidity Resistant (non-condensing)
Operating Temperature
0C~60C (32CF~140CF)
Ordering Info
MB990VF LGA1151 Q170 ATX Motherboard w/ DVI-D, HDMI, DisplayPort, dual Gigabit LAN, RAID, EuP/ErP compliant, iAMT (11.0), TPM (1.2), vPro, iSMART 3.0
Processor
Intel
Storage Temperature
-20C~80C (-4CF~176CF)
