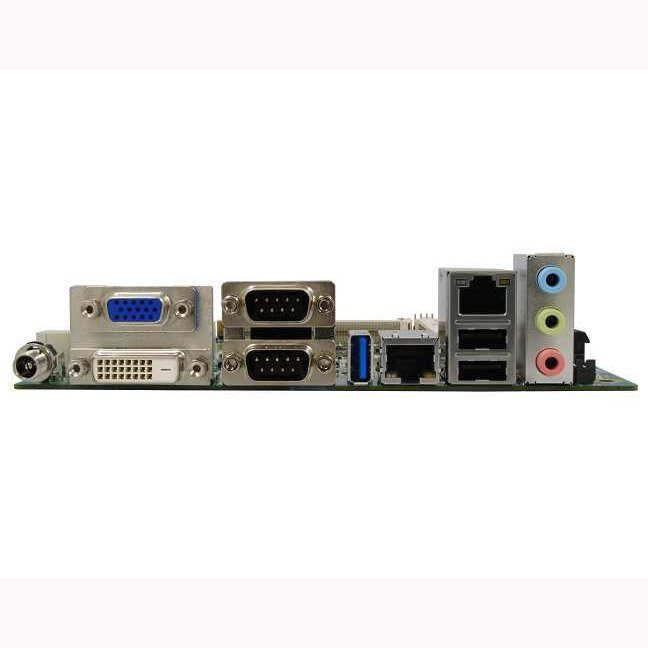

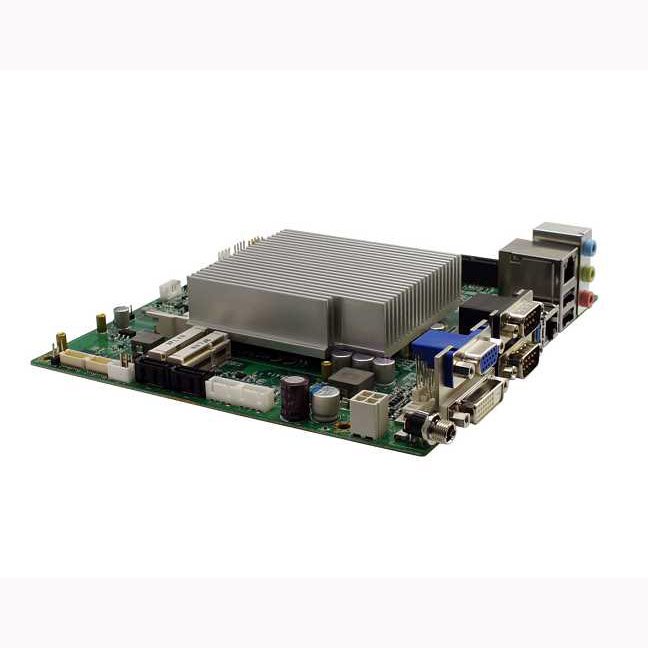

iBASE MI805 Industrial Motherboard
The MI805 Mini ITX Motherboard comes on board with the Intel Celeron J1900 quad-core processor with a clock speed of 2.0GHz. The board has two memory sockets to support DDR3L SO-DIMM modules with a total capacity of 8GB.
MI805 Features
- Original OEM Module
- Rohs Compliant, CE
- 12X PCI, 2X ISA
- Led Power Indicators For +5V, -5V, +12V, -12V, 3.3V, +5Vsb
- Size: 264.2mm X 311.2mm (10.4"X 12.3")
Request a Quote
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
RoHS Compliant, CE
Dimensions
170mm x 170mm (6.7" x 6.7")
Audio
Intel Celeron J1900 built-in audio w/ Realtek ALC269 codec
BIOS
AMI
Display Interface
Supports DVI-D, CRT 24-bit dual channel LVDS
Expansion Slots
1x PCI-E(1x), 1x Mini PCI-E
Form Factor FILTER
Mini-ITX
H/W Monitor
Yes
I/O Chipset
Nuvoton NCT6106D 1x RS232/422/485 , 5x RS232, 2x SATA II
LAN Connector
RJ-45 on board
LAN Controller
Intel I211AT PCI-E Gigabit LAN
Others
12V~24V DC-In, iSMART, Digital I/O (4-in/4-out)
SSD
mSATA
System Memory
2x DDR3L-1333 SO-DIMM, Max. 8GB(Non-ECC)
System Speed
2.0GHz
USB
1 port USB 3.0 on board 2 ports USB 2.0 on board 2 ports USB 2.0 via pin-header
VGA Controller
Intel Celeron J1900 integrated Gen7 graphics
VGA Memory
Max. shared memory 224MB
Watchdog Timer
256 levels
Form Factor
Mini-ITX
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C (32CF~140CF)
Ordering Info
MI805F-D Intel Celeron J1900 2GHz SoC Mini-ITX motherboard w/DVI-D, VGA & LVDS, 2x PCI-E Gigabit LAN, iSMART, with heatsink
Processor
Intel
Storage Temperature
-20C~80C (-4CF~176CF)
The iBASE MI805 Industrial Motherboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the MI805 is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the iBASE MI805 Industrial Motherboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial Motherboard, Motherboard, Rugged Motherboard fits your specific needs, please contact us.
The iBASE MI805 Industrial Motherboard comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE MI805 Industrial Motherboard, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE MI805 Industrial Motherboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE MI805 Industrial Motherboard?
If you have any questions about the iBASE MI805 please get in touch today, our team of technical experts are ready to assist you.
