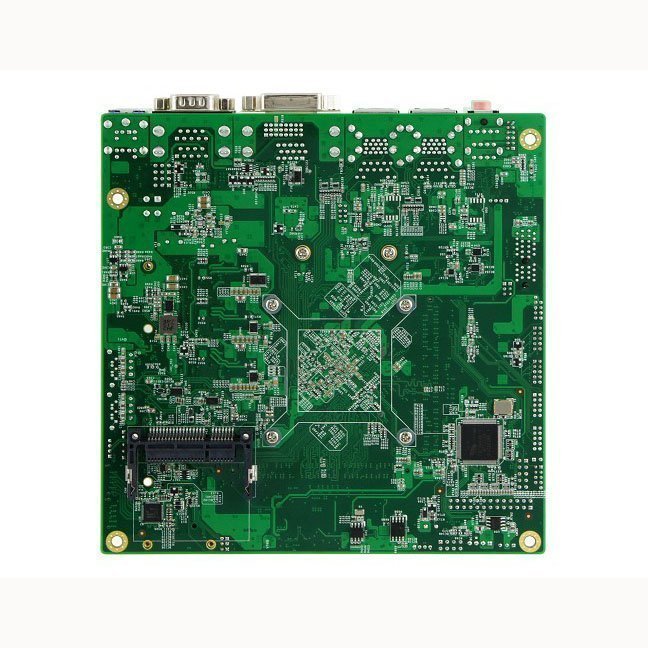

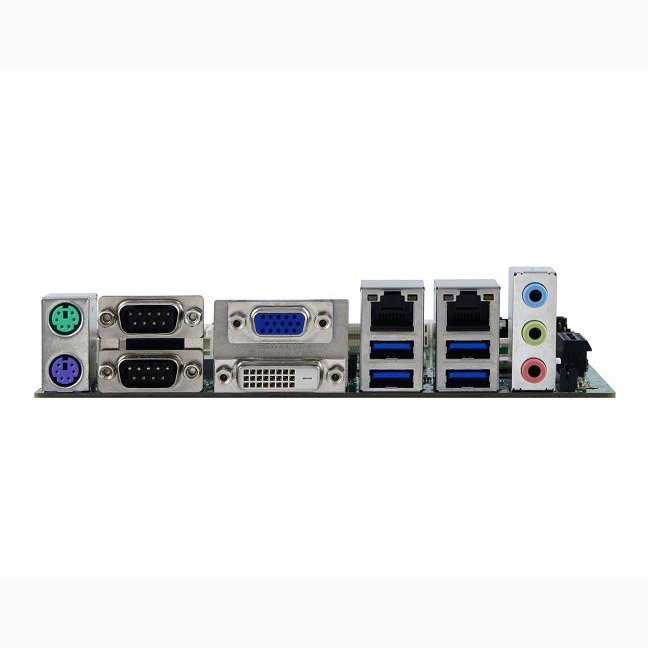

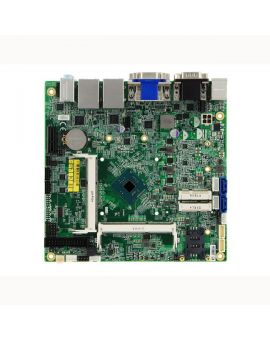

iBASE MI808 Industrial Motherboard
The MI808 is a Mini-ITX Motherboard to support DC power input. The board can be powered by a 2.4GHz Intel Pentium N3710 or 2.08GHz Celeron N3010 processor and is paired with two DDR3L SO-DIMM sockets that accept up to 8GB of memory. With a DC-power input design, it is scalable to adapt to various applications in transportation, mobile, POS and industrial automation markets.
MI808 Features
- Original OEM Module
- Rohs Compliant, CE
- 12X PCI, 2X ISA
- Led Power Indicators For +5V, -5V, +12V, -12V, 3.3V, +5Vsb
- Size: 264.2mm X 311.2mm (10.4"X 12.3")
Request a Quote
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
RoHS Compliant, CE
Dimensions
170mm x 170mm (6.7" x 6.7")
Audio
Intel Pentium SoC built-in HD audio controller + Realtek ALC269 with 2.1 channels + amplifier
BIOS
AMI BIOS
Display Interface
Supports DVI-D , CRT 24-bit dual channel LVDS
Expansion Slots
1x PCIe(x1), 1x Mini PCI-E
Form Factor FILTER
Mini-ITX
H/W Monitor
Yes
I/O Chipset
Fintek F81846AD-I 1x RS-232/422/485 (jumperless selection) 3x RS232, PS/2 keyboard/mouse 1x printer port 2x SATA III
LAN Connector
RJ-45 on board
LAN Controller
Intel I211AT PCI-E Gigabit LAN
Others
Digital I/O (4-in/4-out); 12V DC-in or 18V~24V; iSMART 3.2; TPM(2.0); SIM card slot, CFast (optional)
SSD
1x mSATA, 1x CFast (Optional)
System Memory
Two DDR3L-1600 SO-DIMM socket, Max. 8GB
System Speed
up to 2.24GHz
USB
4 ports on board (USB 3.0) 2 ports via pin-header (USB 2.0)
VGA Controller
Intel Pentium SoC integrated Intel Gen 8 graphics
VGA Memory
Shared memory
Watchdog Timer
256 levels
Form Factor
Mini-ITX
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C ( 32CF~140CF)
Ordering Info
MI808F-371 Mini-ITX motherboard with Intel Pentium N3710 (2.56GHz) on board, heatsink, DVI-D, VGA & LVDS, 2x PCI-E Gigabit LAN, iSMART 3.2, TPM(2.0), DC-in 12V only MI808FW-371 Mini-ITX motherboard with Intel Pentium N3710 (2.56GHz) on board, heatsink, DVI-D, VGA & LVDS, 2x PCI-E Gigabit LAN, iSMART 3.2, TPM(2.0), DC-in 18V~24V MI808F-301 (w/ MOQ) Mini-ITX motherboard with Intel Celeron N3010 (2.24GHz) on board, heatsink, DVI-D, VGA & LVDS, 2x PCI-E Gigabit LAN, iSMART 3.2, TPM(2.0), DC-in 12V only MI808FW-301 (w/ MOQ) Mini-ITX motherboard with Intel Celeron N3010 (2.24GHz) on board, heatsink, DVI-D, VGA & LVDS, 2x PCI-E Gigabit LAN, iSMART 3.2, TPM(2.0), DC-in 18V~24V
Processor
Intel
Storage Temperature
-20C~80C (-4CF~176CF)
The iBASE MI808 Industrial Motherboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the MI808 is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the iBASE MI808 Industrial Motherboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial Motherboard, Motherboard, Rugged Motherboard fits your specific needs, please contact us.
The iBASE MI808 Industrial Motherboard comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE MI808 Industrial Motherboard, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE MI808 Industrial Motherboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
