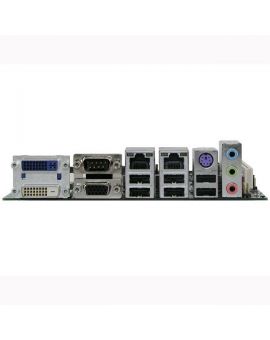

iBASE MI953 Industrial Motherboard
The Intel QM57-based MI953 Mini-ITX motherboard is designed for multimedia, gaming, POS, kiosk and demanding applications requiring reliable performance. MI953 supports Intel Core i7 and Core i5 processors and a maximum of 8GB of non ECC unbuffered DDR3 memory “ with DDR3 pegged at 800 and 1066 MHz speeds.
MI953 Features
- Original OEM Module
- Rohs Compliant, CE
- 12X PCI, 2X ISA
- Led Power Indicators For +5V, -5V, +12V, -12V, 3.3V, +5Vsb
- Size: 264.2mm X 311.2mm (10.4"X 12.3")
Request a Quote
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
RoHS Compliant, CE
Dimensions
170mm x 170mm (6.7" x 6.7")
Audio
Built-in HD audio w/ Realtek ALC892 codec for 7.1CH
BIOS
AMI
Display Interface
Supports CRT, 2x DVI-D & 24-bit dual channel LVDS
Expansion Slots
1x PCI, 1x PCI-E (x1), 1x Mini PCI-E (x1)
Form Factor FILTER
Mini-ITX
H/W Monitor
Yes
I/O Chipset
Fintek F81865-I 1x Keyboard, 1x mouse, 3x RS232, 1x RS-232/422/485, 4x SATA II (3.0Gb/sec.)
LAN Connector
Dual RJ-45 on board
LAN Controller
Intel 82577LM Gigabit LAN Intel 82574L PCI-E Gigabit LAN
Others
Digital I/O (4-in/4-out)
SSD
N/A
System Memory
2x DDR3 SO-DIMM, Max. 8GB
System Speed
up to 2.24GHz
USB
6 ports on board Pin header for 4 ports (USB 2.0)
VGA Controller
Intel Core i7 / i5 / i3 / Celeron integrated
VGA Memory
Max. shared memory - 352MB
Watchdog Timer
256 levels
Form Factor
Mini-ITX
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C (32CF~140CF)
Ordering Info
MI953F rPGA988 QM57 Mini-ITX motherboard w/ VGA, dual DVI & dual Gigabit LAN, RAID, EuP/ErP compliant MI953AF rPGA988 QM57 Mini-ITX motherboard w/ VGA, dual DVI & dual Gigabit LAN, AMT (6.0), RAID MI953 rPGA988 HM55 Mini-ITX motherboard w/ VGA, dual DVI & dual Gigabit LAN, EuP/ErP compliant
Processor
Intel
Storage Temperature
;'-20C~80C (-4CF~176CF)
The iBASE MI953 Industrial Motherboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the MI953 is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the iBASE MI953 Industrial Motherboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial Motherboard, Motherboard, Rugged Motherboard fits your specific needs, please contact us.
The iBASE MI953 Industrial Motherboard comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE MI953 Industrial Motherboard, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE MI953 Industrial Motherboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
