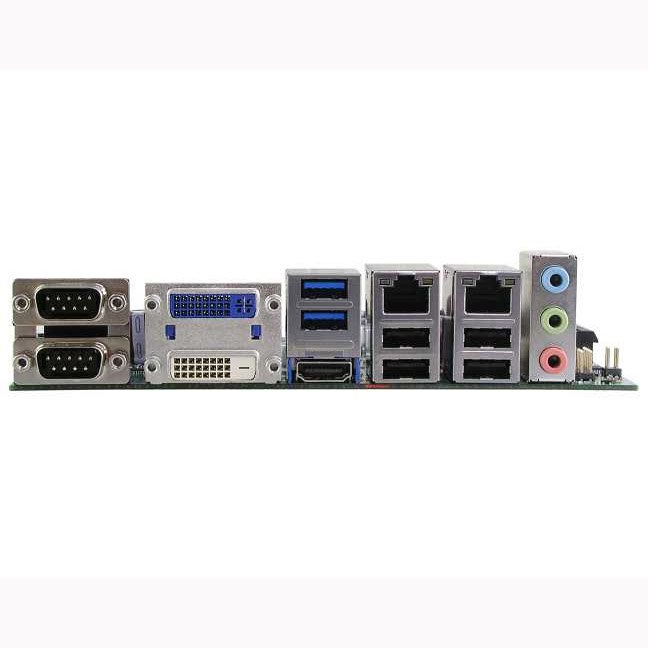

iBASE MI956 Industrial Motherboard
The MI956F Mini-ITX motherboard is based on the latest Intel QM67 Express chipset. The platform supports the 2nd generation Intel Core processor family with rPGA988B packing and features an integrated dual-channel DDR3 memory controller as well as a graphics core. It meets the requirement in the gaming, POS, digital signage and server market segment.
MI956 Features
- Original OEM Module
- Rohs Compliant, CE
Request a Quote
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
RoHS Compliant, CE
Dimensions
170mm x 170mm (6.7" x 6.7")
Audio
Intel QM67 built-in HD audio w/ Realtek ALC892 for 7.1 CH
BIOS
AMI BIOS
Display Interface
Supports 24-bit dual channel LVDS, DVI-I, DVI-D, HDMI (supports HDCP)
Expansion Slots
1x PCI-E(x16), 1x Mini PCI-E(x1)
Form Factor FILTER
Mini-ITX
H/W Monitor
Yes
I/O Chipset
Fintek F81865-I 3x RS232, 1x RS-232/422/485, 4x SATA II, 2x SATA III
LAN Connector
2x RJ-45 on board
LAN Controller
MI956AF: Intel 82579LM MI956F: Intel 82579VGigabit LAN PHY Intel 82583V PCI-E Gigabit LAN
Others
Digital I/O (4-in/4-out), ATX power connector, EuP/ErP compliant
SSD
N/A
System Memory
2x DDR3 SO-DIMM, Max. 16GB (Non-ECC)
System Speed
up to 2.7GHz
USB
4 ports on board, 4 ports via pin-header (USB 2.0) 2 ports on board (USB 3.0)
VGA Controller
Intel Core i7/i5/i3/ Celeron processors integrated graphics Gen 5.75
VGA Memory
Max. Shared Memory - 1024 MB
Watchdog Timer
256 levels
Form Factor
Mini-ITX
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C (32CF~140CF)
Ordering Info
MI956F rPGA988B QM67 Mini-ITX motherboard w/ DVI-I, DVI-D, HDMI, dual Gigabit LAN, EuP/ErP compliant MI956AF rPGA988B QM67 Mini-ITX motherboard w/ DVI-I, DVI-D, HDMI, dual Gigabit LAN, iAMT (7.0), RAID
Processor
Intel
Storage Temperature
-20C~80C (-4CF~176CF)
The iBASE MI956 Industrial Motherboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the MI956 is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the iBASE MI956 Industrial Motherboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial Motherboard, Motherboard, Rugged Motherboard fits your specific needs, please contact us.
The iBASE MI956 Industrial Motherboard comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE MI956 Industrial Motherboard, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE MI956 Industrial Motherboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
