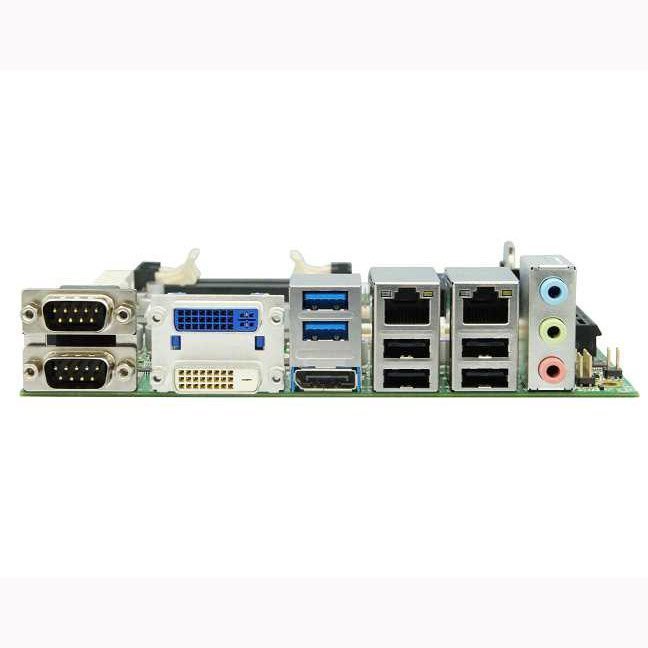

iBASE MI970 Industrial Motherboard
The MI970 Mini-ITX motherboard is based on the Intel QM77 Express Chipset, providing support for both the 3rd and 2nd generation Intel Core processor families. The board is suitable for a wide range of applications such as gaming, medical, industrial automation, kiosk, digital signage and ATM machines.
MI970 Features
- Original OEM Module
- Rohs Compliant, CE
Request a Quote
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
RoHS Compliant, CE
Dimensions
170mm x 170mm (6.7" x 6.7")
Audio
Intel QM77/HM76 PCH built-in HD audio controller+ ALC892 w/ 7.1 channels
BIOS
AMI
Display Interface
Supports 24-bit dual channel LVDS, DVI-I, DVI-D, DisplayPort
Expansion Slots
1x PCI-E(x16) 2x Mini PCI-E(x1) - w/ USB signal (1x half-size, 1x full-size)
Form Factor FILTER
Mini-ITX
H/W Monitor
Yes
I/O Chipset
Fintek F81846AD-I 3x RS232, 1x RS-232/422/485, 4x SATA II, 2x SATA III
LAN Connector
2x RJ-45 on board
LAN Controller
Intel 82579LM(MI970VF) / 82579V(MI970F) Gigabit LAN PHY, Intel 82583V PCI-E Gigabit LAN
Others
Digital I/O (4-in/4-out), ATX power connector, iSMART support
SSD
1x mSATA via Mini PCI-E (Full-Size)
System Memory
2x DDR3 SO-DIMM, Max. 16GB (Non-ECC)
System Speed
2.53GHz
USB
4 ports on board, 2 ports via pin-header (USB 2.0) 2 ports on board, 2 ports via pin-header (USB3.0)
VGA Controller
Intel Core i7/i5/i3 / Celeron integrated graphics, supports CRT, DVI, DisplayPort, LVDS
VGA Memory
Max. Shared memory 1024MB
Watchdog Timer
256 levels
Expansion
PCI-E
Form Factor
Mini-ITX
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C (32F~140F)
Ordering Info
MI970VF Intel QM77 Mini-ITX motherboard w/ DVI-I, DVI-D, DisplayPort, dual Gigabit LAN, iAMT(8.0) ,TPM 1.2, vPro, iSMART MI970F Intel HM76 Mini-ITX motherboard w/ DVI-I, DVI-D, DisplayPort, dual Gigabit LAN, EuP/ErP compliant, iSMART
Processor
Intel
Storage Temperature
-20C~80C (-4F~176F)
The iBASE MI970 Industrial Motherboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the MI970 is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the iBASE MI970 Industrial Motherboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial Motherboard, Motherboard, Rugged Motherboard fits your specific needs, please contact us.
The iBASE MI970 Industrial Motherboard comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE MI970 Industrial Motherboard, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE MI970 Industrial Motherboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
