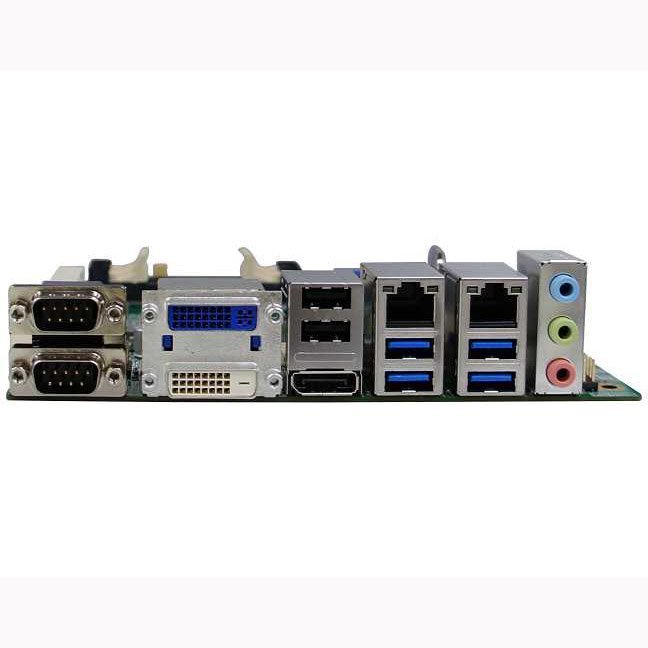

iBASE MI980 Industrial Motherboard
The MI980 Mini-ITX supports the 4th Generation Intel Core i7/i5 processors. This motherboard is based on the mobile Intel QM87 and HM86 Express chipsets that offer an increase in graphics and CPU performance over previous generations. The new board design was developed primarily for the industrial and embedded markets that require high processing capability, but at the same time are constrained by power limits.
MI980 Features
- Original OEM Module
- Rohs Compliant, CE
- 3X PCI-E Gigabit Lan
- DVI-I, Displayport & 24-Bit Dual Channel Lvds
- Watchdog Timer, Digital I/O, ISMART 3.1, Raid
- 5X SATA Iii, 4X USB 3.0, 8X USB 2.0, 6 X Com, 1X Msata
- 1X PCI-E(X16), 2 X Mini PCI-E
- 1X Sim Card Slot
Request a Quote
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
RoHS Compliant, CE
Dimensions
170mm x 170mm (6.7" x 6.7")
Audio
Intel QM87 / HM86 PCH built-in HD audio controller + ALC892 w/ 7.1 channels
BIOS
AMI
Display Interface
Supports 24-bit dual channel LVDS/eDP, DVI-I, DVI-D, DisplayPort
Expansion Slots
1x PCI-E(x16), 2x Mini PCI-E(x1)
Form Factor FILTER
Mini-ITX
H/W Monitor
Yes
I/O Chipset
Fintek F81866AD-I 1x RS-232/422/485 (jumperless selection) 5x RS232 MI980VF Series: 4x SATA III, 2x SATA II MI980F: 2x SATA III, 2x SATA II
LAN Connector
2x RJ-45 on board
LAN Controller
MI980VF Series: Intel I217LM Gigabit LAN PHY MI980F: Intel I217V Gigabit LAN PHY Intel I211AT PCI-E Gigabit LAN (as 2nd LAN)
Others
Digital I/O (4-in/4-out), ATX power connector, iSMART support
SSD
1x mSATA via Mini PCI-E (Thru SATA III)
System Memory
2x DDR3/DDR3L SO-DIMM, Max. 16GB (Non-ECC)
System Speed
2.7GHz
USB
2 ports on board, 4 ports via pin-header (USB 2.0) 4 ports on board (USB 3.0)
VGA Controller
4th Generation Intel Core i7/i5/i3 / Celeron integrated graphics, supports CRT, DVI, DisplayPort, LVDS / eDP
VGA Memory
Max. Shared memory 1024MB
Watchdog Timer
256 levels
Expansion
PCI-E
Form Factor
Mini-ITX
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C (32CF~140CF)
Ordering Info
MI980VF-4700EQ Intel QM87/Core i7-4700EQ (2.4GHz) Mini-ITX motherboard w/ DVI-I, DVI-D, DisplayPort, LVDS, dual Gigabit LAN, iAMT 9.0, RAID, TPM 1.2, vPro, iSMART, CPU cooler on board MI980VF-4400E Intel QM87/Core i5-4400E (2.7GHz) Mini-ITX motherboardd w/ DVI-I, DVI-D, DisplayPort, LVDS, dual Gigabit LAN, iAMT 9.0, RAID, TPM 1.2, vPro, iSMART, CPU cooler on board MI980F-4100E Intel HM86 /Core i3-4100E (2.4GHz) Mini-ITX motherboard w/ DVI-I, DVI-D, DisplayPort, LVDS, dual Gigabit LAN, EuP/ErP compliant, iSMART, CPU cooler on board
Processor
Intel
Storage Temperature
-20C~80C (-4CF~176CF)
