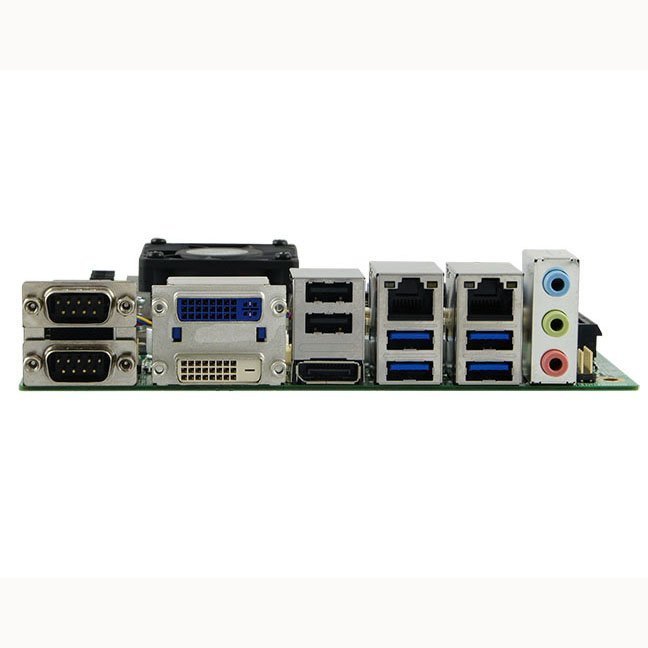

iBASE MI985 Industrial Motherboard
The MI985 Mini-ITX motherboard supports the 5th Generation Intel Core processors (H-processor line) and Mobile Intel QM87 Express Chipset that deliver industry-leading processing and graphics performance. Based on the Intel microarchitecture, the MI985 provides the processing power and advanced features such as Intel Hyper-Threading Technology and Intel Active Management Technology 9.0, power-management suitable for high-end applications in kiosk, medical, factory, industrial automation and control markets.
MI985 Features
- Original OEM Module
- Rohs Compliant, CE
- Supports DVI-D, VGA and Displayport
- 2X Intel PCI-E Gigabit Lan
- 2X USB 3.0, 6X USB 2.0, 6X Com, 2X SATA Iii, 2X SATA Ii
- 2X Mini PCI-E Slots,1X PCI-E(16X)
- Watchdog Timer, Digital I/O, ISMART 3.0
- 1X Sim Card Slot
Request a Quote
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
RoHS Compliant, CE
Dimensions
170mm x 170mm (6.7" x 6.7")
Audio
Intel QM87 PCH built-in HD audio controller+ ALC892 with 7.1 channels
BIOS
AMI
Display Interface
Supports 24-bit dual channel LVDS/eDP DVI-I, DVI-D, DisplayPort
Expansion Slots
1x PCI-E(x16), 2x Mini PCI-E(x1)
Form Factor FILTER
Mini-ITX
H/W Monitor
Yes
I/O Chipset
Fintek F81866AD-I 5x RS232, 1x RS-232/422/485 (jumperless selection) 4x SATA III, 2x SATA II
LAN Connector
2x RJ-45 on board
LAN Controller
Intel I218LM PHY Intel I211AT PCI-E Gigabit LAN
Others
Digital I/O (4-in/4-out), ATX power connector, iSMART 3.1
SSD
N/A
System Memory
2x DDR3L SO-DIMM, Max. 16GB (Non-ECC)
System Speed
2.7GHz
USB
2 ports on board 4 ports via pin-header (USB 2.0) 4 ports on board (USB 3.0)
VGA Controller
Intel 5th generation Core i7 integrated graphics supports CRT, DVI, DisplayPort, LVDS / eDP
VGA Memory
Max. Shared memory 1024MB
Watchdog Timer
256 levels
Expansion
PCI-E
Form Factor
Mini-ITX
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C ( 32CF~140CF)
Ordering Info
MI985AF-Q26 Intel QM87/Core i7-5700EQ (2.6GHz) Mini-ITX motherboard w/ DVI-I, DVI-D, DisplayPort, LVDS, dual Gigabit LAN, iAMT(10.0), TPM 2.0, iSMART 3.1 MI985AF-Q27e Intel QM87/Core i7-5850EQ (2.7GHz) Mini-ITX motherboard w/ DVI-I, DVI-D, DisplayPort, LVDS, dual Gigabit LAN, iAMT(10.0), TPM 2.0, iSMART 3.1
Processor
Intel
Storage Temperature
-20C~80C (-4CF~176CF)
The iBASE MI985 Industrial Motherboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the MI985 is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the iBASE MI985 Industrial Motherboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial Motherboard, Motherboard, Rugged Motherboard fits your specific needs, please contact us.
The iBASE MI985 Industrial Motherboard comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE MI985 Industrial Motherboard, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE MI985 Industrial Motherboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE MI985 Industrial Motherboard?
If you have any questions about the iBASE MI985 please get in touch today, our team of technical experts are ready to assist you.
