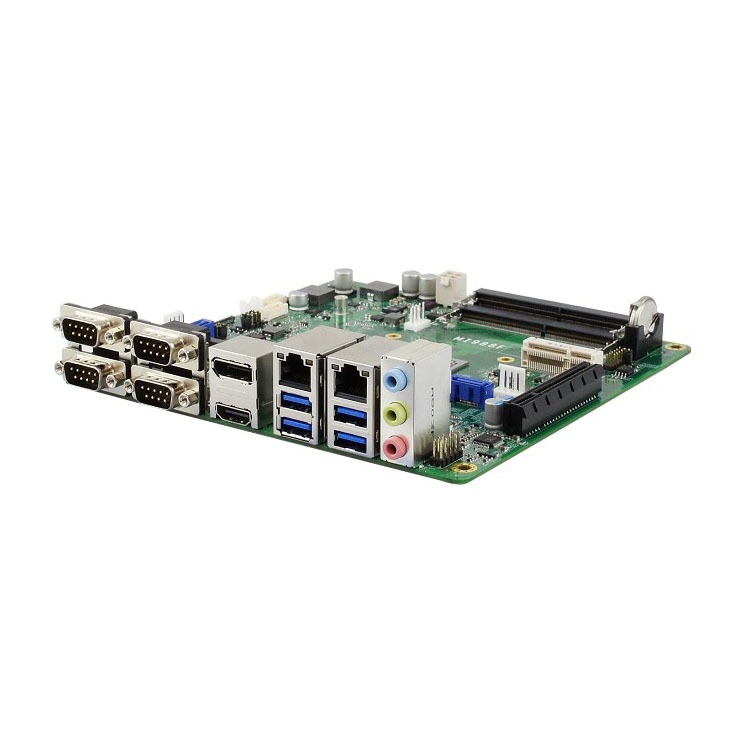

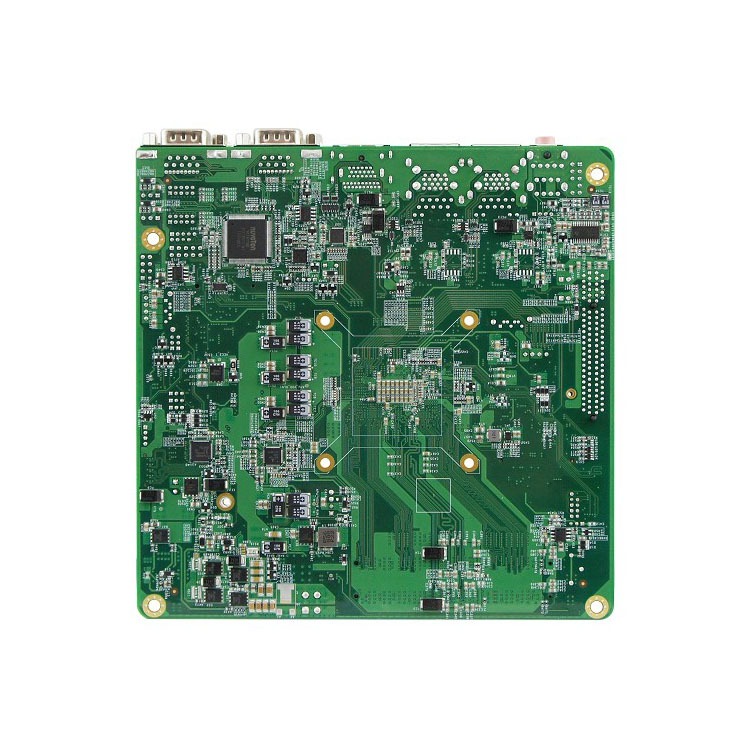

iBASE MI988 AMD Ryzen Embedded V1000 Mini-ITX Motherboard
The MI988 Mini-ITX motherboard is based on the latest AMD Ryzen „¢ Embedded V1000 processor family. With the 14nm architecture, the AMD Ryzen „¢ Embedded V1000 processor combines the processing power of the advanced AMD “Zen” CPU and “Vega” graphics architecture in a single chip. Thanks to the high processing and graphics capabilities of the AMD Ryzen „¢ mobile processors, the MI988 delivers brilliant graphics and a stunning level of video performance. The MI988 enables power savings and scalability for high-performance devices used in mission-critical markets in the field of machine vision, medical imaging and gaming.
The MI988 is equipped with two DDR4-2666 SO-DIMM slots that support ECC and up to 32GB capacity. It has an M.2 SSD storage (NVMe) and two Gigabit Ethernet ports. Display connectors provided are an HDMI(2.0a), a DisplayPort(1.2) and an eDP or a 24-bit dual channel LVDS. It is available in three models with quad- and dual-core APUs including the AMD Ryzen Embedded V1807B, V1756B, and V1202B. Measuring 170mm by 170mm, it features a wide-range power input of 12V to 24V.
MI988 Features
- AMD Ryzenâ„¢ Embedded V1000 on board
- 2x DDR4 SO-DIMM, Max. 32GB
- 2x PCI-E Gigabit LAN

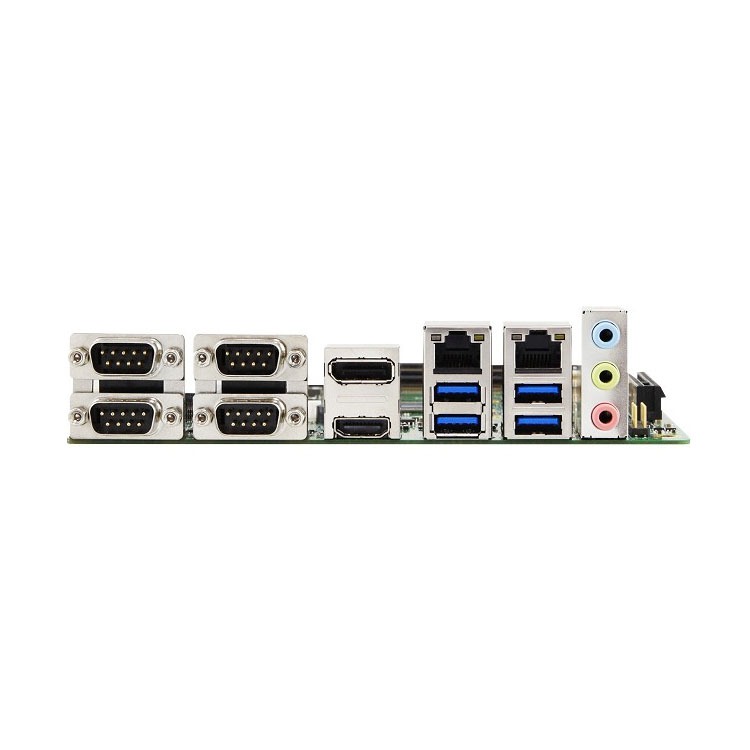

- 1x HDMI(2.0a), 1x DisplayPort (1.2), 1x eDP or 1x 24-bit dual channel LVDS
- 2x USB3.1(10Gbps), 2x USB3.1(5Gpbs), 2x SATAIII, 6x COM
- 1x PCI-E(x8), 1x Mini PCI-E socket, 1x M.2 (M-key)
Request a Quote
Product Type
Format
Manufacturer
Country Of Manufacture
Certifications
CE, RoHs
Custom Options Products
Processor,Memory,Storage,Operating System
Dimensions
170mm x 170mm (6.7†x 6.7â€)
Audio
Built-in HD audio w/ALC662 codec for 5.1 channel
BIOS
AMI
Chipset
N/A
CPU Package
AMD Ryzenâ„¢ Embedded V1000 on board
Display Interface
1x HDMI (2.0a), 1x DisplayPort (1.2)
1x eDP or 1x 24-bit dual channel LVDS
Expansion Slots
1x PCI-E(x8), 1x Mini PCI-E, 1x M.2 (M-key, type:2230)
H/W Monitor
Yes
I/O Chipset
Nuvoton NCT6116D
2x RS232/422/485 (Jumperless selection)
4x RS232
LAN Connector
2x RJ-45 connectors
LAN Controller
2x Intel® I211AT PCI-E Gigabit LAN
Max. Power Requirement
AMD Ryzenâ„¢ Embedded V1807B 3.35GHz w/ 2x 8GB DDR4-2133 +24V: 2.55A
Others
Digital I/O(4-in/4-out), iSMART, +12V~+24V DC-in
Storage
DDR4 SO-DIMM, supports ECC
_x005F_x000D_2x DDR4-2666, Max. 32GB
System Memory
DDR4 SO-DIMM, supports ECC
2x DDR4-2666, Max. 32GB
USB
2x USB 3.1 Gen2 (10Gbps) on board
2x USB 3.1 Gen1 (5Gbps) on board
VGA Memory
Shared Memory
Watchdog Timer
256 levels
Expansion
PCI-E,Mini PCI-E,M.2
Form Factor
Mini-ITX
Humidity
90% (non-condensing @60°C)
Operating Temperature
0°C~60°C (32°F~140°F)
Ordering Info
MI988F-1807 AMD Ryzenâ„¢ V1807B QC APU (3.35GHz/3.8GHz) on board Mini-ITX motherboard, with HDMI (2.0), DP, eDP or LVDS, dual Gigabit LAN, iSAMRT, +12V~+24V DC-in
_x005F_x000D_
MI988F-1756 AMD Ryzenâ„¢ V1756B QC APU (3.25GHz/3.6GHz) on board Mini-ITX motherboard, with HDMI (2.0), DP, eDP or LVDS, dual Gigabit LAN, iSAMRT,+12V~+24V DC-in
Storage Temperature
-20°C~80°C (-4°F~176°F)
The iBASE MI988 AMD Ryzen Embedded V1000 Mini-ITX Motherboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the MI988 is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the iBASE MI988 AMD Ryzen Embedded V1000 Mini-ITX Motherboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial Motherboard, Motherboard, Rugged Motherboard fits your specific needs, please contact us.
The iBASE MI988 AMD Ryzen Embedded V1000 Mini-ITX Motherboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE MI988 AMD Ryzen Embedded V1000 Mini-ITX Motherboard, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE MI988 AMD Ryzen Embedded V1000 Mini-ITX Motherboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE MI988 AMD Ryzen Embedded V1000 Mini-ITX Motherboard or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iBASE MI988 or need a custom Motherboard solution designed specifically for you, our team of technical experts are ready to assist you.
