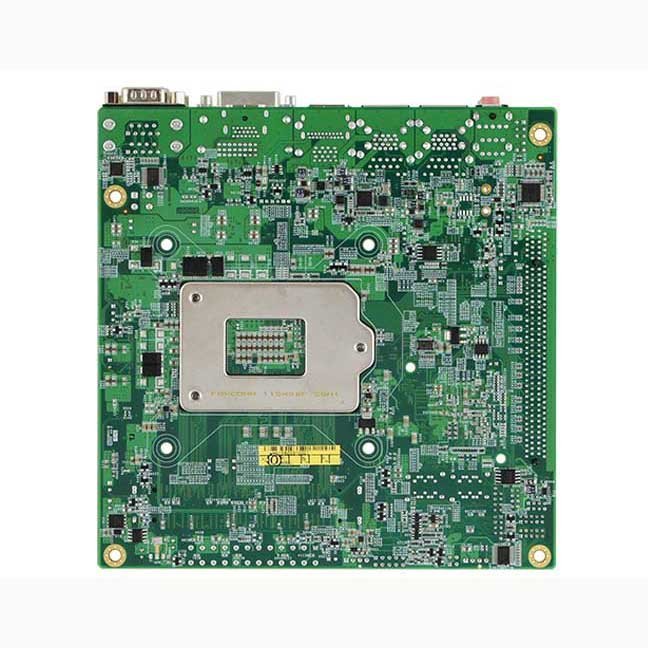

iBASE MI991 Industrial Motherboard
The MI991 Mini-ITX motherboard is with a Socket H4 (LGA1151) socket and the Intel C236 chipset. System integrators can benefit from the MI991 equipped with space-saving compact configuration and rich I/O design for maximum flexibility.
MI991 Features
- Mini-Itx Motherboard
- Socket H4 (Lga1151)
- Supports DVI-D, Hdmi and Displayport
Request a Quote
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
RoHS Compliant, CE
Dimensions
170mm x 170mm (6.7" x 6.7")
Audio
Intel C236/ Q170/ H110 PCH built-in HD audio + Realtek ALC662 codec
BIOS
AMI
Display Interface
Supports DVI-D, HDMI and DisplayPort
Expansion Slots
1x PCI-E(x16), 2x Mini PCI-E
Form Factor FILTER
Mini-ITX
H/W Monitor
Yes
I/O Chipset
Fintek F81846D-I 3x RS232, 1x RS232/422/485(Jumper-less selection), 4x SATAIII (MI991AF) or 3x SATAIII (MI991EF)
LAN Connector
RJ-45 on board
LAN Controller
Intel I219LM Gigabit LAN PHY Intel I211AT PCI-E Gigabit LAN
Others
Digital I/O(4-in/4-out), EuP/ErP supporting, RAID, TPM(1.2), iAMT(11.0), iSMART
SSD
1x mSATA
System Memory
2x DDR4 DIMM, Max. 32GB (Support ECC by CPU SKUs)
System Speed
up to 3.7GHz

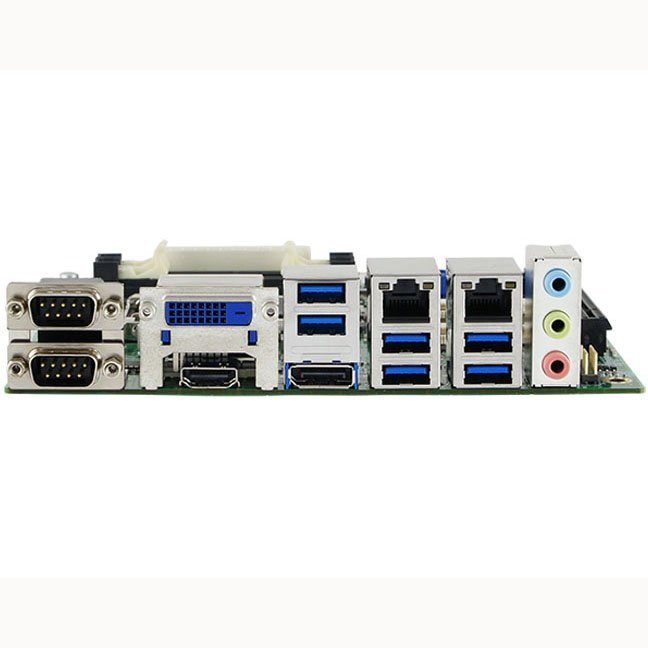

USB
USB 3.0: 6 ports onboard (MI991AF), 4 ports onboard (MI991EF) USB 2.0: 2 ports onboard (MI991EF), 2 ports via pin-header
VGA Controller
6th Generation Intel Xeon / Core i7 / i5 / i3 / Pentium processor Integrated
VGA Memory
Max. Shared memory 1024MB
Watchdog Timer
256 levels
Form Factor
Mini-ITX
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C (32CF~140CF)
Ordering Info
MI991AF-C236 LGA1151 C236 Mini-ITX motherboard w/ DVI-D, HDMI, DisplayPort, dual Gigabit LAN, RAID, iAMT (11.0) , TPM (1.2), iSMART 3.0 MI991AF LGA1151 Q170 Mini-ITX motherboard w/ DVI-D, HDMI, DisplayPort, dual Gigabit LAN, RAID, iAMT (11.0) , TPM (1.2), iSMART 3.0 MI991EF LGA1151 H110 Mini-ITX motherboard w/ DVI-D, HDMI, DisplayPort, dual Gigabit LAN, EuP/ErP , TPM (1.2), iSMART 3.0
Processor
Intel
Storage Temperature
(-20C~80C (-4CF~176CF)
