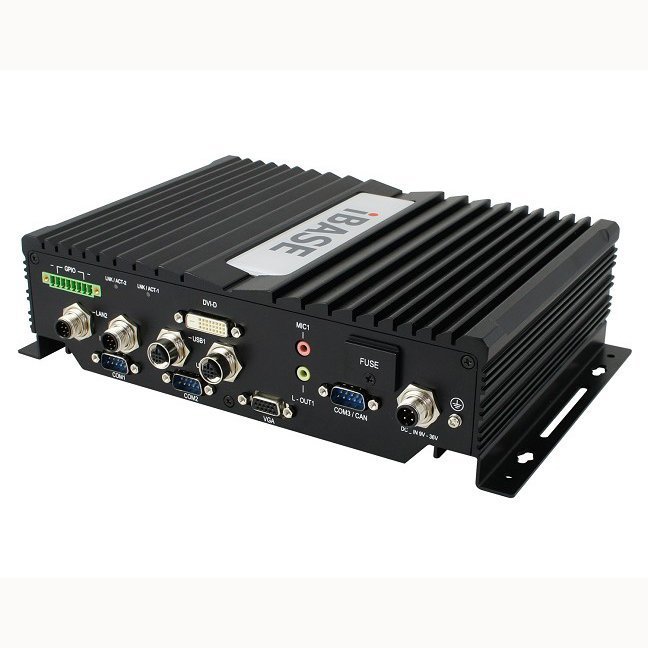

iBASE MPT-3000R Industrial Computer
The 2016 COMPUTEX Best Choice awarded MPT-3000R is an EN50155-certified Fanless railway system featuring M12 style connectors and WWAN redundancy. Designed with a separate cableless power module and network communication capabilities, MPT-3000R is a multi-purpose IoT railway system supports dual WAN slots that provide redundant wireless communication. Unlike competing products with an all-in-one construction, this innovative system is built with a separate self-protecting power module that is swappable based on different power requirements. Suitable for railway applications, MPT-3000R using SSD storage runs in operating temperature between -40 °C to 70 °C, and with built-in adjustable triaxial G-sensor shockproof protection.
MPT-3000R Features
- En50155 Certified
- Fanless Design
- Robust M12 Connection For Dual Gbe, USB and Power Input
- Dual Sim Sockets Supports WWAN Redundancy
- Removable 2.5" Device Bay and Cfast Socket
- Rich I/O Interfaces For Wireless, Ssd, Gps, WWAN and Add-On Card Expansion
- Ignition Power Control
- Wide-Range Voltage Gpio Interface
Request a Quote
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
EN50155:2007, EN50153:2014 EN50121-3-2:2015, CE, FCC
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Dimensions
256.0 (W) x 182.0 (D) x 68.0 (H) mm 10.08 (W) x 7.17 (D) x 2.68(H)
Audio
Intel C236/ Q170/ H110 PCH built-in HD audio + Realtek ALC662 codec
BIOS
AMI
Chassis Color
Black
Construction
Aluminum
Display Interface
Supports DVI-D, HDMI and DisplayPort
Expansion Slots
1x Half size Mini PCI-E socket (USB 2.0) 1x Full size Mini PCI-E socket (USB 2.0 + PCI-E) 1x 2230 Socket 1 M.2 socket (USB 2.0 + PCI-E) 1x 3042 Socket 2 WWAN M.2 socket (USB 2.0) 1x 2280 Socket 3 SSD M.2 socket (SATA)
Form Factor FILTER
Railway System
Front Panel External I/O
CFast, 2.5ï¾€ï¾ device bay, 2nd Mic-In & Line-Out 2x SIM sockets, 1x USB 3.0, 1x USB 2.0, Reset button status LEDs, 4x antenna connectors
H/W Monitor
Yes
I/O Chipset
Fintek F81846D-I 3x RS232, 1x RS232/422/485(Jumper-less selection), 4x SATAIII (MI991AF) or 3x SATAIII (MI991EF)
LAN Connector
RJ-45 on board
LAN Controller
Intel I219LM Gigabit LAN PHY Intel I211AT PCI-E Gigabit LAN
Mounting
Custom mounting rail
Others
Digital I/O(4-in/4-out), EuP/ErP supporting, RAID, TPM(1.2), iAMT(11.0), iSMART
Rear Panel External I/O
DVI-D, VGA, 3x COMs (one with RS422/485 options) 2x M12 GbE, 2x M12 USB 2.0, M12 power connection 1st Mic-In & Line-Out, GPIO, GbE status LEDs
Shock
50 m/s2, 30 msec (EN 61373)
SSD
1x mSATA
Storage
2.5ï¾€ï¾ device bay for SSD & HDD
System Memory
2x 2GB DDR3L-1333 SO-DIMM (Dual Channels)
System Speed
1.91GHz
USB
USB 3.0: 6 ports onboard (MI991AF), 4 ports onboard (MI991EF) USB 2.0: 2 ports onboard (MI991EF), 2 ports via pin-header
VGA Controller
6th Generation Intel Xeon / Core i7 / i5 / i3 / Pentium processor Integrated
VGA Memory
Max. Shared memory 1024MB
Vibration
Function: 1 m/s2, 5Hz ~ 150 Hz (EN 61373) Lifetime: 7.9 m/s2, 5Hz ~ 150 Hz (EN 61373)
Watchdog Timer
256 levels
Expansion
Mini PCI-E
Form Factor
Fanless System
Humidity
10 ~ 95% RH @ 45C Humidity Resistant (non-condensing)
Operating Temperature
SSD: -40C ~ 70C (-40CF~158CF) HDD: -20C ~ 50C (-4CF~122CF)
Ordering Info
MPT-3000RSM MPT-3000R with MBT-3001R (Intel E3845) w/ 2x 4GB DDR3L-1333, SSD bay, No PSU, No storage (RoHS) M12-PWR-Cable-1 120CM M12 Power Cable For MPT Series / Lead Only
Processor
Intel
Storage Temperature
-40C ~ 85C (-40CF~185CF)
The iBASE MPT-3000R Industrial Computer is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the MPT-3000R is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the iBASE MPT-3000R Industrial Computer across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial Computer, Rugged Computer fits your specific needs, please contact us.
The iBASE MPT-3000R Industrial Computer comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE MPT-3000R Industrial Computer, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE MPT-3000R Industrial Computer or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE MPT-3000R Industrial Computer or require a custom solution?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iBASE MPT-3000R or need a custom Industrial Computer solution designed specifically for you, our team of technical experts are ready to assist you.
