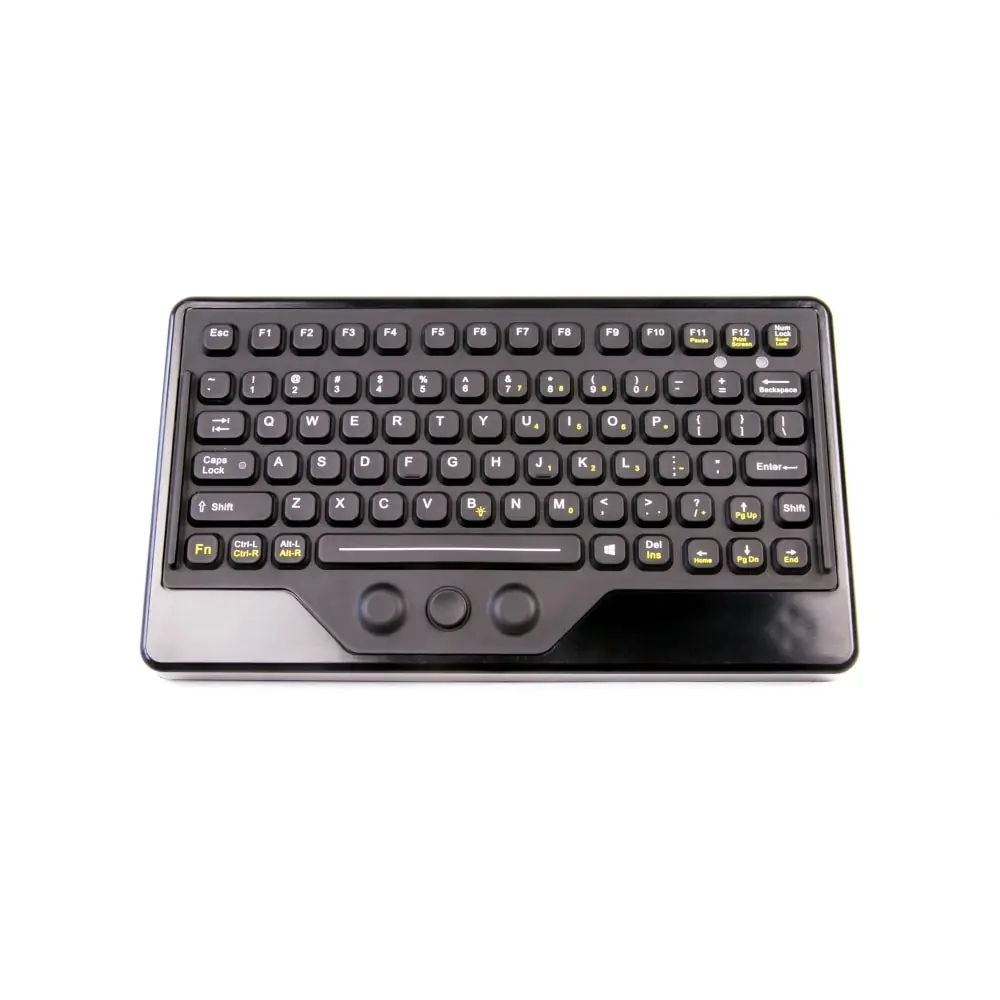

iKey IK-77-FSR Compact Rugged Keyboard With FSR

iKey â„¢s IK-77-FSR is a compact and mobile keyboard that is designed for efficient use in military applications, emergency vehicles, warehouse and factory environments. The IK-77-FSR can also be mounted into forklifts or other work vehicles. Like other keyboards in iKey â„¢s line, it is built with an industrial silicone rubber body and meets NEMA 4X specifications. This means it is resistant to shock, vibration, extreme temperatures, and humidity. This keyboard features an upgraded force sensing resistor pointing device that offers improved sensitivity and increased durability for easy navigation on your device.

IK-77-FSR Features

  • Red LED backlight
  • USB configuration available
  • Industrial silicone rubber
  • 12 function keys
  • Rugged Construction

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

Red

Case Material

ABS Polycarbonate

Certifications

CE, RoHS compliant

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

8.25" x 4.75 x 0.66" (w-h-d) 209.55mm x 120.65mm x 16.764mm

Housing Colour

Black

Humidity

100% Humidity Resistant

Compatibility

USB: All Windows and Macintosh OS

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94 HB INTERFACE CABLE: 94 VO

Function Keys

12 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 million cycles TRAVEL: 0.055 in. ACTUATION FORCE: 7.05 oz. +/- 1.06 oz (200g +/- 30g) FEEDBACK: Tactile with mechanical snap

Lifespan

>10 Million Actuations

No. Of Keys

77

Pointing Device

Force Sensing Resistor

Product Weight

0.5 lbs +/- 0.10 lbs (0.23 kg +/- 0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

200g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: .04g/HZ FREQUENCY RANGE: 20Hz-2Khz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +70C (-40F to +158F) OPERATING: -20C to +60C (-4F to +140F)

The iKey IK-77-FSR Compact Rugged Keyboard With FSR is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the IK-77-FSR is commonly used:

Industrial and Manufacturing, Outdoor and Mobile Computing, Public Safety and Emergency Services, Transport and Logistics

These examples highlight the versatility of the iKey IK-77-FSR Compact Rugged Keyboard With FSR across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The iKey IK-77-FSR Compact Rugged Keyboard With FSR comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey IK-77-FSR Compact Rugged Keyboard With FSR, must be presented to RUGGED in the United Kingdom.

For more information about the iKey IK-77-FSR Compact Rugged Keyboard With FSR or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey IK-77-FSR Compact Rugged Keyboard With FSR or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iKey IK-77-FSR or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
