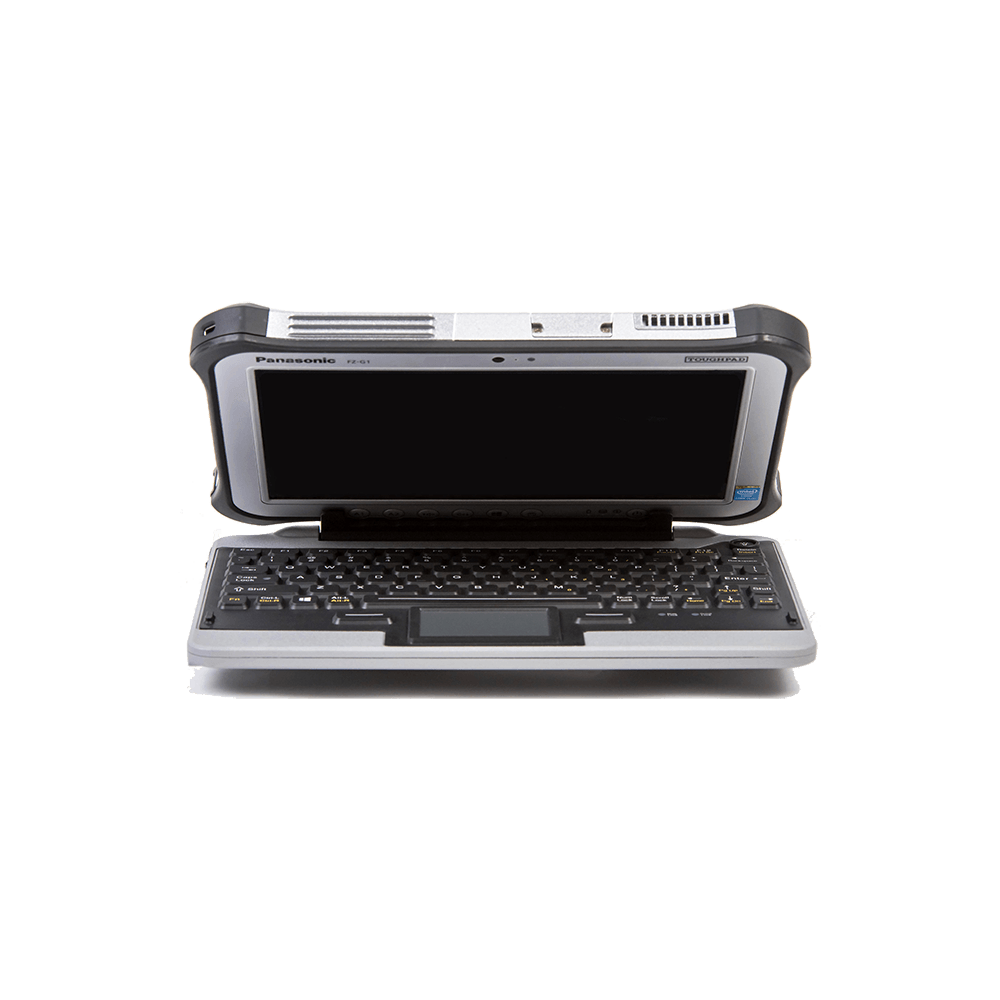

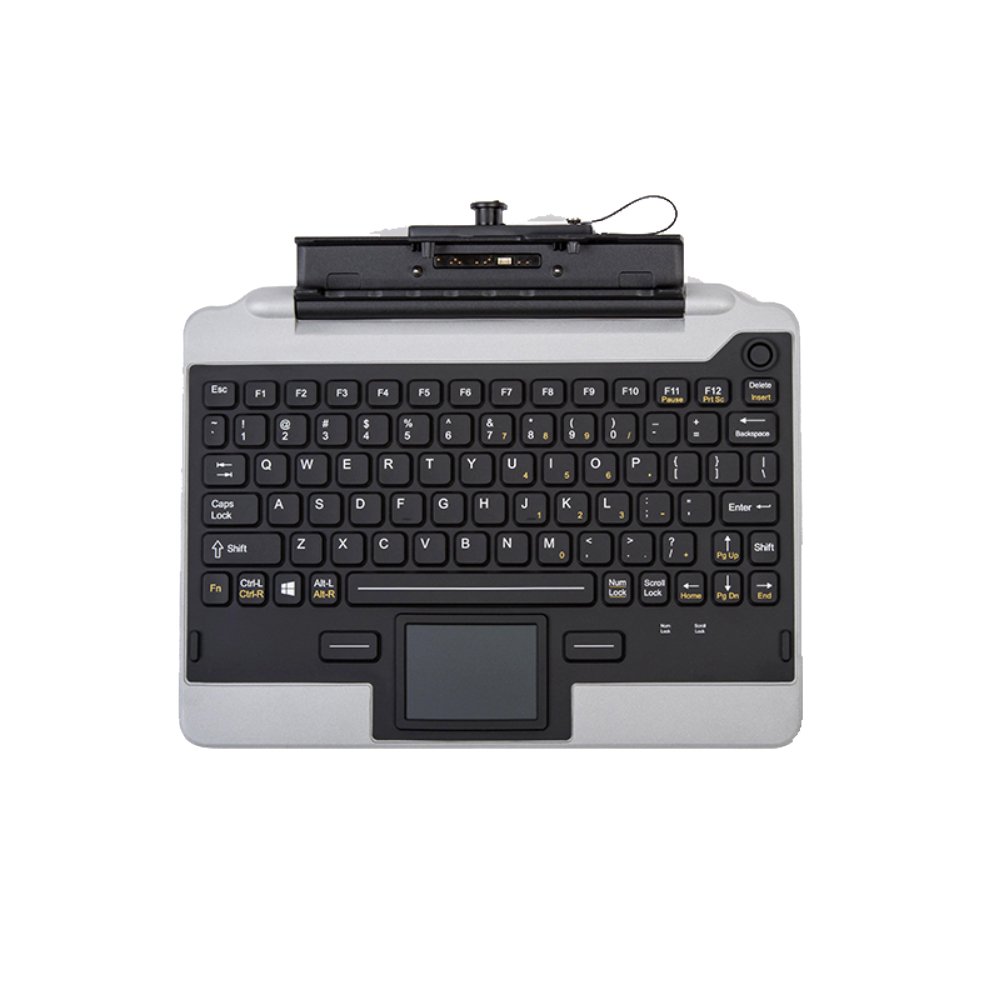

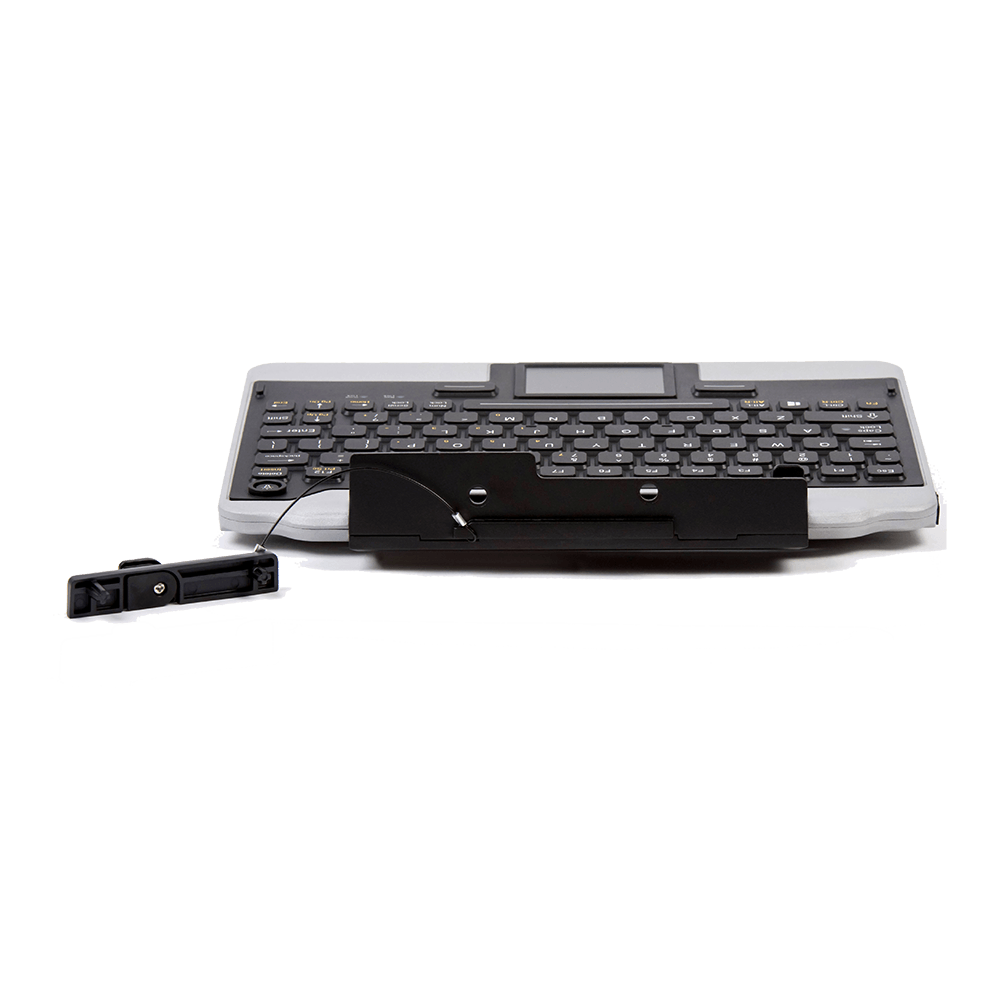

iKey IK-PAN-FZG1-NB-V5 Snap-On Panasonic Rugged Keyboard

iKey ™s new FZ-G1 attachable Jumpseat „¢ keyboard IK-PAN-FZG1-NB-V5 is the first product on the market designed for the Panasonic FZ-G1 tablet to snap into it, providing screen protection and a fully rugged, secure on-the-go keyboard. Improved latching mechanism.

The iKey Jumpseat is sealed and is resistant to the dirt, dust, and spills that can ruin most keyboards. This model does not feature backlighting or USB ports

IK-PAN-FZG1-NB-V5 Features

  • Snap on keyboard for Panasonic FZ-G1 tablet
  • Fully Rugged Keyboard
  • Provides Screen Protection for FZ-G1 Tablet
  • Improved Latching Mechanism
  • Resistant to Dirt, Dust, and Spills

Request a Quote

Format

IP Rating

Manufacturer

Country Of Manufacture

United States

Case Material

Magniusm Alloy

Certifications

CE, RoHS compliant

Custom Options Products

Keyboard Layout,Keyboard Language,Keypad Layout,Backlight Colour,Custom Logo,Epoxy Coating,PU Coating

Dimensions

277.88 x 231.90 x 42.93 mm (10.94 x 9.13 x 1.69 inches)

Function Keys

12Keys

Housing Colour

Silver

Case Material

Robust Metal Case

Compatibility

FZG1Panasonic Tablet Only

Connectivity

Clip-On to Panasonic FZG1 Tablet

Function Keys

12 Function Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Spacing

18 mm

Key Switch

Carbon Contact Technology

LED Indicators

Num Lock, Scroll Lock, Caps Lock

Lifespan

>10 Million Actuations

Mounting Type

Panasonic FZ-G1 Clip On

No. Of Keys

88

Operating Force

Adjustable

Pointing Device

Touchpad

Product Weight

1.8 lbs +/- 0.10 lbs (0.90 kg +/- 0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Vibration

POWER SPECTRAL DENSITY: .04g/HZ FREQUENCY RANGE: 20Hz-2Khz DURATION OF TEST PER AXIS: 3 hours

Operating Temperature

-20C to 60C (-4F to 140F)

Ordering Info

IK-PAN-FZG1-NB-V5-XX - XX = Keyboard Layout i.e. UK, US..

Shock

3 X 11 ms pulses of 50g on each of 3 axes

Storage Temperature

-40C to 75C (-40F to 167F)

The iKey IK-PAN-FZG1-NB-V5 Snap-On Panasonic Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the IK-PAN-FZG1-NB-V5 is commonly used:

Industrial and Manufacturing

These examples highlight the versatility of the iKey IK-PAN-FZG1-NB-V5 Snap-On Panasonic Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The iKey IK-PAN-FZG1-NB-V5 Snap-On Panasonic Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey IK-PAN-FZG1-NB-V5 Snap-On Panasonic Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey IK-PAN-FZG1-NB-V5 Snap-On Panasonic Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey IK-PAN-FZG1-NB-V5 Snap-On Panasonic Rugged Keyboard or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iKey IK-PAN-FZG1-NB-V5 or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
