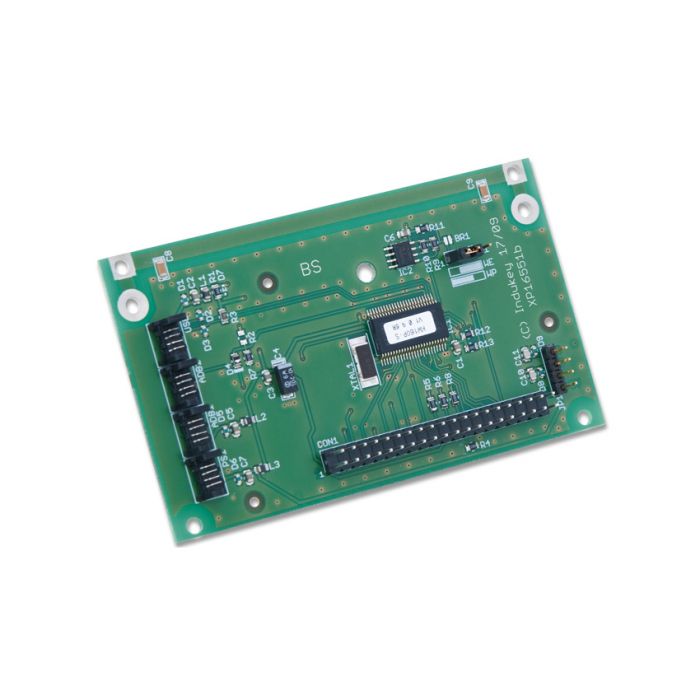

InduKey TKC-6800 Keyboard Decoder
Compact keyboard decoder for USB and PS/2+AT connection. Output of up to 8 scan codes
TKC-6800 Features
- Flexible Application
- Compact Keyboard Decoder For USB and PS2+At Connectio
- Output Of Up To 8 Scan Codes Can Be Displayed Per Key
- Four Light-Emitting Diodes (Num-Lock, Caps-Lock, Scroll-Lock, Power On)
- Individual Modifications On Demand
- Customisation Available On Request
Request a Quote
Backlight
Red
Case Material
ABS Polycarbonate
Certifications
RoHS Compliant, CE
Custom Options Products
Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface
Dimensions
65 x 50 x 10 mm
Housing Colour
Black
Humidity
100% Humidity Resistant
Cable
LENGTH: 4 ft coiled (1.2m) DESIGN: PS/2 or USB Cable
Compatibility
All Windows and Macintosh Operating Systems
Flammability
PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO
Function Keys
24 Keys
Input
Pin Header 2 x 17-pole 2.54 (2-row)
Interface Connector
MICS/SMD4
Key Feedback
Tactile with Mechanical Snap
Key Material
Epoxy
Key Switch
MATERIAL: Epoxy-Coated Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.03 oz. +/- 0.70 oz. (200g +/- 20g) FEEDBACK: Tactile with Mechanical Snap
Layers
2
Lifespan
>10 Million Actuations
No. Of Keys
142
Pointing Device
No Pointer
Power
PS/2: KEYBOARD: 200mA@5V (from Keyboard port) USB: 200mA@5V (from CPU port)
Product Weight
15 g
Programmable
Programmable
Shock
3 x 11 ms Pulses of 50g on each of 3 Axes
Supply Current
10 mA
Supply Voltage
5 V DC
Switch Force
200g (+/- 20g)
Switch / Key Travel
0.055 in (1.4mm)
Vibration
POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours
Shock
3 x 11 ms Pulses of 50g on each of 3 Axes
Temperature Rating
STORAGE: 0C to + 80C OPERATING:0C to + 70C
The InduKey TKC-6800 Keyboard Decoder is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the TKC-6800 is commonly used:
These examples highlight the versatility of the InduKey TKC-6800 Keyboard Decoder across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard Decoder fits your specific needs, please contact us.
The InduKey TKC-6800 Keyboard Decoder comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, InduKey TKC-6800 Keyboard Decoder, must be presented to RUGGED in the United Kingdom.
For more information about the InduKey TKC-6800 Keyboard Decoder or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the InduKey TKC-6800 Keyboard Decoder?
If you have any questions about the InduKey TKC-6800 please get in touch today, our team of technical experts are ready to assist you.
