Inseego Skyus 160 LTE IoT Gateway Router
With Cat 6 LTE speeds (up to 300 Mbps downloads and 50 Mbps uploads) and a built-in battery backup, the Skyus 160 can support your most important workloads.
Use it for mobile applications like creating a vehicle hotspot, setting up a temporary job site or working from home. It ™s also ideal for fixed environments such as SD-WAN installations for retail locations or branch offices.
* Battery life may vary depending on the number of connected devices and activity.
SK160NE-ACR Features
- Multiple data interfaces: Ethernet, USB, Wi-Fi
- 24/7/365 secure connectivity
- Multiple power interfaces: PoE, USB, built-in 4400 mAh 12-hour backup battery for power loss protection*
- 4-pin dual SIM slots
- Wi-Fi 5 and Bluetooth 5.0
- aGNSS (with active and passive GNSS antenna support)
- Compact Rugged Design
- Always connected - Built-in Battery Backup
Request a Quote
Product Type
Format
Manufacturer
Country Of Manufacture
United States

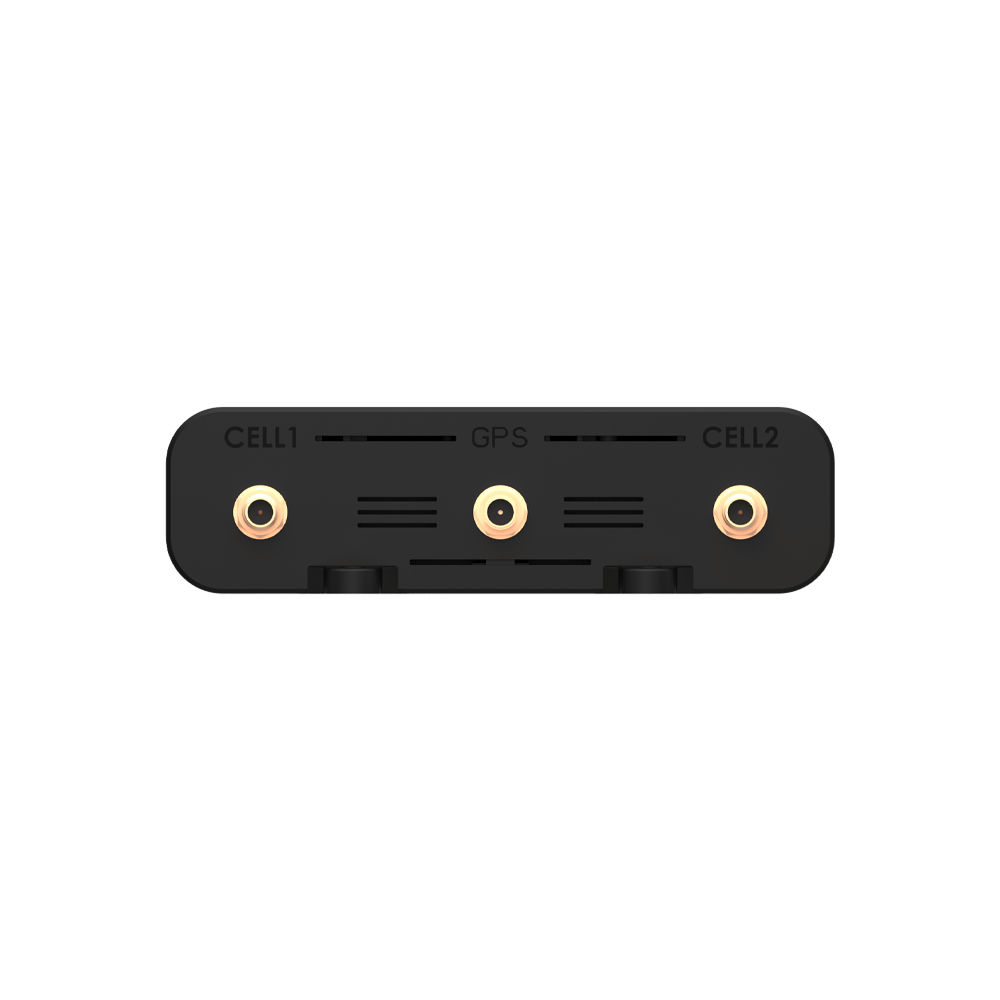

Antenna Connectors
Two SMAs for External Cellular Antennas, One SMA for External GNSS Antenna, Internal Wi-Fi/BT Antennas
Approvals / Certifications
GCF, PTCRB (General), IC, cUL (Canada), CE RED, e-Mark, Halogen Free, REACH, RoHS, WEEE (EU), FCC, UL, Ozone Depleting, CA BCS, CA Prop 65 (USA)
Bluetooth
BT5.0, BLE Long Range, 20+ Clients, 200m Range (supports Marathon Products EDL-BT04 and EDL-BT05)
Cellular Connectivity
4G LTE CAT-6 B1-B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41 (Supports 2 Carrier Aggregation Downlink) 3G (HSPA+, UMTS) B1, B2, B3, B4, B5, B8
Custom Options Products
Custom Logo,Case Colour,Connections,Anti-Bacterial Coating,Custom Printing,Mounting Options
Dimensions
118 x 98 x 33 mm (4.65 x 3.85 x 1.31 in)
Ethernet Ports
RJ45 Ethernet (PoE in)
GNSS Connector
SMA
GNSS No. of Antennas
One SMA for External GNSS Antenna
GNSS Technology
aGNSS (GPS, GLONASS, Galileo), NMEA, SUPL 2.0 Support, Local UDP, Remote Streaming
Housing Colour
Black
Model
SK160NE-ACR
Power Supply
5 ± 0.25 VDC @ 1A (powered USB 2.0 connection required) via USB Micro-B Connector 9-32 VDC via 4-pin Connector PoE in from PoE host Backup Battery • 4400 mAh Li-ion Rechargeable Pack • 12 Hours of Backup Power3
Operating Temperature
Normal Operation: -20– 50 °C (-4 – 122 °F)
Ordering Info
SK160NE-ACR
Storage Temperature
Storage: -20 – 60 °C (-4 – 140 °F)
WI-FI Antennas
Internal
WI-FI Frequency Bands
802.11 a/b/g/n/ac
WI-FI Standards
Wi-Fi 5 (802.11 a/b/g/n/ac) - Supports up to 15 clients
The Inseego Skyus 160 LTE IoT Gateway Router is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the SK160NE-ACR is commonly used:
Industrial and Manufacturing, Medical and Healthcare, Outdoor and Mobile Computing, Pharmaceutical, Public Safety and Emergency Services, Transport and Logistics
These examples highlight the versatility of the Inseego Skyus 160 LTE IoT Gateway Router across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial IoT Gateway fits your specific needs, please contact us.
The Inseego Skyus 160 LTE IoT Gateway Router comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Inseego Skyus 160 LTE IoT Gateway Router, must be presented to RUGGED in the United Kingdom.
For more information about the Inseego Skyus 160 LTE IoT Gateway Router or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Inseego Skyus 160 LTE IoT Gateway Router or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the Inseego SK160NE-ACR or need a custom Industrial IoT Gateway solution designed specifically for you, our team of technical experts are ready to assist you.
