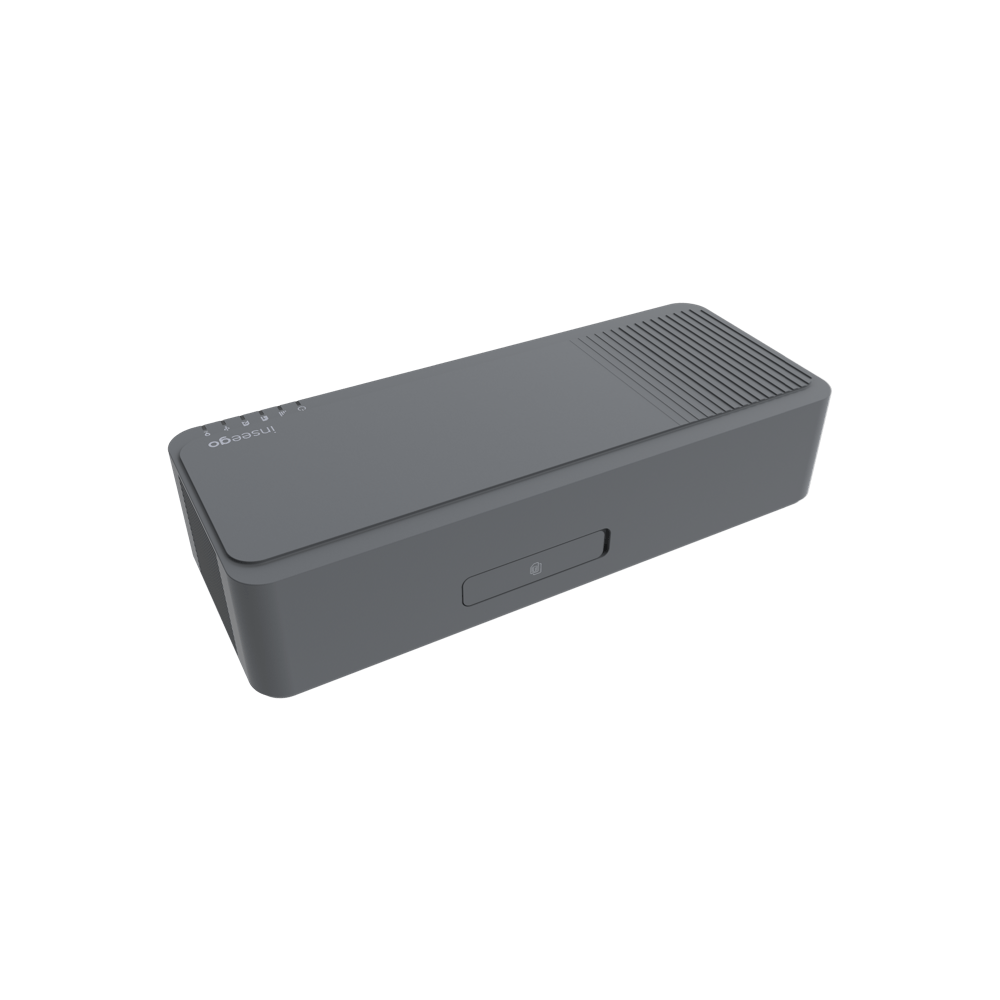

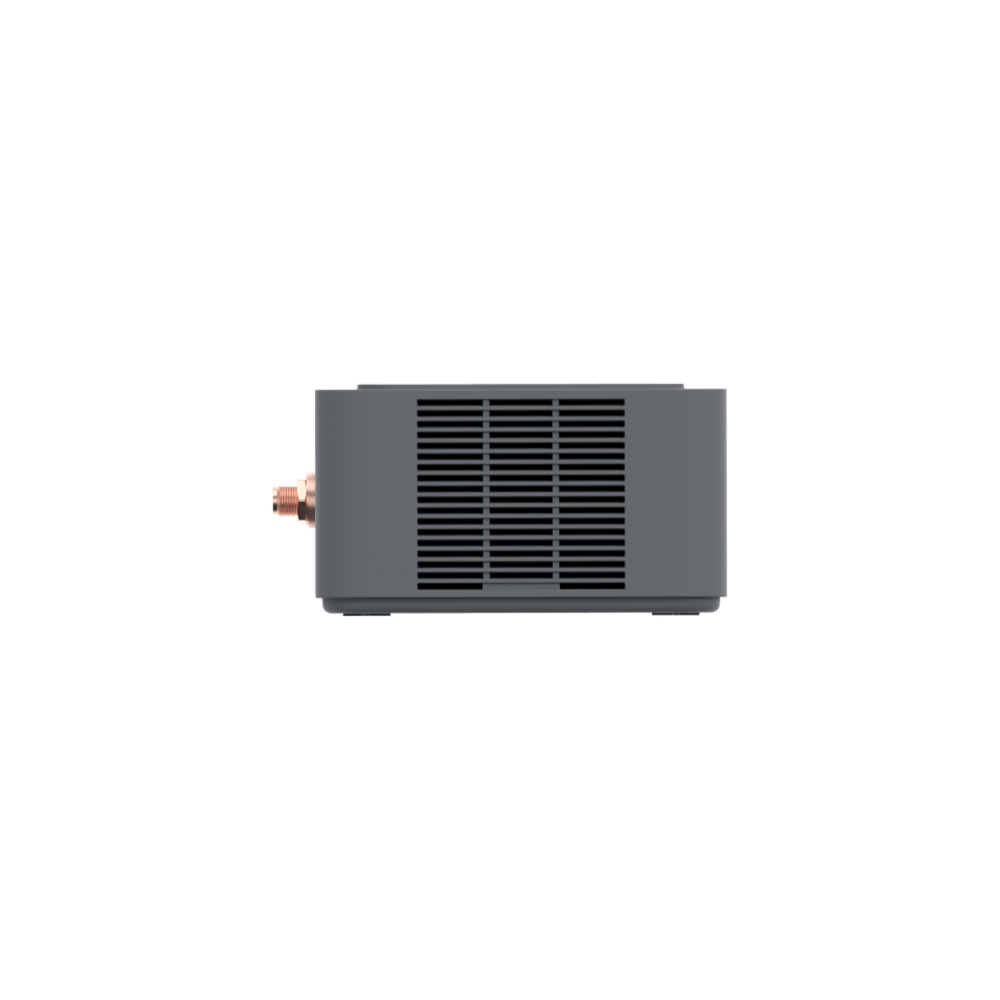

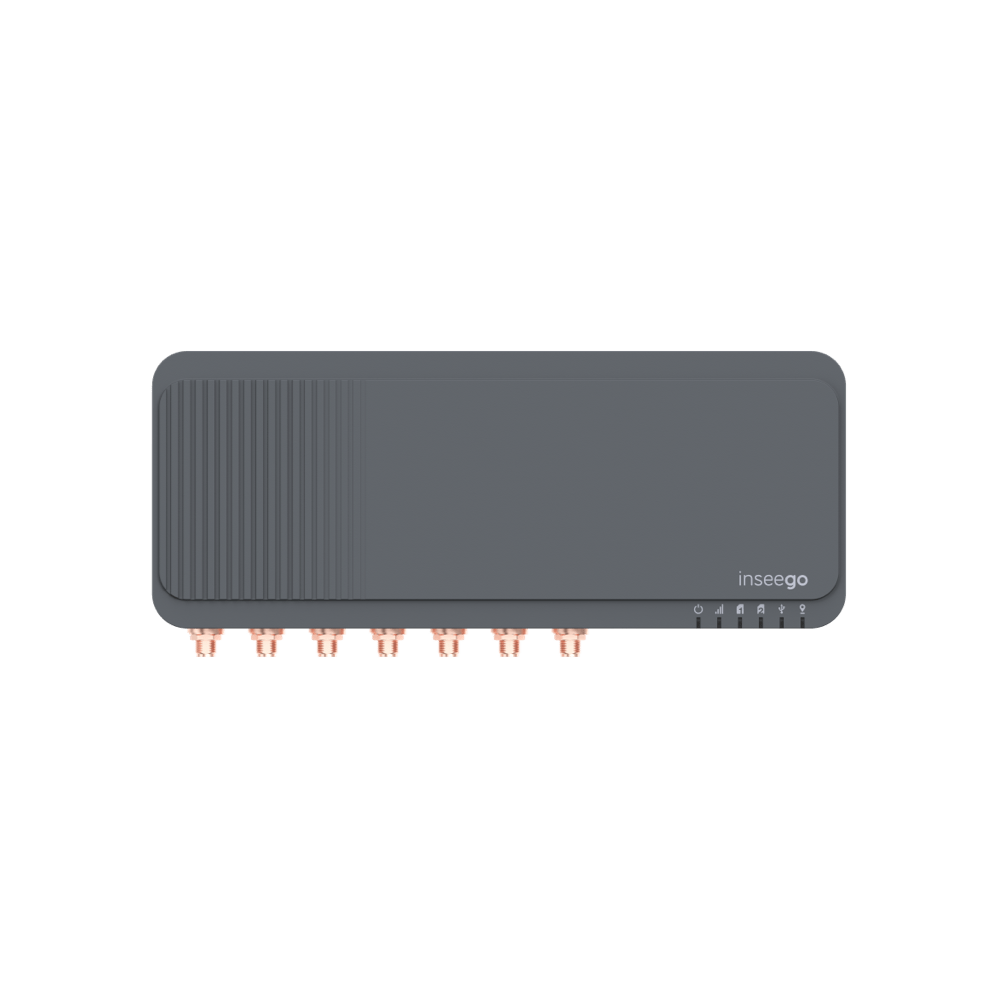

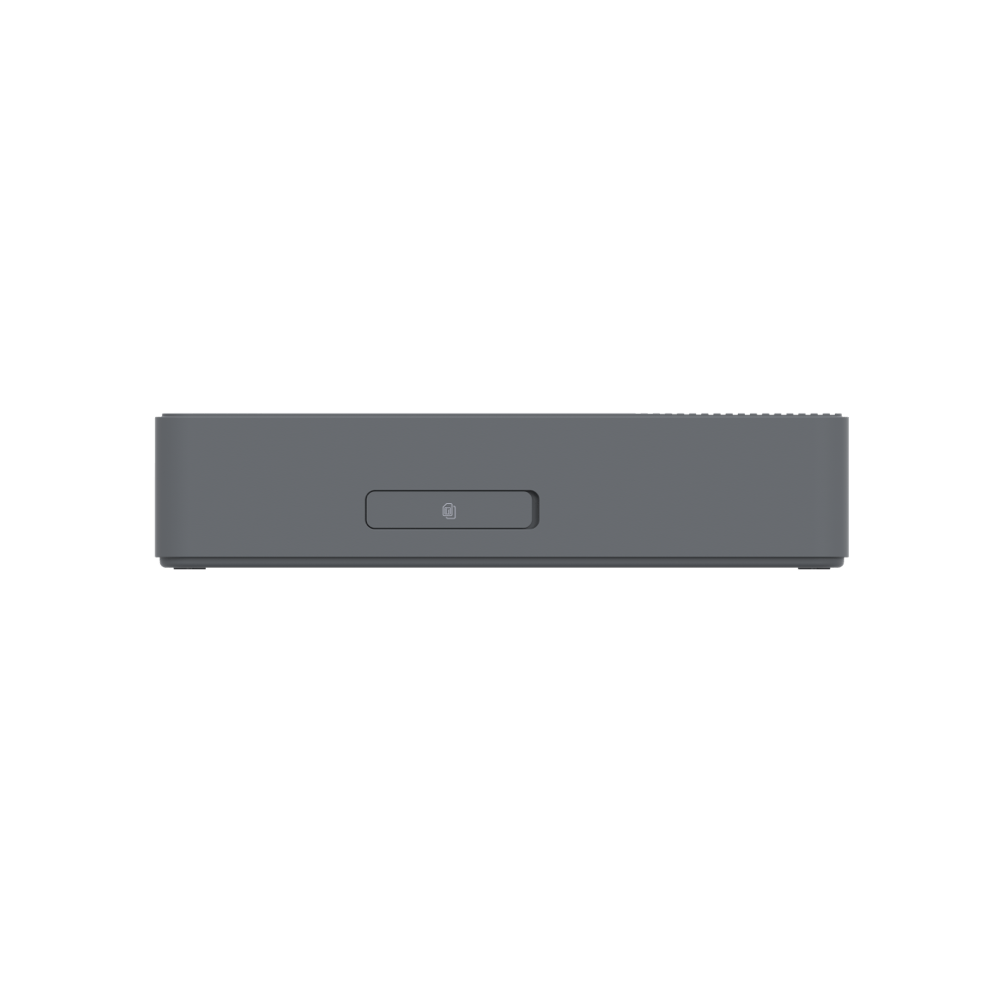

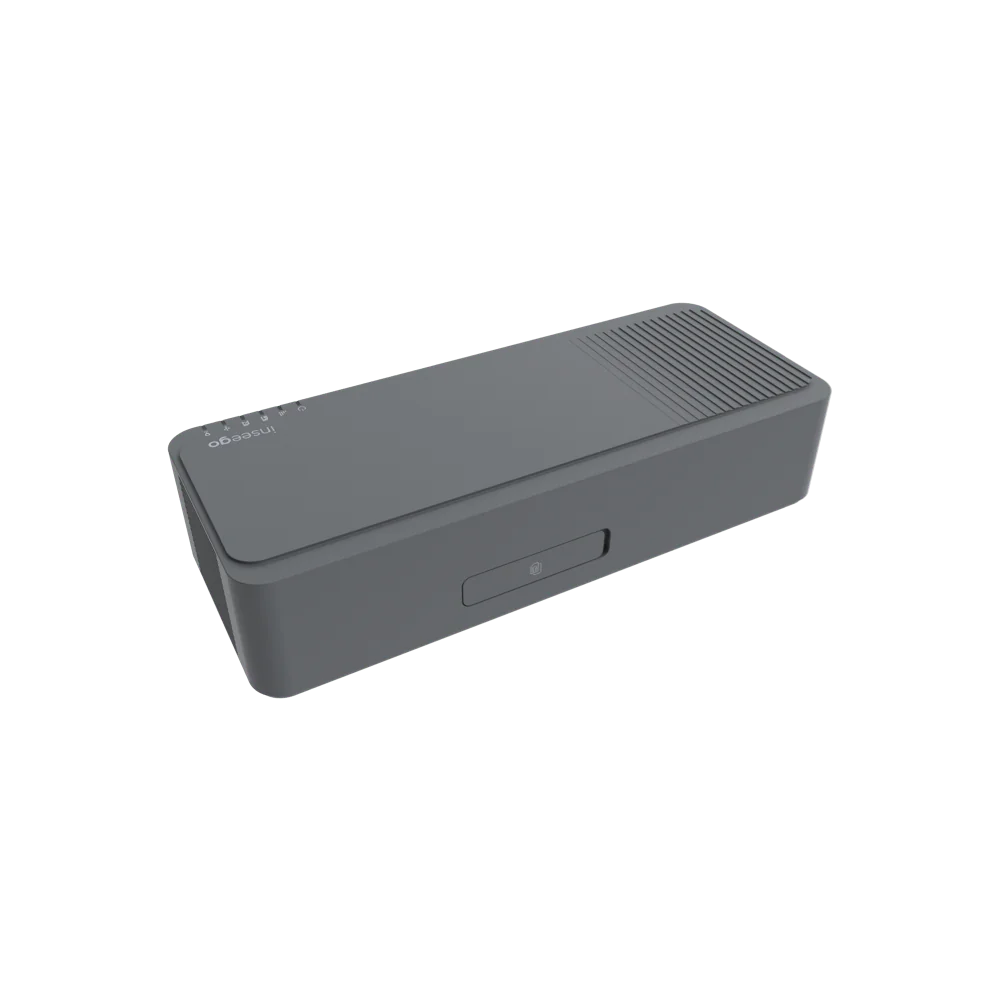

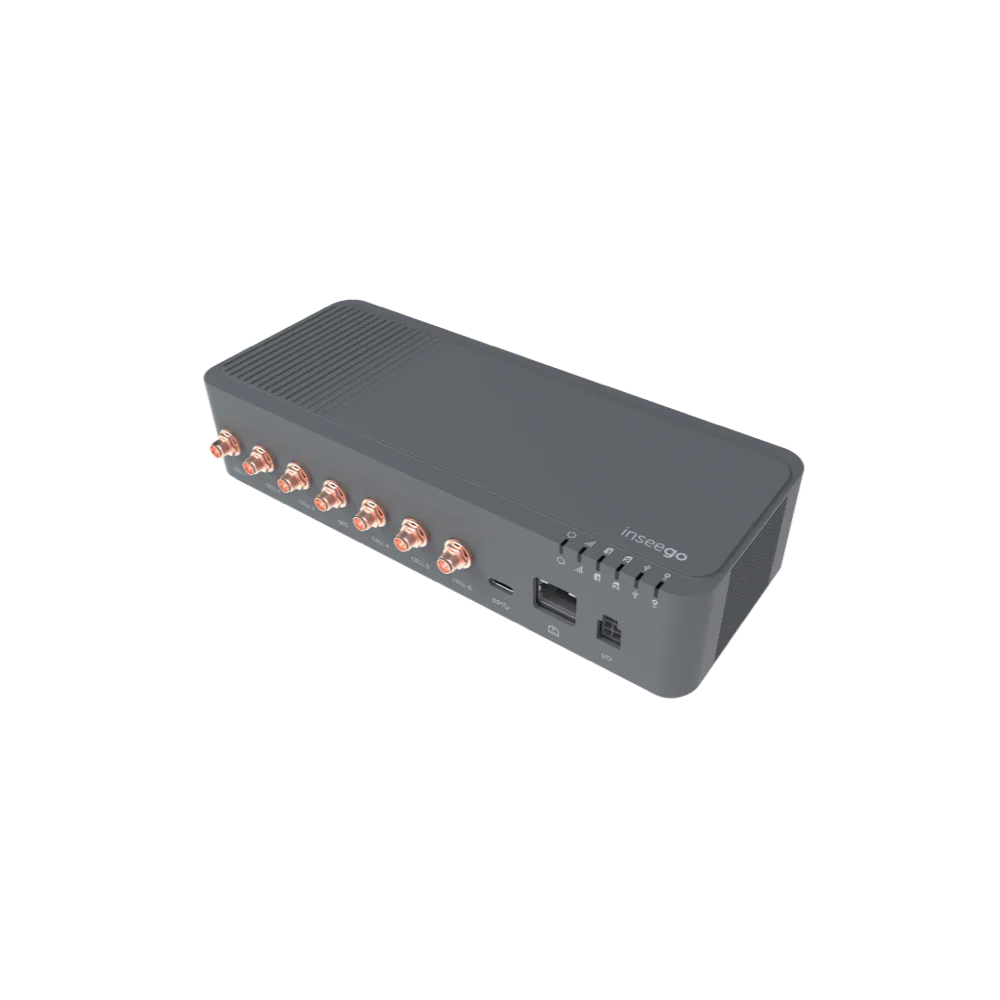

Inseego Wavemaker PRO 5G industrial Gateway S2000E
This powerful, high-performance 5G industrial gateway can deliver multi-gigabit speeds, low latency and secure, reliable connections for facilities and distributed operations in virtually any location, from urban centers to rural areas.
Use the S2000e to bring 5G to an existing router, or to connect remote surveillance cameras, kiosks, digital displays and other IoT endpoints.
Combining six antenna ports and 4×4 MU-MIMO with Inseego ™s proprietary thermal mitigation technology, it delivers sustained high throughput even at the edge of the network.
The S2000e provides ethernet, USB and I/O ports along with multiple power options and mounting options, offering the flexibility for almost any deployment scenario. The Inseego mobile app simplifies self-installation and Inseego Connect „¢ cloud management makes it easy to configure, monitor and maintain the S2000e remotely.
With unsurpassed RF performance and device-to-cloud intelligence, the S2000e industrial gateway opens the door to many new business solutions
S2000E Features
- Ultra-reliable global connectivity
- 24/7 Continuous multi-gigabit connection
- Millisecond latency
- Rugged Industrial-grade hardware
- Convenient remote device management capabilities
Request a Quote
Certifications
RoHS, WEEE, REACH
Connectivity
Sub-6 GHz only or sub-6 GHz + mmW_x005F_x000D_ 200 MHz sub-6 GHz max bandwidth_x005F_x000D_ 5G NR standalone (SA) sub-6 GHZ and non-standalone (NSA)_x005F_x000D_ Dynamic spectrum sharing (DSS) _x005F_x000D_ 4G LTE Cat 22 fallback
Custom Options Products
Custom Logo,Case Colour,Connections,Conformal Coating,Anti-Bacterial Coating,Laser Etching,Power Supply,Mounting Options
Dimensions
200 x 80 x 45 mm
Housing Colour
Grey
Networking
WAN with active keep-alive _x005F_x000D_ Dual SIM with auto-APN and automatic switching_x005F_x000D_ Ethernet or USB IP Passthrough (IPPT, modem mode)_x005F_x000D_ Port forwarding_x005F_x000D_ Port filtering_x005F_x000D_ MAC filtering _x005F_x000D_ DHCP_x005F_x000D_ DMZ_x005F_x000D_ Configurable DNS_x005F_x000D_ MAC address filtering_x005F_x000D_ Public and private APN support_x005F_x000D_ Commercial and private LTE 5G support_x005F_x000D_ USB WAN support3
Power Supply
Options:_x005F_x000D_ 4 Pin AC power supply_x005F_x000D_ 4 Pin DC power and I/O supply_x005F_x000D_ PoE injector_x005F_x000D_ USB power delivery (15W Min), requires 15W from USB PD host
Operating Temperature
Minus 30 to 65 °C, storage: -40 to 85 °C
Ordering Info
AC adapter - in box_x005F_x000D_ DC and I/O cable- in box_x005F_x000D_ POE injector - sold separately_x005F_x000D_ Mounting brackets- sold separately_x005F_x000D_ Dipole and multi-element antennas - sold separately
Ports

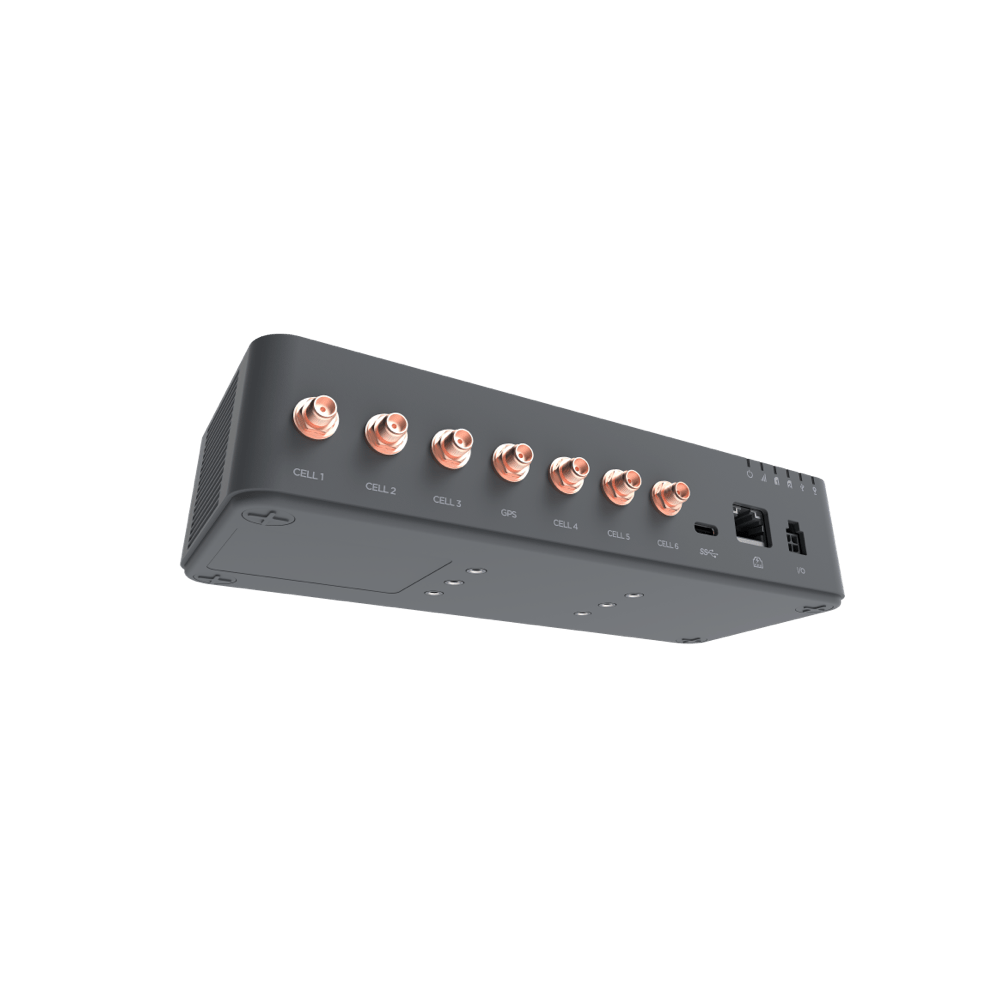

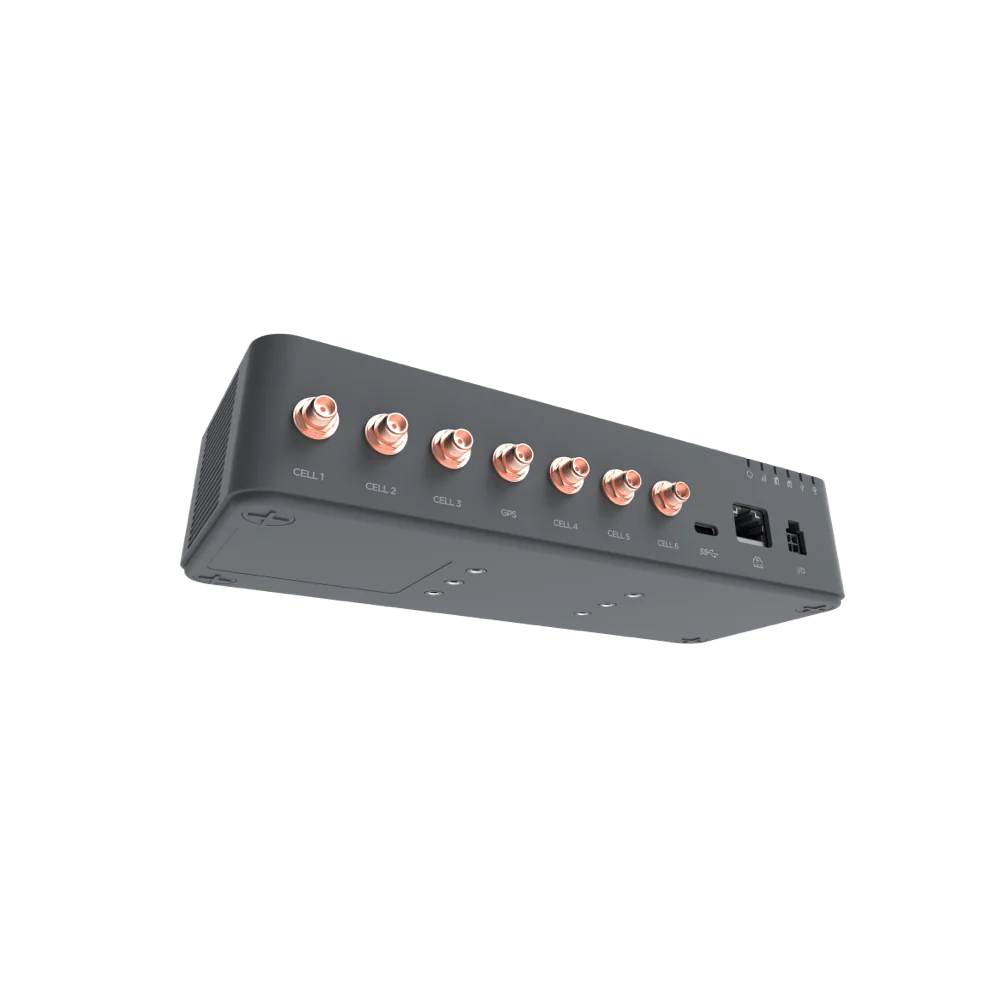

1x 5 Gb Ethernet RJ45 with Power over Ethernet, 4.9 Gbps max throughput2_x005F_x000D_ 1 x USB 3.1 type C (USB tethering, USB WAN modem, USB to Ethernet RJ45 adapter), 2.7 Gbps max throughput2 _x005F_x000D_ 6 x Female SMA for cellular _x005F_x000D_ 1 x Female SMA for GNSS_x005F_x000D_ 1 x 4 Pin power and I/O (2 x digital input output pins)
Security Features
Device cybersecurity agent3_x005F_x000D_ NAT firewall_x005F_x000D_ VPN pass-through, OpenVPN, IPsec VPN3_x005F_x000D_ Security hardened web interface_x005F_x000D_ Fully encrypted log files_x005F_x000D_ Fully encrypted cloud agent_x005F_x000D_ Anti-CSRF_x005F_x000D_ Session timeout and incorrect password lockout_x005F_x000D_ Admin portal to block factory rese
SIM Slots

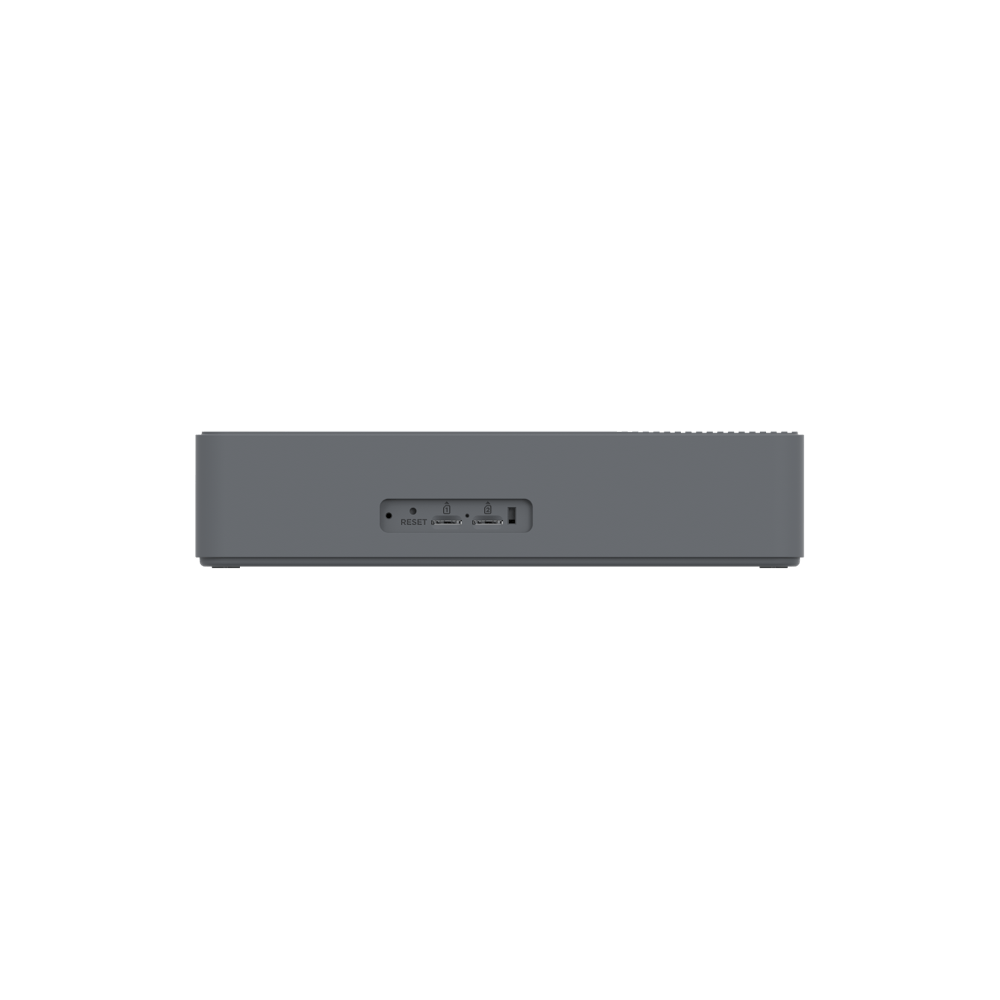

2x User accessible 4FF nano SIM, Multi-carrier support with auto-switching
The Inseego Wavemaker PRO 5G industrial Gateway S2000E is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the S2000E is commonly used:
Industrial and Manufacturing, Medical and Healthcare, Outdoor and Mobile Computing, Pharmaceutical, Public Safety and Emergency Services, Transport and Logistics
These examples highlight the versatility of the Inseego Wavemaker PRO 5G industrial Gateway S2000E across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial IoT Gateway fits your specific needs, please contact us.
The Inseego Wavemaker PRO 5G industrial Gateway S2000E comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Inseego Wavemaker PRO 5G industrial Gateway S2000E, must be presented to RUGGED in the United Kingdom.
For more information about the Inseego Wavemaker PRO 5G industrial Gateway S2000E or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Inseego Wavemaker PRO 5G industrial Gateway S2000E or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the Inseego S2000E or need a custom Industrial IoT Gateway solution designed specifically for you, our team of technical experts are ready to assist you.
