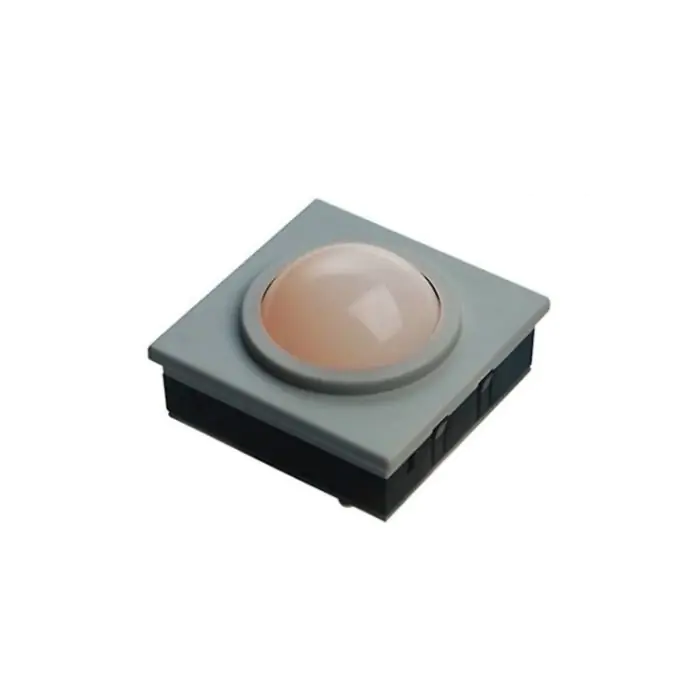

Cursor Controls K34 Trackball
A high specification Trackerball with four integral switches that provides an immediate integrated cursor control solution for keyboard, console or process control applications. Compact dimensions, high performance components and ABS construction ensure a precise performing long-term control solution for professional keyboard systems.
K34 Features
- Compact, Low Profile Dimensions
- High-Grade Components
- Quadrature, PS2
- Integrated 4-Switch Format
- Microsoft Dos, Windows & Nt Compatible
- Excellent Environmental Capabilities
- USB & PS2 (Auto-Select) Or Sun Systems
Request a Quote
Product Type
Format
Manufacturer
Country Of Manufacture
United Kingdom
Case Material
ABS Polycarbonate
Certifications
CE, RoHS compliant
Custom Options Products
Cable Type,Cable Length,Interface,Trackball Colour
Housing Colour
Grey
Humidity
30% min, 95% max, non-condensing
Lifetime
>6 million ball revolutions - non-sealed
Storage Temperature
Storage Temperature -20C to +60 C
Temperature Rating
Operating Temperature -10C to +55C
Ball
Thermoset Phenolic or Polyester, 34mm, 13/8"
Ball Load
100N Maximum downward pressure (10Kg) @ 20C
Ball Rotation
Continuous and reversible in any direction
Ball Speed
100 RPM maximum
Housing Material
ABS in grey
Mounting Filter
Top Mount
Mounting Position
Horizontal to 30
Power
Supply Voltage 5 V DC +/- 5%
Supply Current Quadrature format 10ma typical
Resolution
183 pulses per ball revolution (other options available)
Tracking Force
7gms Nominal continuous no seal (IP40)
Transducers
Photo-optical encoders with LEDS
The Cursor Controls K34 Trackball is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the K34 is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the Cursor Controls K34 Trackball across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Rugged Trackball, Trackball fits your specific needs, please contact us.
The Cursor Controls K34 Trackball comes with a 18 Month Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Cursor Controls K34 Trackball, must be presented to RUGGED in the United Kingdom.
For more information about the Cursor Controls K34 Trackball or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Cursor Controls K34 Trackball or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the Cursor Controls K34 or need a custom Trackball solution designed specifically for you, our team of technical experts are ready to assist you.
Alternative Products
Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.
Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.
Browse through our related products and find the perfect match that complements your choice seamlessly.
M50-Mechanical
- Sealing Up To IP65 (BS En 60529)
- Smooth Operation In Rugged Environments
- Various Top Plate Configurations
- Solid State Sensing Technology
- USB & PS2 (Auto-Select) Or Sun Systems
- Smooth Operation In Rugged Environments
E50-Panel-Halo
- Halo Illumination On The Ball and Switches
- Solid State Optical Trackball
- Integrated Hall-Effect Scroll Wheel
Having trouble finding what you're looking for?
Selecting the right product for your specific application and environment can be quite challenging. At Rugged, our team of experts is on hand to assist you in making the best choice. Whether you have questions about product specifications or require guidance through our range of solutions, we’re here to help.
With our extensive industry knowledge and commitment to quality, we can ensure you find the ideal solution tailored to your needs.
Frequently Asked Questions
FB Peripherals offers free technical support for the lifetime of products you purchase. This includes help with setup, troubleshooting, and integration. Support is available online or directly from the technical team
A trackball is a pointing device consisting of a ball held in a socket that detects rotation along two axes, allowing precise cursor control without moving the entire device. Unlike a traditional mouse, a trackball remains stationary, making it ideal for confined or harsh industrial environments. Industrial trackballs are specifically designed with rugged construction to withstand extreme conditions such as dust, moisture, and mechanical impact. For applications requiring durability and reliability, FB Peripherals offers a range of robust industrial trackballs suited to mission-critical tasks.
Trackballs are widely utilised in industrial, medical, and military applications where precise cursor control is essential. Unlike traditional mice, trackballs remain stationary, making them ideal for harsh or confined environments. They offer high durability and reliability, crucial for mission-critical operations. Common trackball applications include rugged workstations, control panels, and kiosks, particularly in settings exposed to dust, moisture, or vibration. FB Peripherals specialises in supplying robust, industrial-grade trackballs designed for such demanding scenarios. For more information on rugged trackballs suited to challenging environments, visit FB Peripherals’ rugged trackballs.
Yes, trackballs can be panel mounted, offering a robust and space-efficient input solution for industrial and mission-critical environments. Panel mount trackballs are designed to be securely installed within control panels, allowing seamless integration with rugged systems. This mounting style enhances durability and protects the device from harsh conditions such as dust, moisture, and vibration. FB Peripherals is a trusted supplier of high-quality panel mount trackballs, providing reliable performance for demanding applications where durability and precision are paramount.
Glove friendly trackballs are specifically designed to operate efficiently even when users wear gloves, making them ideal for harsh or industrial environments. Unlike standard trackballs, these devices feature robust sensors and larger balls that accommodate the reduced tactile feedback caused by gloves. This ensures reliable cursor control without compromising hygiene or safety protocols. For mission-critical applications requiring rugged, glove compatible input devices, FB Peripherals offers a comprehensive range of robust trackballs tailored to withstand challenging conditions while supporting glove use.
Industrial trackballs are highly suitable for use in harsh and mission-critical environments. Unlike standard input devices, they offer enhanced durability, sealed designs to prevent ingress of dust and moisture, and robust construction to withstand heavy usage. Their stationary nature reduces mechanical wear, ensuring reliable performance in industrial settings. FB Peripherals provides a range of rugged trackballs specifically designed for industrial applications, making them a trusted supplier for businesses seeking dependable and long-lasting input solutions. For more details on ruggedised options, visit FB Peripherals’ rugged trackballs.
A rugged trackball is a durable pointing device designed to operate reliably in harsh industrial and mission-critical environments. Unlike standard trackballs, rugged trackballs are built to withstand extreme temperatures, dust, moisture, and mechanical shock. They provide precise cursor control without the need for a flat surface, making them ideal for cramped or challenging workspaces. FB Peripherals offers a comprehensive range of rugged trackballs that combine robust construction with ergonomic design, ensuring long-lasting performance in demanding applications.
Yes, trackballs are known for their precise control, making them suitable for applications requiring fine cursor movements. Precision trackballs offer enhanced accuracy compared to standard mice, as they allow users to manipulate the cursor with subtle finger movements without the need for large desk space. This feature is particularly beneficial in rugged industrial environments where reliable, precise input is critical. FB Peripherals provides a range of rugged trackballs designed to deliver exceptional precision and durability for mission-critical applications in harsh conditions.
Trackballs are generally easier to clean than traditional mice due to their stationary design, which reduces dirt and debris accumulation on surfaces. The exposed ball can be quickly removed and cleaned, ensuring smooth operation without the need to move the entire device. This makes trackballs particularly suitable for rugged and mission-critical environments where hygiene and reliability are paramount. For industrial applications demanding robust, easy-to-maintain input devices, FB Peripherals offers a selection of Easy Clean Trackballs designed for harsh conditions and effortless maintenance.
