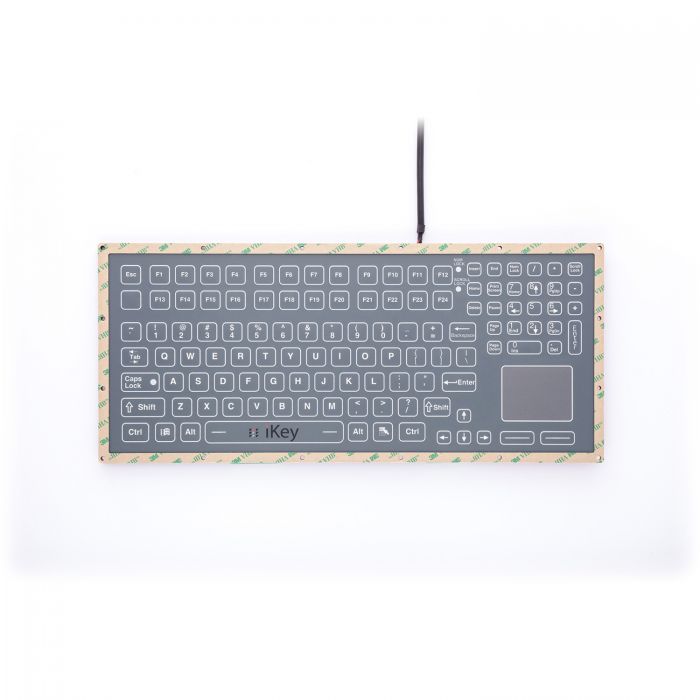

iKey KYB-5K-MEM-TP-OEM Rugged Keyboard

The KYB-5K-MEM-TP-OEM is the OEM model of iKey’s newest membrane keyboard product line. This industrial membrane keyboard is built to withstand the harshest of environments.

Modelled after iKey’s popular 5K product line, this keyboard is manufactured with a hard coated, textured polyester film and trampoline-mounted, snap-dome switches that provide a superior feel and actuation over a standard membrane keyboard.

Since this keyboard lacks the crevices found between the keys of a regular keyboard, it is extremely durable and easy to clean. When installed correctly, the KYB-5K-MEM-TP-OEM is designed to meet NEMA 4X specifications, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.

KYB-5K-MEM-TP-OEM Features

  • Industrial Grade Stainless Steel Case
  • Integrated Touchpad
  • Hard Coated Textured Polyester Film
  • 24 Function Keys + 10-Key Numeric Pad
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

No Backlight

Case Material

No Case

Certifications

IP Rated, NEMA 4X;IP67; UL60950; FCC Part 15 Class B; CE

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

15.05" x 6.55" x 0.53" (w-h-d) 382.3mm x 166.4mm x 13.5mm Panel Cutout Dimensions: 14.2" x 5.7"

Housing Colour

Black

Humidity

100% Humidity Resistant (when properly installed)

Cable

LENGTH: 10 feet (3 meters) DESIGN: "Y" PS/2 Cable (providing separate keyboard and mouse connections), or Single-Cable USB

Compatibility

PS/2 KEYBOARD/TOUCHPAD: All Windows Operating Systems USB KEYBOARD/TOUCHPAD: All Windows and Macintosh OS

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

24 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Membrane

Key Switch

MATERIAL: Hardcoated Textured Polyester Film LIFE: Greater Than 2 Million Cycles TRAVEL: 0.020 in. (Positively effected by Trampoline Mounting) ACTUATION FORCE: 9.88 oz +/- 1.06 oz FEEDBACK: Tactile with Mechanical Snap

Lifespan

>5 Million Actuations

No. Of Keys

116

Pointing Device

Touchpad

Power

PS2: KEYBOARD: 40mA@5V (Keyboard port) TOUCHPAD: 10mA@5V (Mouse port) USB: 50mA@5V (CPU port)

Product Weight

1 lb (0.45 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

200g (+/- 20g)

Switch / Key Travel

0.020 in

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40F to +149F (-40C to +65C) OPERATING: 32F to +140F (0C to +60C)

The iKey KYB-5K-MEM-TP-OEM Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the KYB-5K-MEM-TP-OEM is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the iKey KYB-5K-MEM-TP-OEM Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The iKey KYB-5K-MEM-TP-OEM Rugged Keyboard comes with a 90 Day Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey KYB-5K-MEM-TP-OEM Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey KYB-5K-MEM-TP-OEM Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey KYB-5K-MEM-TP-OEM Rugged Keyboard or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iKey KYB-5K-MEM-TP-OEM or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
