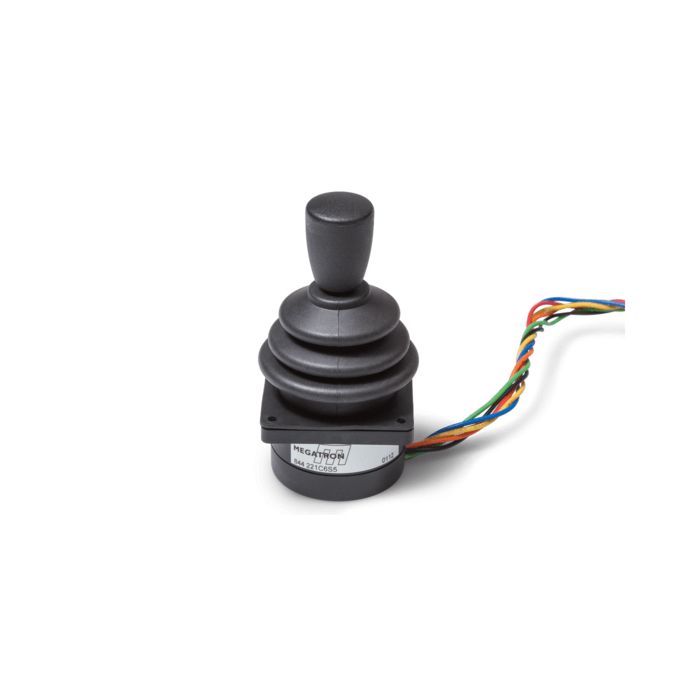

Megatron 844 Finger Joystick
Minimal installation depth, maximal robustness – joysticks of the 844 series do not require much space to guarantee long lifetime with their hall sensors. Additionally, many different handle designs and output options are available.
844 Features
- Analog Or Pulse-Width Modulated Signal Output
- Supply Voltages 5V Or 3,3V
- Small Installation Depth < 20Mm
Request a Quote
Product Type
Format
IP Rating
Manufacturer
Country Of Manufacture
Germany
Certifications
CE, RoHS compliant, Declaration of Conformity
Custom Options Products
Cable Type,Cable Length,Interface,Joystick Handle
Housing Colour
Black
Angle of Movement X-,Y-Axis
36 (+/-18 from center)
Axes
1 to 3
Current Consumption
<13 mA (2 axes) / <20 mA (3 axes)
EMC Immunity Level (V/M)
100 V/m 80 MHz - 2,7 GHz, 1kHz 80% sine wave modul., EN61000-4-3 (extended)
EMC Emissions Level
EN61000-6-3 CISPR 22:2005 Class B 30 MHz - 11 GHz
ESD
EN61000-4-2 (extended) +/-8 kV (20 contacts) & ï¾±15 kV (20 air discharges)
Interface / Connection
Analog, PWM
Angle of Movement Z-Axis
50 (+/-25 from center)
Operating Temperature
-25C to +70C
Output Impedance
Min. 10 kOhm, > 100 kOhm preferred
Protection Class
Up to IP65 above panel (depending on specifi handle)
Return Mechanism
Spring Return
Sensor
Hall Effect
Storage Temperature
-40C..+70C
Technology
Hall Effect
Vibration
100 Hz - 200 Hz @ 0,13 g2/Hz, total 3,6 g RMS 1h in each of three perp. Axe
Temperature Rating
Operating Temp -25C to +70C
The Megatron 844 Finger Joystick is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the 844 is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the Megatron 844 Finger Joystick across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Finger Joystick, Rugged Joystick fits your specific needs, please contact us.
The Megatron 844 Finger Joystick comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Megatron 844 Finger Joystick, must be presented to RUGGED in the United Kingdom.
For more information about the Megatron 844 Finger Joystick or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
