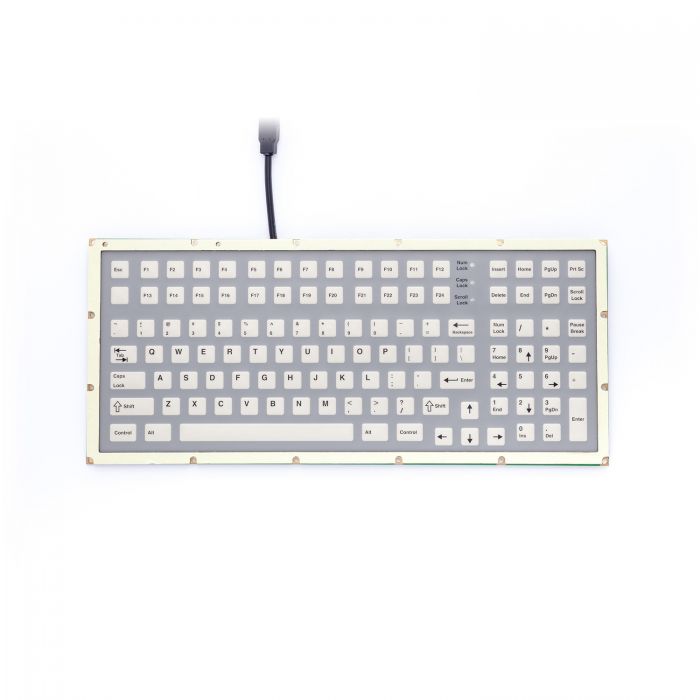

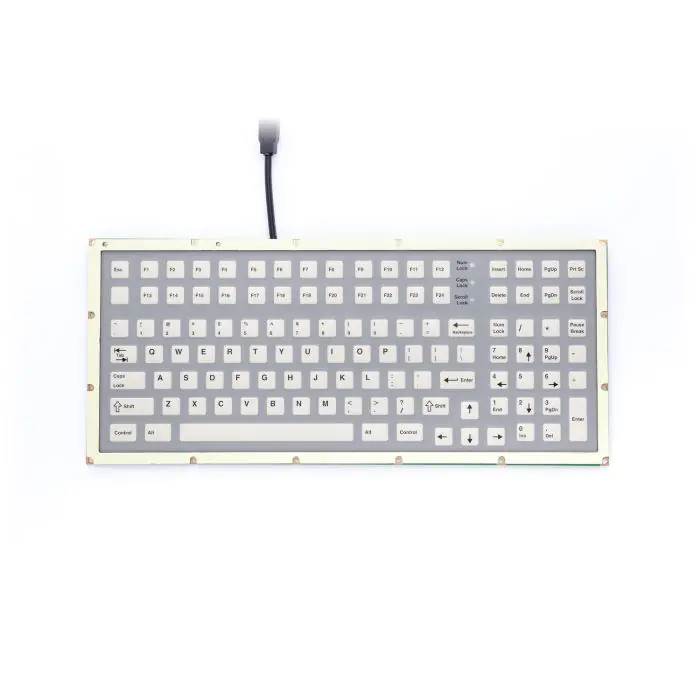

iKey MEM-114-OEM Rugged Keyboard

The MEM-114-OEM provides a rugged, cost-effective solution. It has a self-adhesive seal that offers watertight protection when installed.

Each kit is comprised of a membrane keypad, switch matrix board, keyboard controller and cables.

MEM-114-OEM Features

  • Rugged, Cost Effective Solution
  • OEM Kit: PCB, Rubber Overlay and Cable
  • USB, PS2 and AT/Serial Configurations Available
  • Customisation Available On Request
  • Various Keyboard and Language Layout Options
  • Single, Double and Multiple Keys
  • Coloured Keys (Option)

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

No Backlight

Case Material

No Case

Certifications

IP Rated, NEMA 4X UL60950, FCC Part 15 Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

15.0" x 6.25" x 0.75" (w-h-d) 381.0mm x 158.8mm x 19.1mm

Housing Colour

Black

Humidity

100% Humidity Resistant (when properly installed)

Auto Repeat Frequency / Delay

All keys, repeat frequency and delay time are programmable

Bounce Time

5 ms max

Cable

LENGTH: 10 feet (3 meters) DESIGN: "Y" PS/2, AT or Single-Cable USB Cable

Compatibility

PS/2: All Windows Operating Systems USB: All Windows and Macintosh OS

EMI

EN55022, FCCPart 15 Subpart B Class A

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

24 Keys

Guide Frame

Polystrol

Impact Stability

10 N, 1 min

Key Feedback

Tactile with Mechanical Snap

Key Material

Membrane

Key Spacing

19 mm

Key Switch

MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 ACTUATION FORCE: 200g (+/- 20g) FEEDBACK: Tactile with Mechanical Snap

LED Indicators

Caps lock; Scroll lock; Num lock; Accept LED for MSR and/or user controlled

Lifespan

>3 Million Actuations

No. Of Keys

114

Operating Force

0.6 N

Pointing Device

No Pointer

Power

KEYBOARD: 5V@ 10 ma (from CPU port)

Product Weight

3 lbs (1.38 kg)

Programmable

Programmable

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Spring Elements

Elastomer

Switch Force

200g (+/- 20g)

Switch / Key Travel

0.055 in (1.4mm)

Switching membrane

Polyester

Temperature Range

STORAGE: -40C to +60C OPERATING: 0C to +50Cï¾ - AIR Presure 700 hPa to 1060 hPa, Climatic class DIN-IEC 68, part 1, appendix A

Tone Indicator

Keyclick and sound via command or UPOS

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)

The iKey MEM-114-OEM Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the MEM-114-OEM is commonly used:

Industrial and Manufacturing

These examples highlight the versatility of the iKey MEM-114-OEM Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The iKey MEM-114-OEM Rugged Keyboard comes with a 90 Day Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey MEM-114-OEM Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey MEM-114-OEM Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
