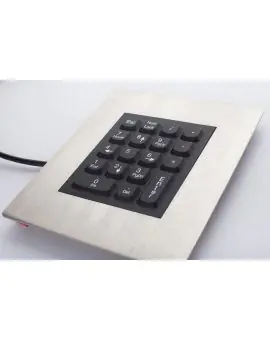

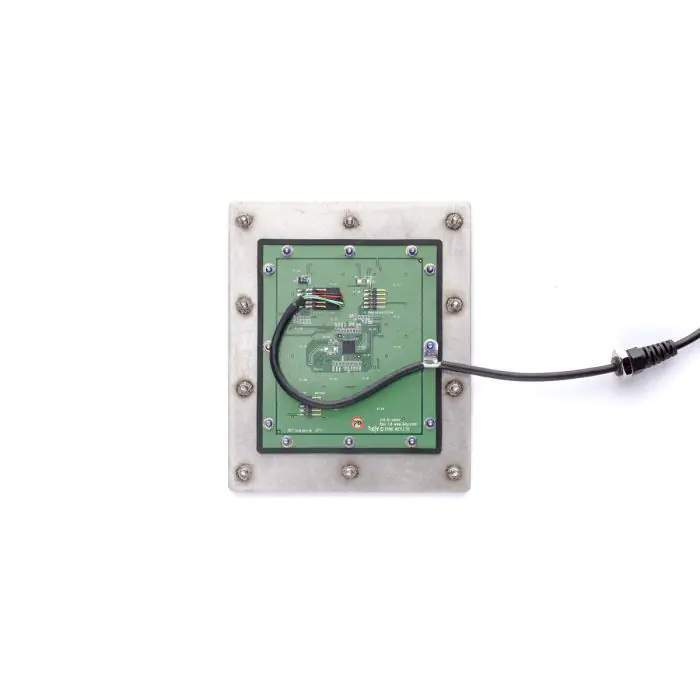

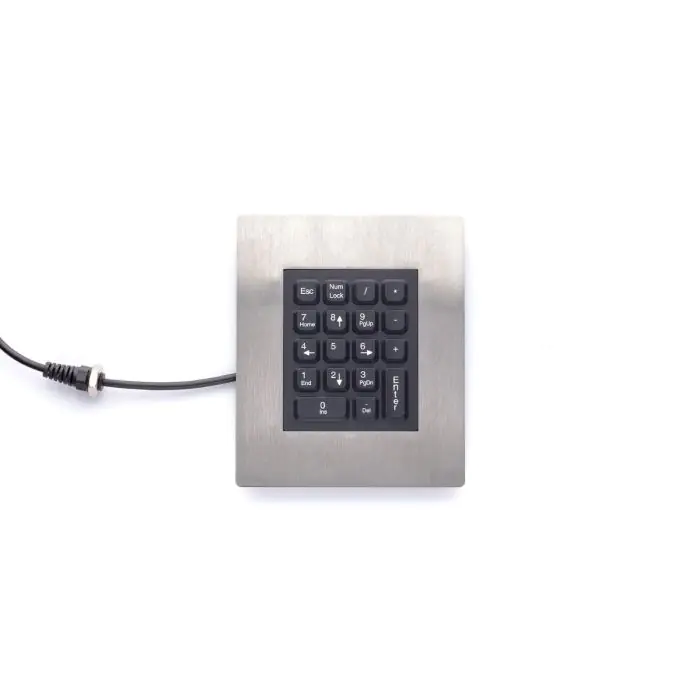

iKey PM-18 Panel Mount Rugged Keyboard

The PM-18 is an 18-key numeric pad that is protected in a stainless steel case and is easily integrated into any system. When properly sealed, the PM-18 is engineered to meet NEMA 4X specifications. It features navigation keys and the secondary legend can be accessed by pressing the NumLock key. It is also possible to cascade a secondary keyboard if necessary.

PM-18 Features

  • Rugged Stainless Steel Bezel
  • Numlock Key For Secondary Keyboard
  • Resists Corrosion
  • USB, PS2 and AT/Serial Configurations Available
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

No Backlight

Case Material

No Case

Certifications

IP Rated, NEMA 4X, CE UL60950, FCC Part 15 Class B

Custom Options Products

Cable Type,Cable Length,Interface

Dimensions

5.85" x 7.05" x 0.20" (w-h-d) 148.6mm 179.1mm x 5.1mm SCREWS: 0.50" (12.7mm) CUTOUT: 4.50" x 5.30" (w-h) 114.3mm x 134.6mm

Extended Warranty

Available On Request

Humidity

100% Humidity Resistant (when properly installed)

Cable

LENGTH: 10 feet (3 meters) DESIGN: PS/2 or AT Cable

Compatibility

PS/2 KEYBOARD: All Windows Operating Systems USB KEYBOARD: All Windows and Macintosh OS

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

12 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 4.74 oz. +/- 1.06 oz. (135g +/- 30g) FEEDBACK: Tactile with Mechanical Snap

Lifespan

>10 Million Actuations

No. Of Keys

18

Pointing Device

No Pointer

Power

PS/2: 50mA@5V (from Keyboard port) USB: 50mA@5V (from CPU port)

Product Weight

1.00 lbs +/- 0.10 lbs (0.92 kg +/- 0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

135g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to 70C (-40F to +158F)

The iKey PM-18 Panel Mount Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the PM-18 is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the iKey PM-18 Panel Mount Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The iKey PM-18 Panel Mount Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey PM-18 Panel Mount Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey PM-18 Panel Mount Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey PM-18 Panel Mount Rugged Keyboard or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iKey PM-18 or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
